Besides automatic synchronisations, you can also manually synchronize the battery
monitor, when you are sure that your battery is fully charged. This can be accomplished
by pressing both left and right arrow keys simultaneously for three seconds. After these
three seconds, the SoC value will be reset to 100%.
For people who prefer to use the older auto synchronization method of the Expert Pro and Lite
models, there is an Advanced function setting (A01) available that can be set to 'Legacy' mode. After
it has been set to Legacy mode, all needed auto synchronization parameters will show up in the
Advanced properties list to modify if desired. See chapter 6.8 for more information.

4. STATUS MENU

The Status menu is a read only menu that shows the current status of a number of Expert Modular

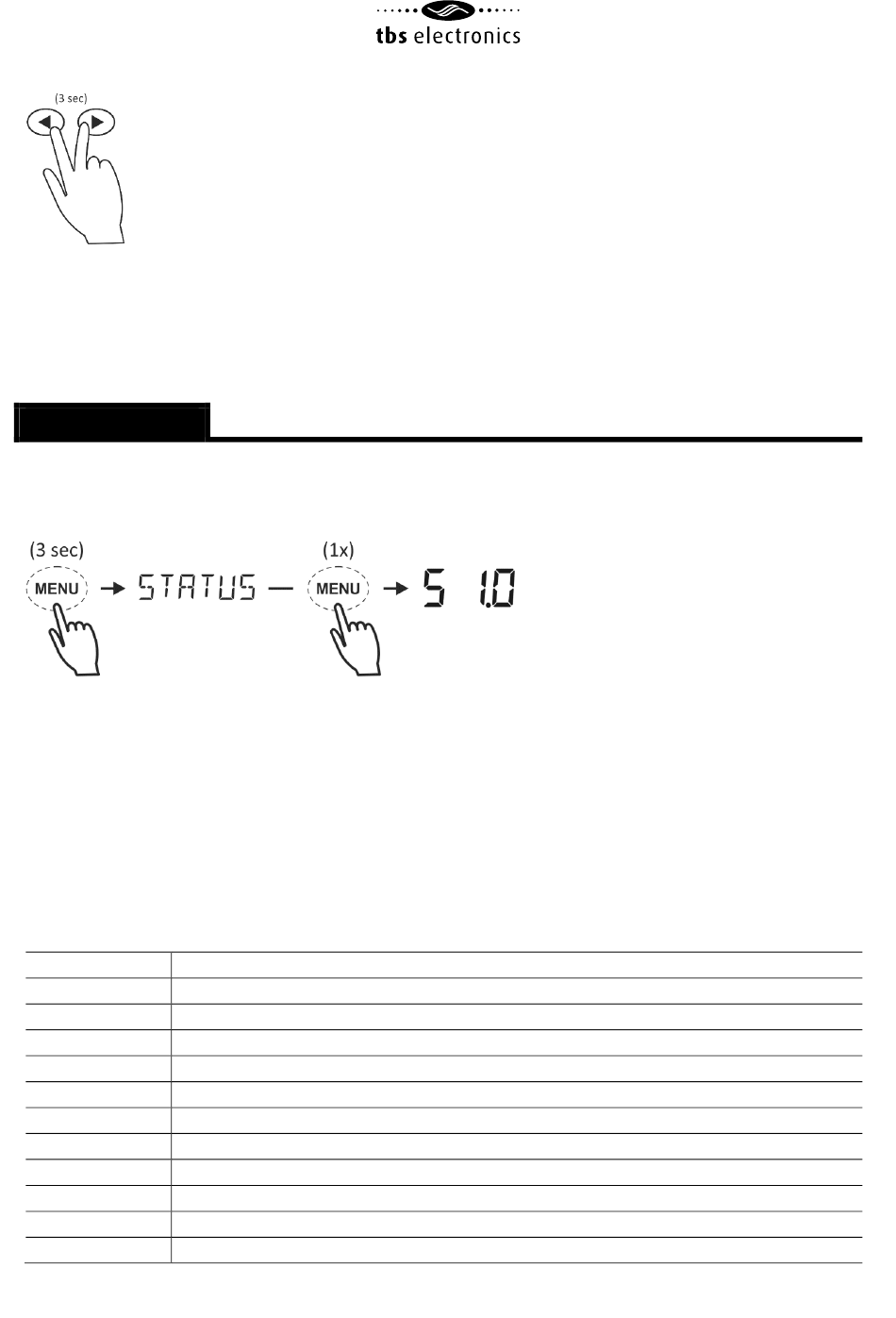

items. This menu can be accessed by the following sequence:
When the Status menu is entered, you can use the left and right arrow keys to browse through the
different status items. By pressing the MENU key, the selected status item can be viewed. Pressing
the MENU key again, will step back to the Status menu. From any menu position, the normal
operating mode can be accessed again by pressing the MENU key for 3 seconds. The Expert Modular
will also jump back to the normal operating mode automatically after 30 seconds, when no keys are
pressed during this time.
The following Status menu items are available:
Table 5
Status item Status description
S 1.0 Name. Shows the name of this product.
S 1.1 Firmware version. Shows the firmware version of this product.
S 1.2 Hardware version. Shows the hardware version of this product.
S 1.3 Serial number. Shows the serial number of this product.
S 2.0 Alarm 1. Indicates if Alarm 1 is active.
S 2.1 Alarm 2. Indicates if Alarm 2 is active.
S 2.2 Alarm 3. Indicates if Alarm 3 is active.
S 2.3 Alarm 4. Indicates if Alarm 4 is active.
S 3.0 State of Health (SoH). Shows the SoH of your battery system.
S 3.1 Midpoint voltage. Shows the present midpoint voltage value.
S 3.2 Midpoint deviation. Shows the present midpoint deviation percentage
