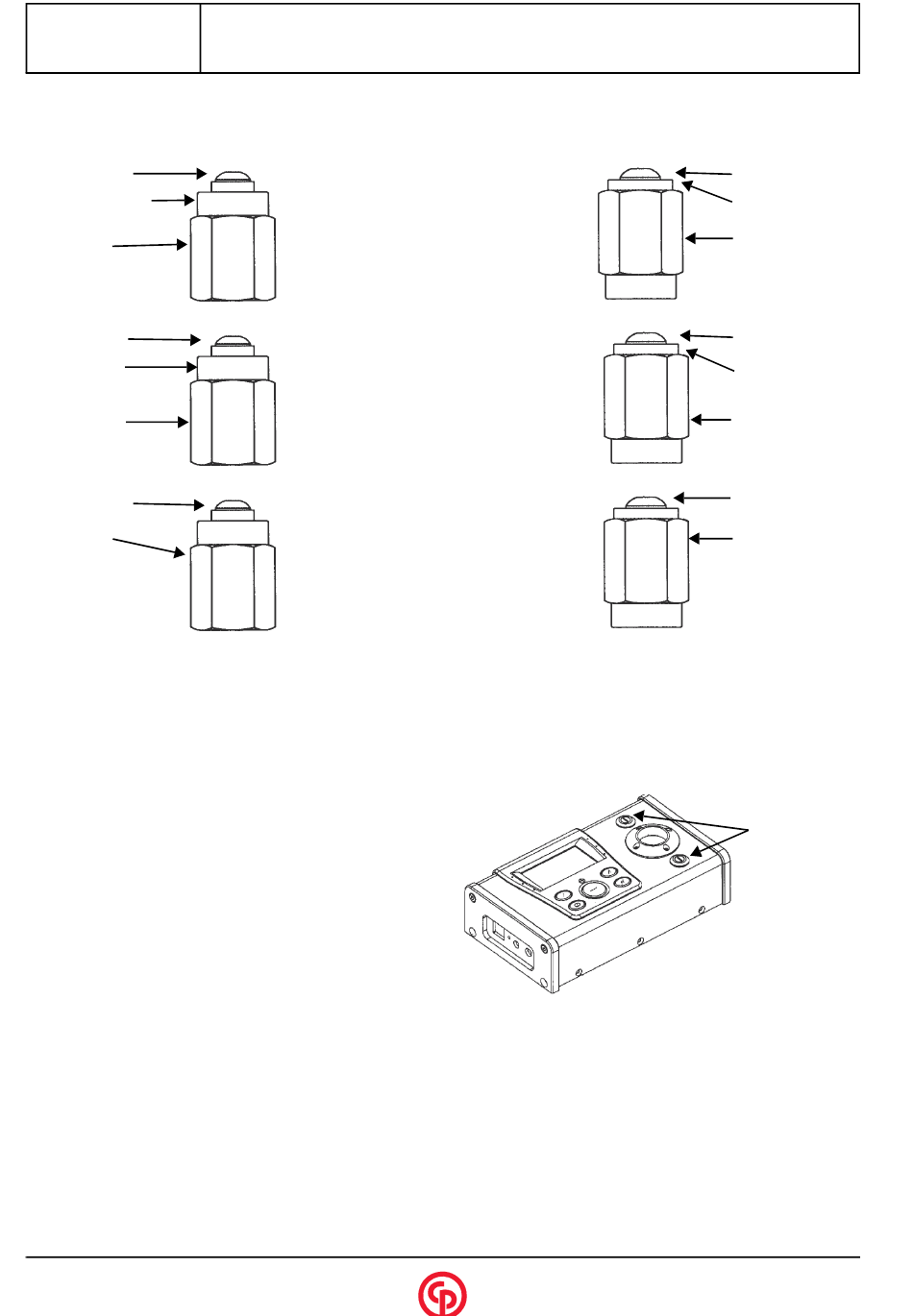

American threads (Tap "A")
Phillips screw
Neoprene washer
Run down
adapter
Phillips screw
Splitlock
washer
Run down
adapter
Phillips screw
Run down
adapter
Note: change screws when thread wear occurs. (Recommended - approximately every 25 run downs).

4 - MOUNTING

It is recommend securing the analyzer to a workbench before
operating. Immobilizing the analyzer is critical for the safety of
the operator as well as for the accuracy of torque measurements
during operation.
Mounting the unit to a fixed surface offers the most secure way
to immobilize the analyzer, and is recommended when used at
a permanent location. It employs two spring loaded mounting
screws from the unit into the mounting surface.
Note: remember that a loose analyzer during utilization can impact the validity of torque readings. Always make sure the unit is
secure before operating, as repeated usage may loosen the screws.
To simulate a "soft" to "medium" joint
use the appropriate size Neoprene
rubber washer with a screw.
To simulate a "medium" joint use the
appropriate size Splitlock washer with
a screw.
To simulate a "hard" joint use the
appropriate screw without a washer.
Metric threads (Tap "B")
Phillips screw
Neoprene washer
Run down
adapter
Phillips screw
Splitlock
washer
Run down
adapter
Phillips screw
Run down
adapter
Loosen both
black caps to
access mounting
screw.
