14 - POWER TOOL TESTING

The run down adapters (RDAs) are designed to provide consistent and reliable torque readings for use with power driven torque
control tools. The RDAs reduce the impact and irregular peaks that cause poor repeatability. Each RDA has an effective torque
range and will supply repeatable torque data within that range if used correctly.
Always use a quality joint rate simulator (run down adapter) when testing power tools in a simulated application. Use the Peak
mode.The Peak mode is designed to meet the demanding frequency requirements for testing dynamic torque applications.
ALPHA Digital Torque Tester - Run down adapters
The Alpha Digital Torque Tester includes a 1/4 Female Hex Square Drive Adapter as well as
four run down adapters that slide into the socket. The run down adapter allows you to use a
screw to simulate a joint.
For replacing any of the run down adapters or the 1/4 Female Hex Square Drive Adapter:
Model
RDAs and adapter kit*
(for ALPHA Digital Torque Tester)
*Kit includes: 1/4 Female Hex Square Drive Adapter and four run down adapters.
(See page 3 for the different kind of RDAs)
Operation
1 The run down adapter is placed in-line between the tool drive and transducer of the torque tester.
2 The torque tester should be properly secured on a solid surface or a test bench.
3 Before each test run, the fastener should be completely backed-up.
4 The RDA is designed to run in clockwise direction only.
5 Apply torque until the fastener is run down completely. Then note or save reading with the torque tester
(See page 4 for different joint simulations)

15 - ACCESSORIES

Model
Battery charger (for ALPHA Digital Torque Tester)
Battery pack (for ALPHA Digital Torque Tester)
RDAs and adapter kit (for ALPHA Digital Torque Tester)
Mounting hole caps
RS 232 cable
Power cable and plug - UK
Power cable and plug - USA
Power cable and plug - European
Item #
6159360330
Item #
6159360310
6159360320
6159360330
6159360340
6159360350
396843
459323
396853
6159932830-02
English
11 / 124

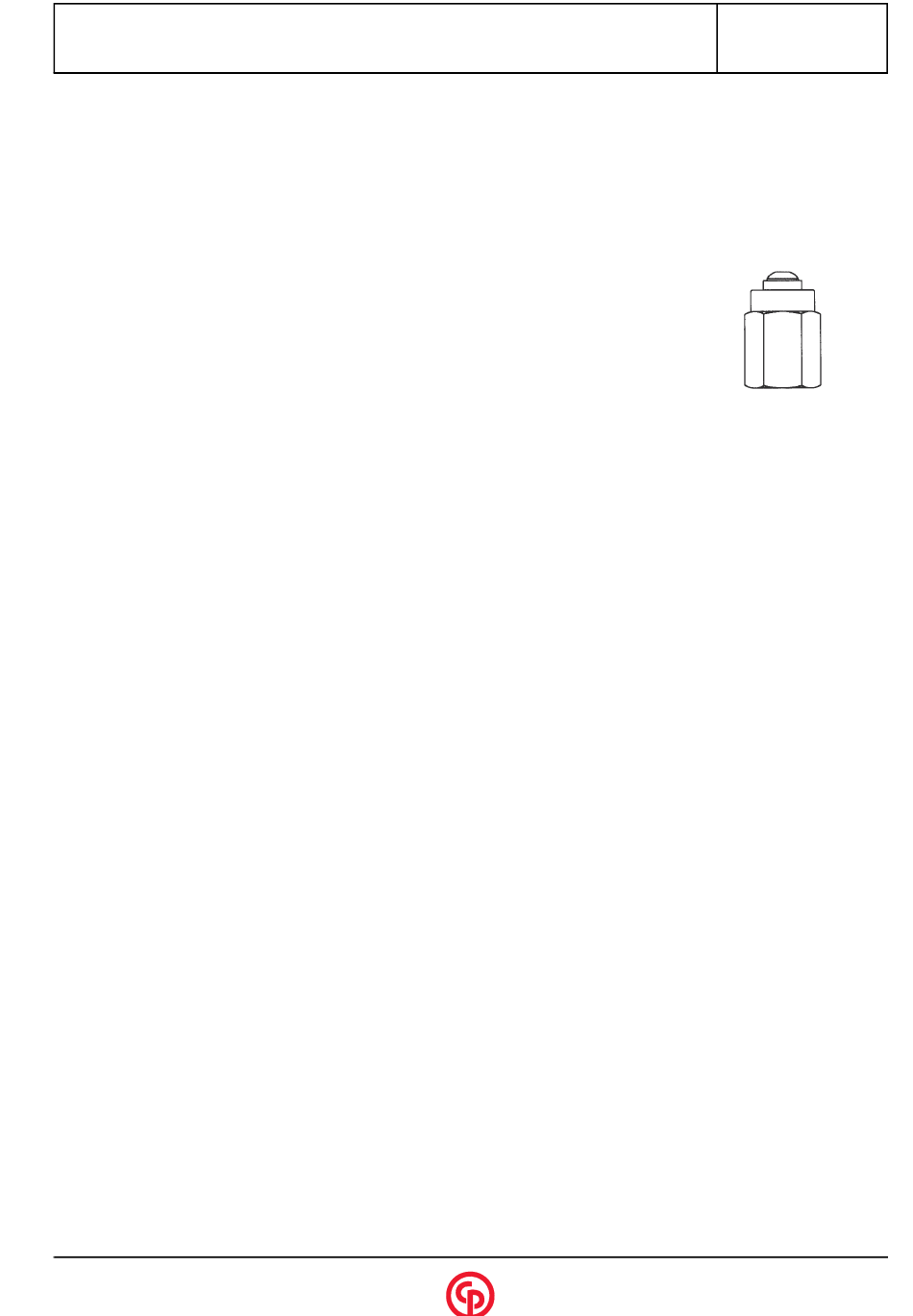

Run down adapters
