2.4 Installation of CPU Fan and Heatsink
This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin
CPUs. Please adopt the type of heatsink and cooling fan compliant with Intel 1155-
Pin CPU to dissipate heat. Before you install the heatsink, you need to spray ther-
mal interface material between the CPU and the heatsink to improve heat dissipa-
tion. Ensure that the CPU and the heatsink are securely fastened and in good con-
tact with each other. Then connect the CPU fan to the CPU_FAN connector (CPU_
FAN1, see page 2, No. 4 or CPU_FAN2, see page 2, No. 5).
For proper installation, please kindly refer to the instruction manuals of your
CPU fan and heatsink.

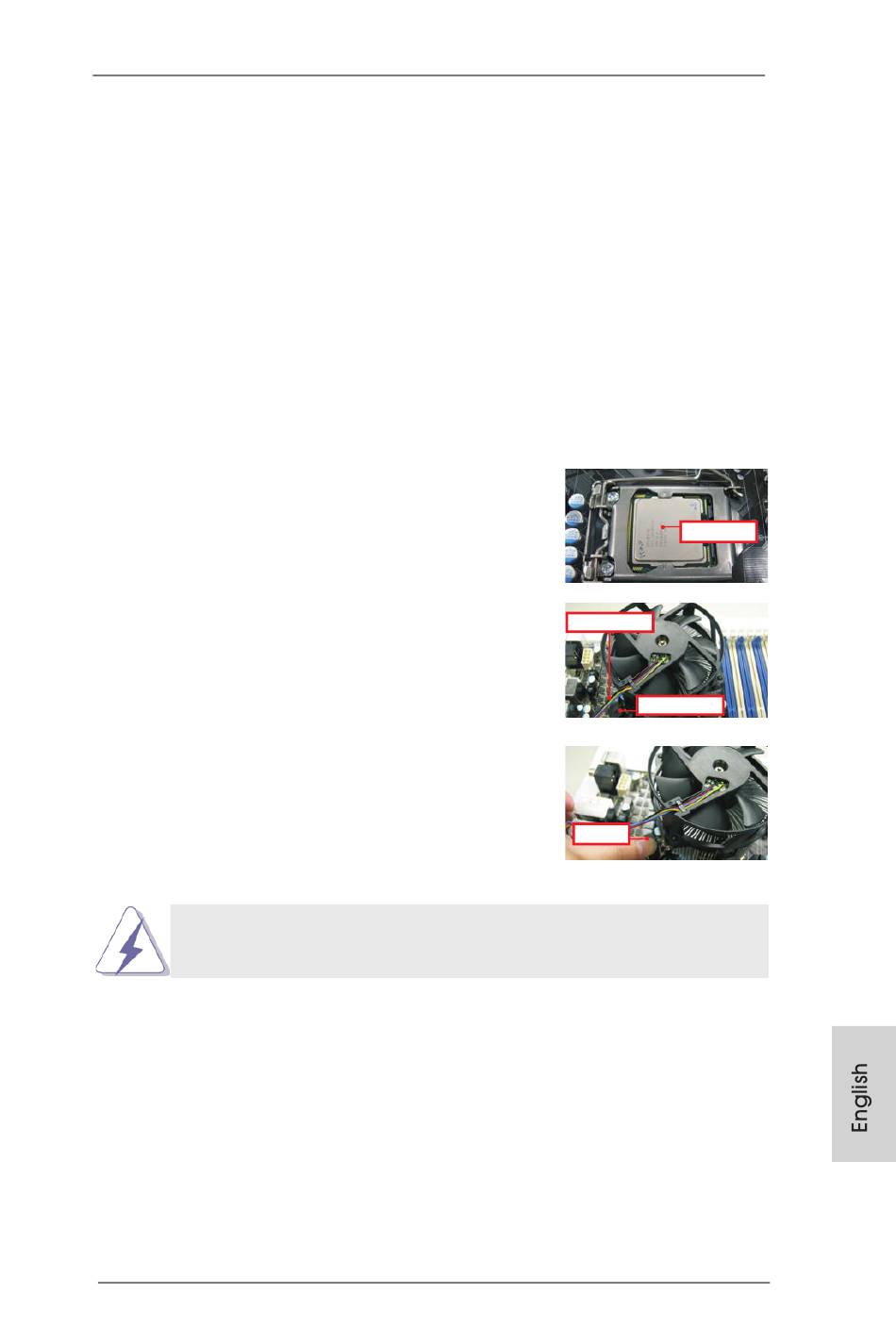

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPUs.
Step 1.
Apply thermal interface material onto the cen-
ter of the IHS on the socket's surface. ASRock
provides the free bundle GELID GC-Extreme
Thermal Compound in the accessory pack.
Step 2.
Place the heatsink onto the socket. Ensure
that the fan cables are oriented on side closest
to the CPU fan connector on the motherboard
(CPU_FAN1, see page 2, No. 4 or CPU_
FAN2, see page 2, No. 5).
Step 3.
Align fasteners with the motherboard through-
holes.
Step 4.
Rotate the fastener clockwise, then press
down on fastener caps with thumb to install
and lock. Repeat with remaining fasteners.
If you press down the fasteners without rotating them clockwise, the
heatsink cannot be secured on the motherboard.
Step 5.
Connect fan header with the CPU fan connector on the motherboard.
Step 6.
Secure redundant cable with tie-wrap to ensure the cable does not
interfere with fan operation or contact other components.
ASRock Z77 OC Formula Motherboard
Apply Thermal
Interface Material
Fan cables on side
closest to MB header
Fastener slots
pointing straight out
Press Down
(4 Places)
