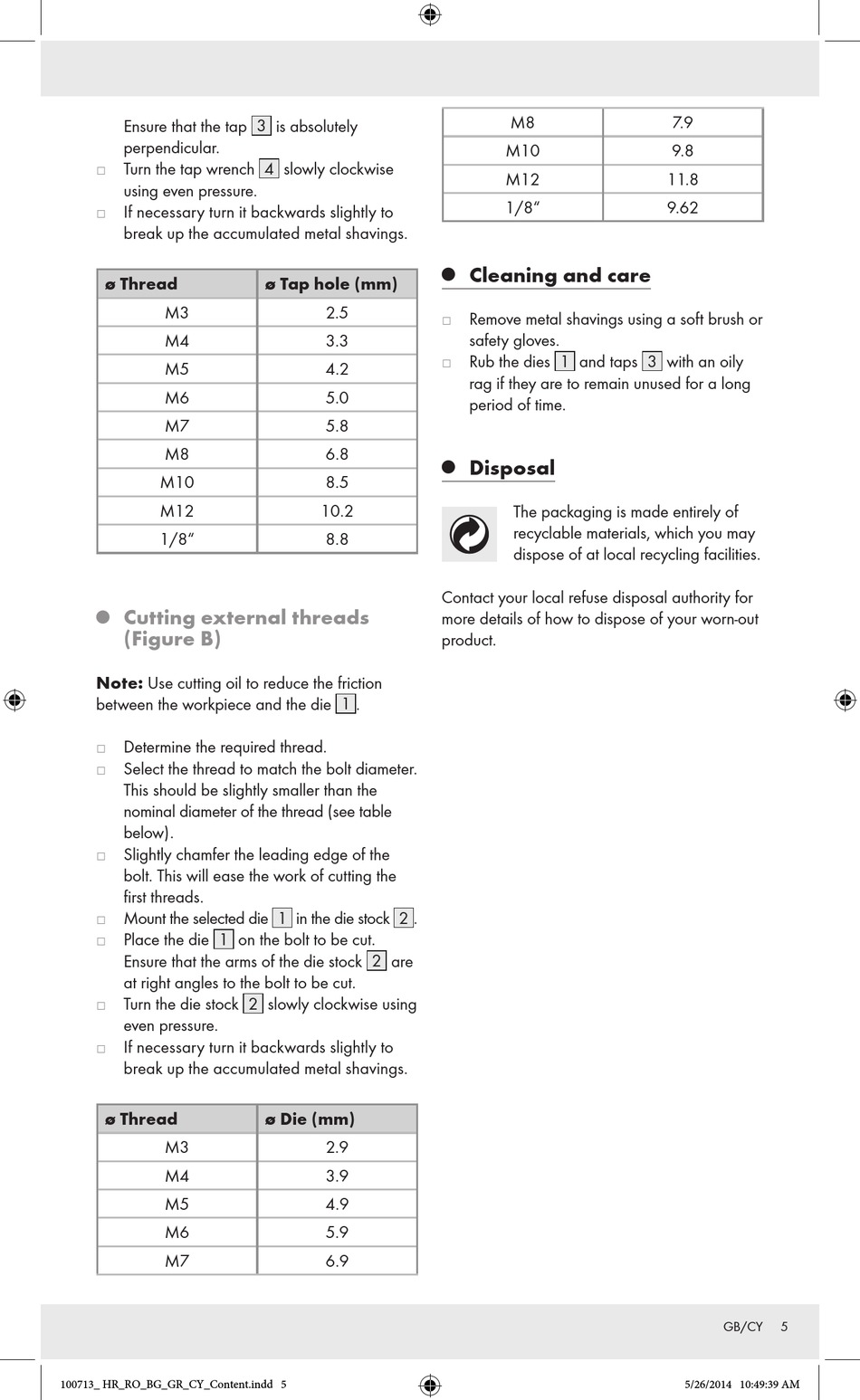

Ensure that the tap 3 is absolutely
perpendicular.
Turn the tap wrench 4 slowly clockwise
j
using even pressure.
j If necessary turn it backwards slightly to
break up the accumulated metal shavings.
ø Thread
M3
M4
M5
M6
M7
M8
M10
M12
1/8"
Cutting external threads
Q
(Figure B)
Note: Use cutting oil to reduce the friction
between the workpiece and the die 1 .
Determine the required thread.
j
j Select the thread to match the bolt diameter.
This should be slightly smaller than the
nominal diameter of the thread (see table
below).
Slightly chamfer the leading edge of the
j
bolt. This will ease the work of cutting the
first threads.
Mount the selected die 1 in the die stock 2 .
j
j Place the die 1 on the bolt to be cut.
Ensure that the arms of the die stock 2 are
at right angles to the bolt to be cut.
j Turn the die stock 2 slowly clockwise using
even pressure.
If necessary turn it backwards slightly to
j
break up the accumulated metal shavings.
ø Thread
M3
M4
M5
M6
M7
100713_ HR_RO_BG_GR_CY_Content.indd 5
ø Tap hole (mm)
2.5
3.3
4.2
5.0
5.8
6.8
8.5
10.2
8.8
ø Die (mm)
2.9
3.9
4.9
5.9
6.9
M8
M10
M12
1/8"
Cleaning and care
Q
j Remove metal shavings using a soft brush or
safety gloves.
Rub the dies 1 and taps 3 with an oily
j
rag if they are to remain unused for a long
period of time.
Disposal
Q
The packaging is made entirely of
recyclable materials, which you may
dispose of at local recycling facilities.
Contact your local refuse disposal authority for
more details of how to dispose of your worn-out
product.
7.9
9.8
11.8
9.62
GB/CY 5
