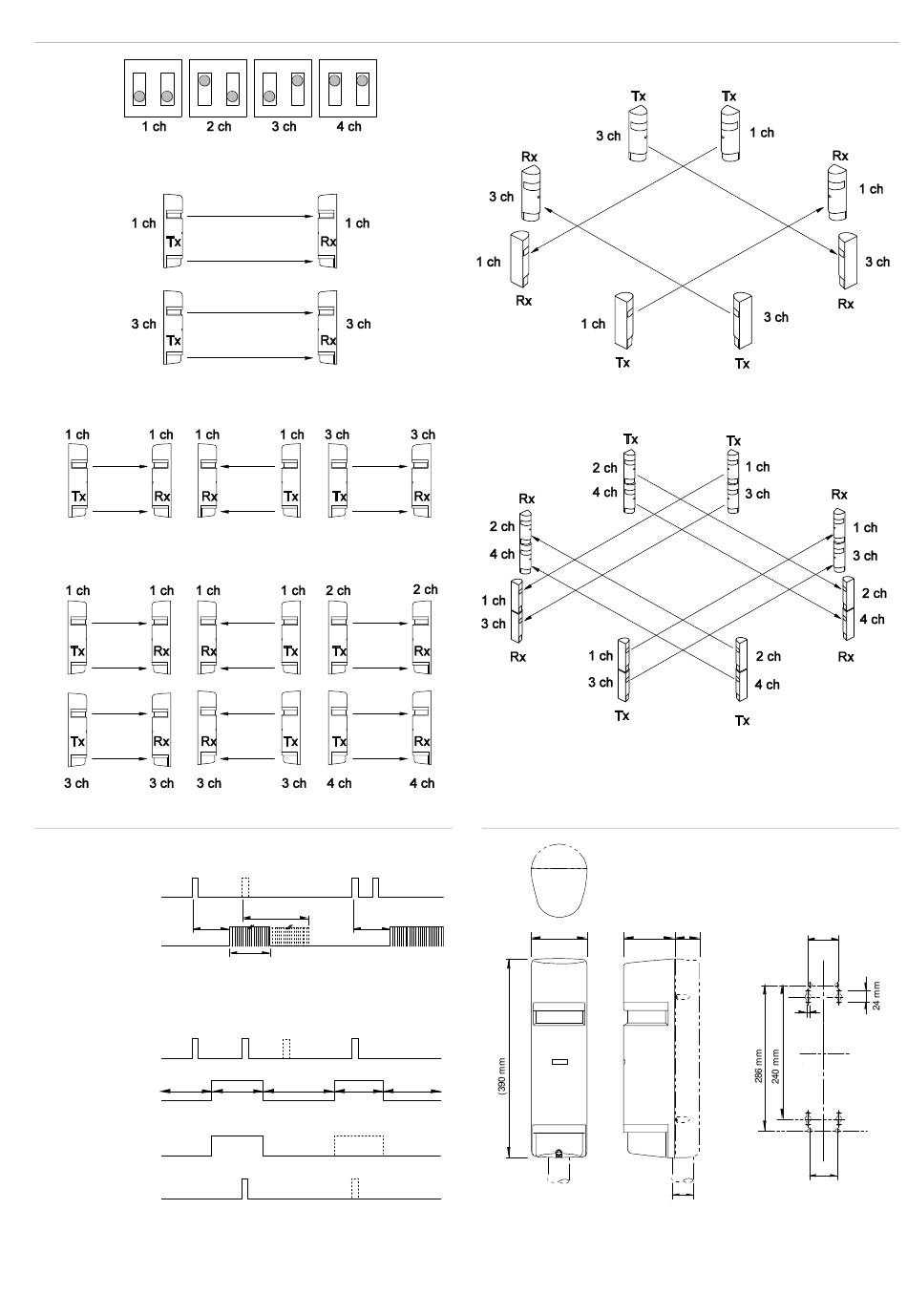

Interlogix PB601 Installationsanleitung Seite 5

21
1: Line protection
2: 2-stacked protection
3: Line and 2-stacked protection
22
A. Auto-res et
1. Alarm output
5 min.
2. Memory LED
B. Manual
1. Alarm output
3. Alarm memory
Short
input
2. Memory LED
4. Beep sound at
beam interruption
(Alignment tone ON)
P/N 1077839 • REV C • ISS 19MAR19
60 min. (re-trigger)
5 min.
55 min. (flickering)
Short
Open Open
4: Perimeter protection
5: Perimeter 2-stacked protection
23
104 mm
Short
47 mm
98 mm
4.2 mm
Ø 38mm - 45mm
60 mm
53 mm
5 / 44
