operation manual

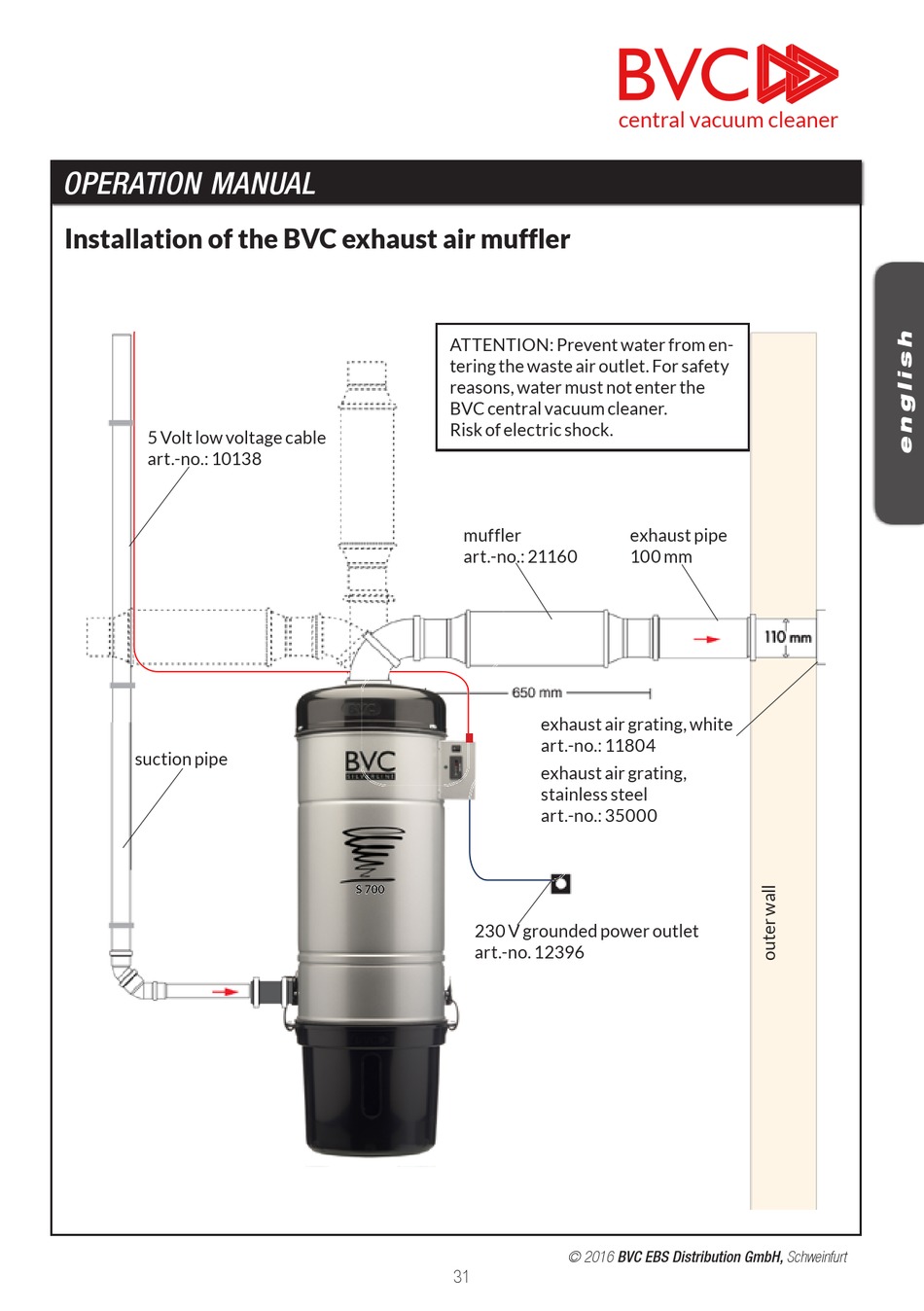

Installation of the BVC exhaust air muffler
5 Volt low voltage cable
art.-no.: 10138
suction pipe
ATTENTION: Prevent water from en-
tering the waste air outlet. For safety
reasons, water must not enter the
BVC central vacuum cleaner.
Risk of electric shock.
muffler
art.-no.: 21160
S 700
230 V grounded power outlet
art.-no. 12396
31
central vacuum cleaner
exhaust pipe
100 mm
exhaust air grating, white
art.-no.: 11804
exhaust air grating,
stainless steel
art.-no.: 35000
