Elektro-Installation des BVC/EBS-Zentralstaubsaugers ..............Seite 8 Elektroanschluss ............................. Seite 8 Anweisung zur Erdung ........................... Montage Seite 9 Montage des BVC/EBS-Zentralstaubsaugers an die Wand ............Seite 10 Installation des BVC-Abluftschalldämpfers ..................Seite 11 Anschlussschema des Niedervoltkabels ..................Fehlersuche Seite 12 ..........................
Kundendienst oder einer ähnlich qualifizierten Person ersetzt werden, um Gefährdungen zu vermeiden. Ziehen oder tragen Sie den BVC/EBS-Zentralstaubsauger nicht am Netzkabel. Das Netzkabel darf nicht als Handgriff benutzt werden. Auch darf das Kabel nicht über scharfe Kanten oder Ecken gezogen werden! Vermeiden Sie es, den Stecker am Kabel aus der Steckdose zu ziehen.
Stromversorgung Elektro-Installation des BVC/EBS-Zentralstaubsaugers Der BVC/EBS-Zentralstaubsauger wird ca. 130 cm über dem Boden mit der Wand halterung (in die das Gerät eingehängt wird) an der Wand befestigt, so dass der Schmutz behälter bequem entfernt werden kann. Für eine ausreichende Motorküh- lung müssen mindestens 20 cm Abstand zwischen Gerät und Decke gegeben sein.
E D I E N U N G S A N LE ITU N G Die Montage des BVC/EBS-Zentralstaubsaugers an die Wand Der BVC/EBS-Zentralstaubsauger wird mit der im Lieferumfang enthaltenen Wandhalterung (in die das Gerät ein- gehängt wird) ca. 50-80 cm über dem Boden an der Wand befestigt, so dass der Schmutzbehälter bequem entfernt...
Saugdose, indem sie den Deckel mehrmals kurz öffnen („pumpen“). Verfahren Sie gegebenenfalls so an allen weiteren Dosen, bis das Problem gelöst ist. Für die jeweilige Test phase sollte der BVC/EBS-Zentralstaubsauger nicht länger als jeweils ca. 2-3 Minuten im verdichteten Zustand (alle Steckdosen sind geschlossen) eingeschaltet bleiben, um eine unnötige Motorüberlastung zu vermeiden.
E D I E N U N G S A N LE ITU N G GARANTIE-KARTE Die Garantie auf den Motor und die Platine des BVC/EBS-Einbaustaubsaugers beträgt 500 Std. bzw. max. 2 Jahre. Für Gehäuse und alle übrigen Teile gewähren wir eine Garantie von 2 Jahren.
Seite 14

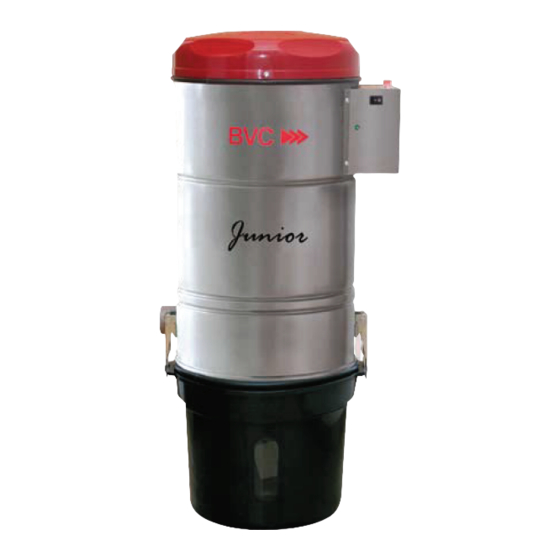

PERATING AND AINTENANCE NSTRUCTION ANUAL The new innovative technology of the BVC 100 mm dia connection for exhaust opening knuckle bend and/or muffler on/off switch electronic black box suction-type regulator sturdy fixing clamps for dust container motor protection filter removable filter bag pro-...
BVC unit. • The inlet valve on the BVC unit starts with pushing the on/off switch of the BVC. All other inlet valves start automa- tically when the hose is plugged in, through the lowvoltage electrical impulse.
Seite 19
PERATING AND AINTENANCE NSTRUCTION ANUAL The BVC mounting set with silent blocks for sound absorption The central vacuum cleaner is mounted to the wall at the height of 50 to 80 cm above the floor so that the dust container can be removed easily.
Seite 20
PERATING AND AINTENANCE NSTRUCTION ANUAL Installation of the BVC exhaust air muffler ATTENTION: Water must not get in- to the waste air outlet in the ounter wall. For safety reasons water must be prevented from entering the room where the motor is. A life-...
Seite 22
If the method does not help, proceed to point 7. 7. Insert a cleaning worm into the tube system and push out the object clogging the tube. 8. If none of these methods works, contact BVC. We will help you to solve the problem. The motor does not start If the small green lamp is on, the power supply is all right.
Seite 23
ANUAL Waranty Card On this account we ensure you on our BVC central vacuum cleaners and the integrated electronic an unconditionally guarantee period from at least 500 operating hours or max. 2 years. The housing and all the other parts are guaranteed for 2 years.
