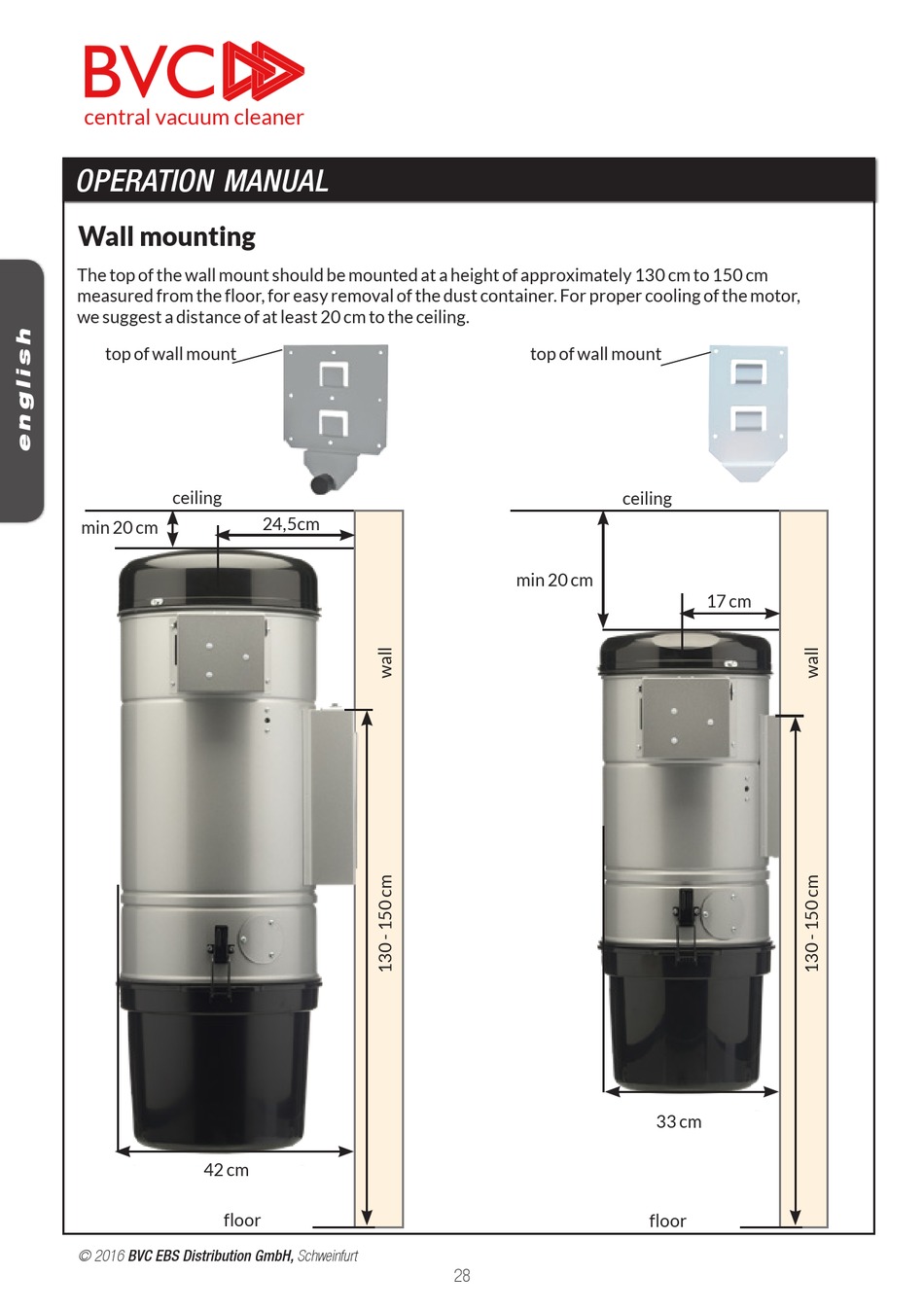

Wall mounting

The top of the wall mount should be mounted at a height of approximately 130 cm to 150 cm
measured from the floor, for easy removal of the dust container. For proper cooling of the motor,
we suggest a distance of at least 20 cm to the ceiling.
top of wall mount
ceiling
min 20 cm
42 cm
floor
© 2016 BVC EBS Distribution GmbH, Schweinfurt
24,5cm
top of wall mount
ceiling
min 20 cm
28
17 cm
33 cm
floor
