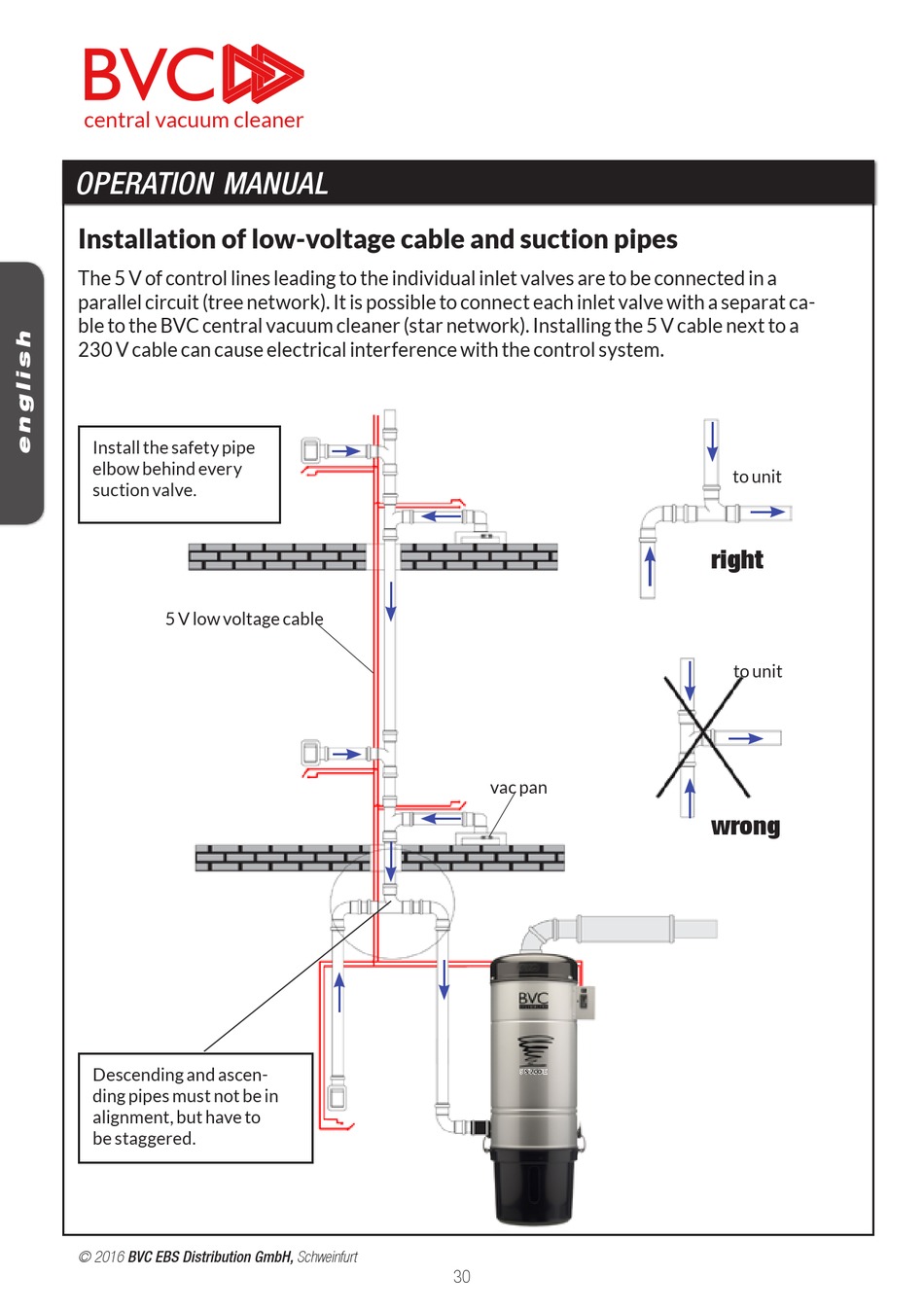

Installation of low-voltage cable and suction pipes
The 5 V of control lines leading to the individual inlet valves are to be connected in a
parallel circuit (tree network). It is possible to connect each inlet valve with a separat ca-
ble to the BVC central vacuum cleaner (star network). Installing the 5 V cable next to a
230 V cable can cause electrical interference with the control system.
Install the safety pipe
elbow behind every
suction valve.
5 V low voltage cable
Descending and ascen-
ding pipes must not be in
alignment, but have to
be staggered.
© 2016 BVC EBS Distribution GmbH, Schweinfurt
vac pan
S 700 DE S 700
30
to unit
right
to unit
wrong
