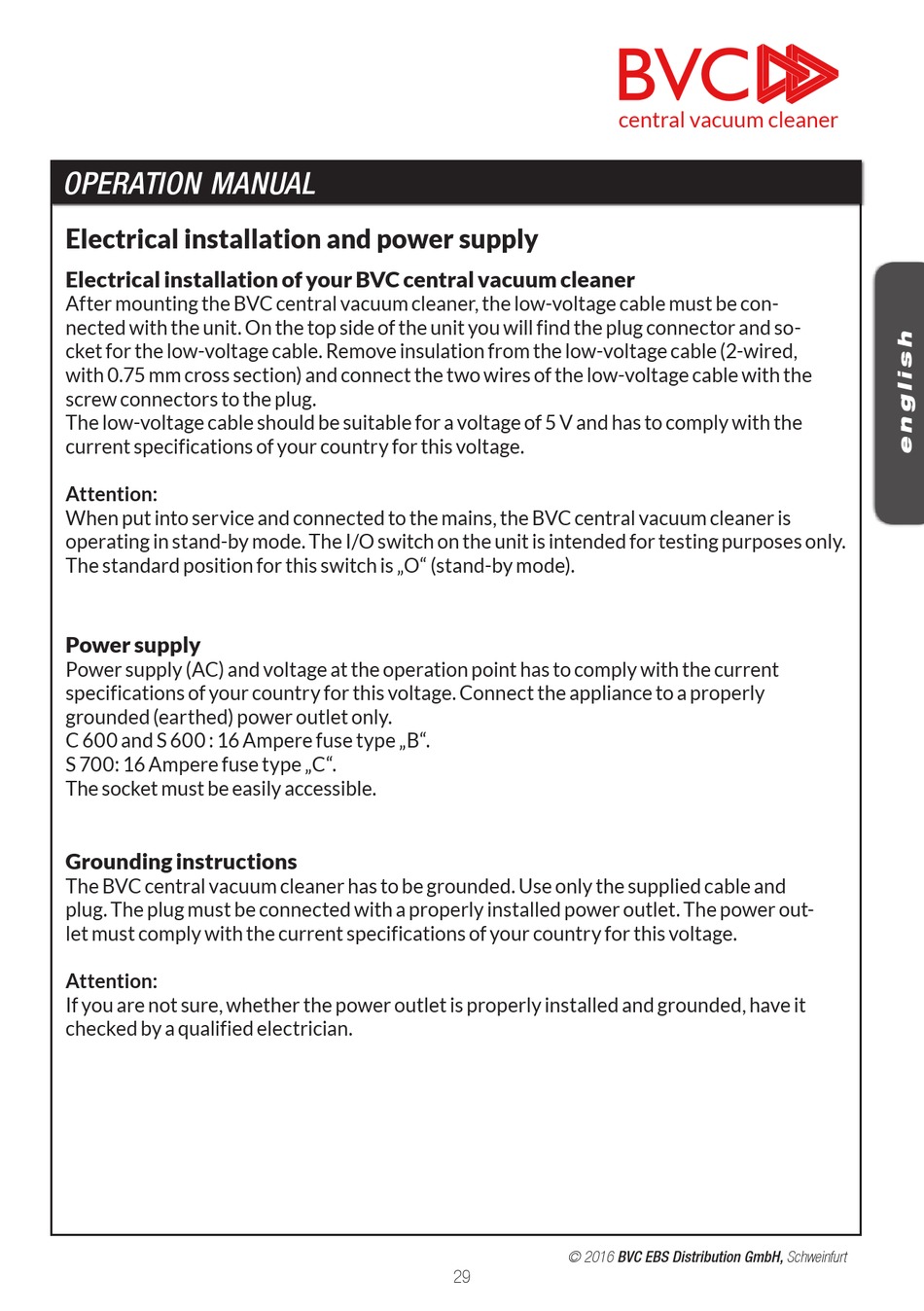

central vacuum cleaner
operation manual
Electrical installation and power supply
Electrical installation of your BVC central vacuum cleaner
After mounting the BVC central vacuum cleaner, the low-voltage cable must be con-
nected with the unit. On the top side of the unit you will find the plug connector and so-
cket for the low-voltage cable. Remove insulation from the low-voltage cable (2-wired,
with 0.75 mm cross section) and connect the two wires of the low-voltage cable with the
screw connectors to the plug.
The low-voltage cable should be suitable for a voltage of 5 V and has to comply with the
current specifications of your country for this voltage.
Attention:
When put into service and connected to the mains, the BVC central vacuum cleaner is
operating in stand-by mode. The I/O switch on the unit is intended for testing purposes only.
The standard position for this switch is „O" (stand-by mode).
Power supply
Power supply (AC) and voltage at the operation point has to comply with the current
specifications of your country for this voltage. Connect the appliance to a properly
grounded (earthed) power outlet only.
C 600 and S 600 : 16 Ampere fuse type „B".
S 700: 16 Ampere fuse type „C".
The socket must be easily accessible.

Grounding instructions

The BVC central vacuum cleaner has to be grounded. Use only the supplied cable and
plug. The plug must be connected with a properly installed power outlet. The power out-
let must comply with the current specifications of your country for this voltage.
Attention:
If you are not sure, whether the power outlet is properly installed and grounded, have it
checked by a qualified electrician.
