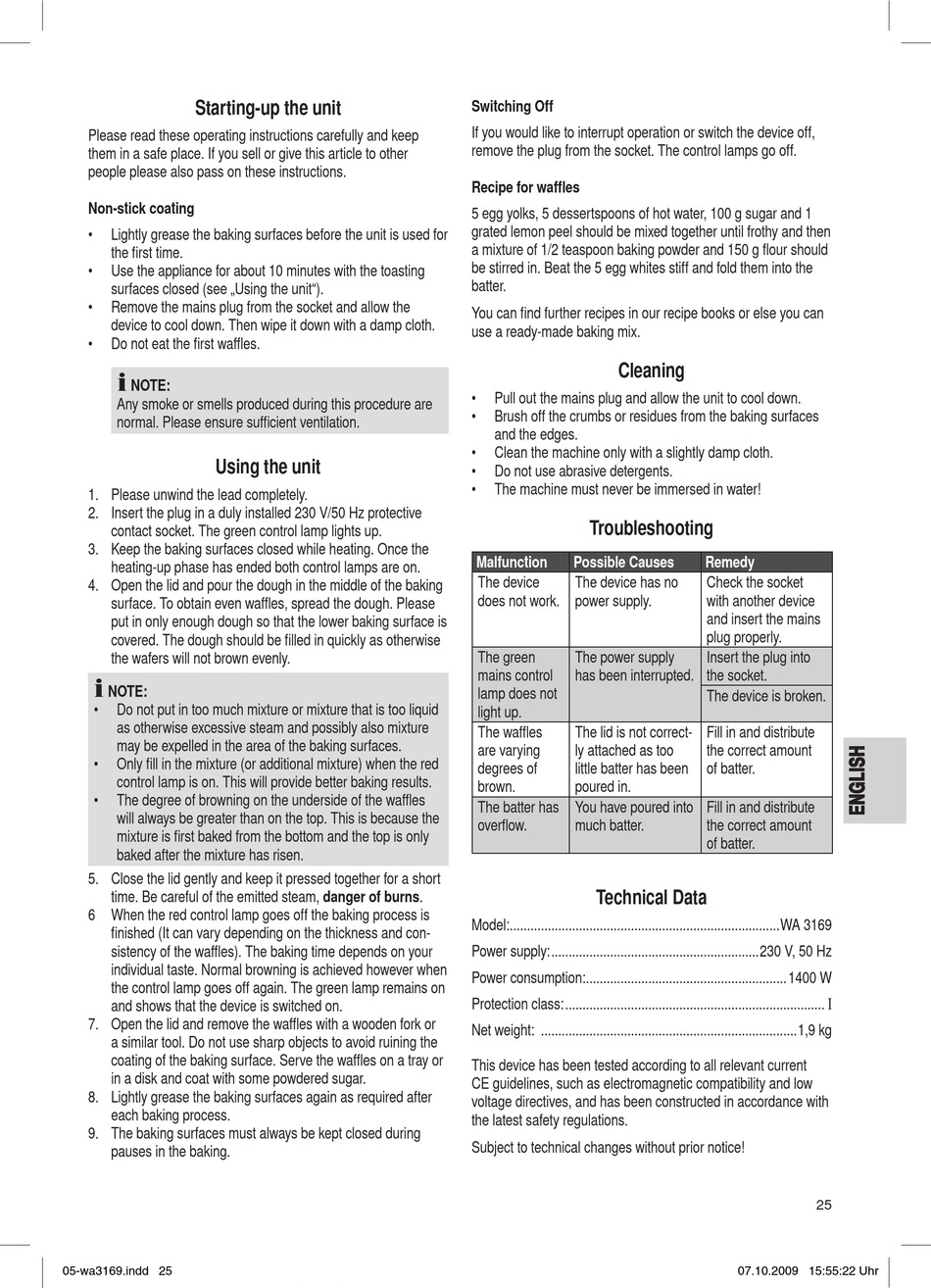

Starting-up the unit

Please read these operating instructions carefully and keep
them in a safe place. If you sell or give this article to other
people please also pass on these instructions.
Non-stick coating
• Lightly grease the baking surfaces before the unit is used for
the first time.
• Use the appliance for about 10 minutes with the toasting
surfaces closed (see „Using the unit").
• Remove the mains plug from the socket and allow the
device to cool down. Then wipe it down with a damp cloth.
• Do not eat the first waffles.

NOTE:
Any smoke or smells produced during this procedure are
normal. Please ensure sufficient ventilation.

Using the unit

1. Please unwind the lead completely.
2. Insert the plug in a duly installed 230 V/50 Hz protective
contact socket. The green control lamp lights up.
3. Keep the baking surfaces closed while heating. Once the
heating-up phase has ended both control lamps are on.
4. Open the lid and pour the dough in the middle of the baking
surface. To obtain even waffles, spread the dough. Please
put in only enough dough so that the lower baking surface is
covered. The dough should be filled in quickly as otherwise
the wafers will not brown evenly.

NOTE:
• Do not put in too much mixture or mixture that is too liquid
as otherwise excessive steam and possibly also mixture
may be expelled in the area of the baking surfaces.
• Only fill in the mixture (or additional mixture) when the red
control lamp is on. This will provide better baking results.
• The degree of browning on the underside of the waffles
will always be greater than on the top. This is because the
mixture is first baked from the bottom and the top is only
baked after the mixture has risen.
5. Close the lid gently and keep it pressed together for a short
time. Be careful of the emitted steam, danger of burns.
6 When the red control lamp goes off the baking process is
finished (It can vary depending on the thickness and con-
sistency of the waffles). The baking time depends on your
individual taste. Normal browning is achieved however when
the control lamp goes off again. The green lamp remains on
and shows that the device is switched on.
7. Open the lid and remove the waffles with a wooden fork or
a similar tool. Do not use sharp objects to avoid ruining the
coating of the baking surface. Serve the waffles on a tray or
in a disk and coat with some powdered sugar.
8. Lightly grease the baking surfaces again as required after
each baking process.
9. The baking surfaces must always be kept closed during
pauses in the baking.
05-wa3169.indd 25
Switching Off
If you would like to interrupt operation or switch the device off,
remove the plug from the socket. The control lamps go off.
Recipe for waffles
5 egg yolks, 5 dessertspoons of hot water, 100 g sugar and 1
grated lemon peel should be mixed together until frothy and then
a mixture of 1/2 teaspoon baking powder and 150 g flour should
be stirred in. Beat the 5 egg whites stiff and fold them into the
batter.
You can find further recipes in our recipe books or else you can
use a ready-made baking mix.
Cleaning
• Pull out the mains plug and allow the unit to cool down.
• Brush off the crumbs or residues from the baking surfaces
and the edges.
• Clean the machine only with a slightly damp cloth.
• Do not use abrasive detergents.
• The machine must never be immersed in water!
Troubleshooting
Malfunction Possible Causes
The device The device has no
does not work. power supply.
The green The power supply
mains control has been interrupted.
lamp does not
light up.
The waffles The lid is not correct-
are varying ly attached as too
degrees of little batter has been
brown. poured in.
The batter has You have poured into
overflow. much batter.

Technical Data

Model: ..............................................................................WA 3169
Power supply: ............................................................230 V, 50 Hz
Power consumption: ..........................................................1400 W
Protection class: ........................................................................... Ι
Net weight: ..........................................................................1,9 kg
This device has been tested according to all relevant current
CE guidelines, such as electromagnetic compatibility and low
voltage directives, and has been constructed in accordance with
the latest safety regulations.
Subject to technical changes without prior notice!
Remedy
Check the socket
with another device
and insert the mains
plug properly.
Insert the plug into
the socket.
The device is broken.
Fill in and distribute
the correct amount
of batter.
Fill in and distribute
the correct amount
of batter.
