Injection Transformer User Manual
3.2 B-LFT 100 Low Frequency Injection Transformer
Delivery includes:
Injection transformer
BNC to 4 mm banana adapter
INPUT connector
BNC plug to connect the B-LFT 100
injection transformer to the signal source

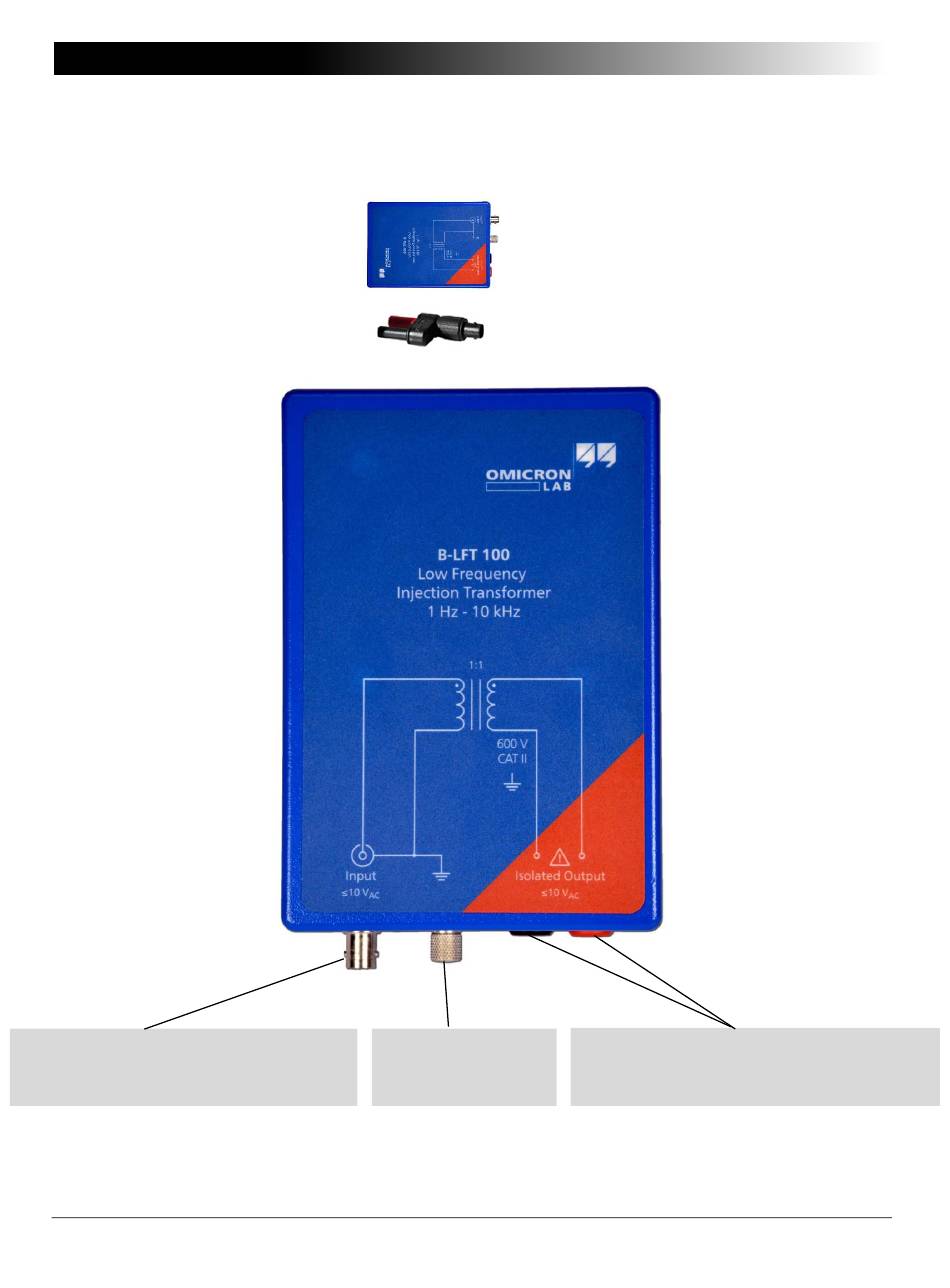

Figure 3-2:
8
EARTH TERMINAL
to connect device to
safety ground
B-LFT 100 connector description
ISOLATED OUTPUT connectors
4 mm safety banana jacks for connecting the
injection transformer to the injection resistor
