FUNCTIONAL DESCRIPTION

CAUTION:
Always be sure that the tool is switched off and the
•
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
CAUTION:
Hold the tool and the battery cartridge firmly
•
when installing or removing battery cartridge.
Failure to hold the tool and the battery cartridge
firmly may cause them to slip off your hands and
result in damage to the tool and battery cartridge
and a personal injury.
Fig.1
Always switch off the tool before insertion or
•
removal of the battery cartridge.
To remove the battery cartridge, withdraw it from
•
the tool while sliding the button on the front of the
cartridge.
To insert the battery cartridge, align the tongue on
•
the battery cartridge with the groove in the housing
and slip it into place. Always insert it all the way
until it locks in place with a little click. If you can see
the red part on the upper side of the button, it is not
locked completely. Insert it fully until the red part
cannot be seen. If not, it may accidentally fall out of
the tool, causing injury to you or someone around
you.
Do not use force when inserting the battery
•
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.
Battery protection system
The battery cartridge is equipped with the protection
system, which automatically cuts off the output power for
its long service life.
The tool may stop during operation when the tool and/or
battery are placed under the following situation. This is
caused by the activation of protection system and does
not show the tool trouble.
When the tool is overloaded:
•
At this time, release the switch trigger and
remove causes of overload and then pull the
switch trigger again to restart. When the tool
does not work even after pulling the switch
trigger, the battery power auto-stop is still at
work. Charge the battery cartridge before
use.
When the remaining battery capacity becomes low:
•
Recharge the battery cartridge.

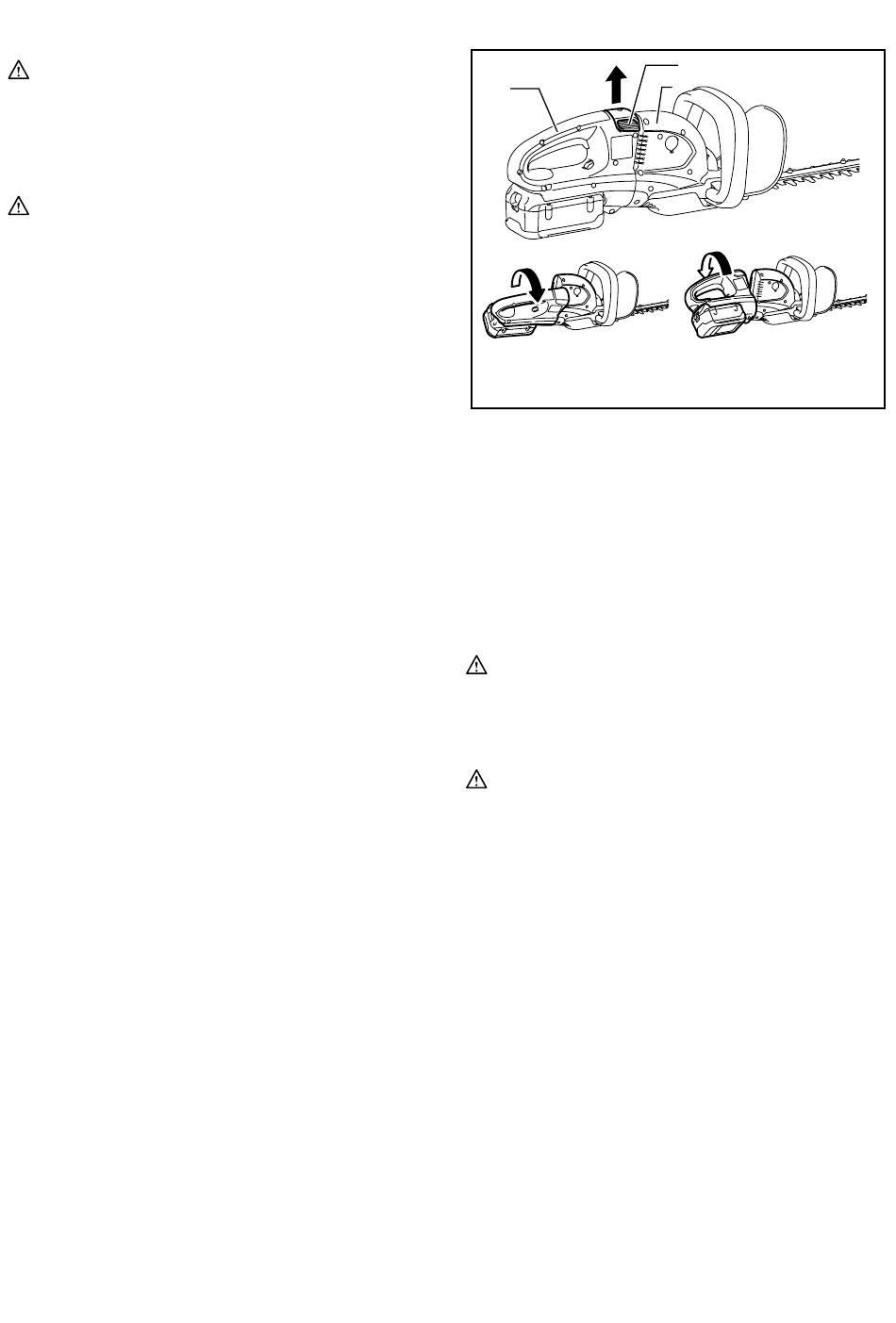

Handle mounting positions
3
1. Housing
2. Knob
3. Handle
011148
The handle can be rotated to either 90° left or right and
mounted either 45°or 90°position to fit your work needs.
First, pull the knob and rotate the handle clockwise or
counterclockwise in the direction of arrow as shown in
the figure. The handle will be locked in 45°position. The
pull the knob and rotate more. The handle will be locked
in 90°position.
CAUTION:
Always make sure that the handle is locked in the
•
desired position before operation.
Switch action
CAUTION:
Before inserting the battery cartridge into the tool,
•
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
Fig.2
For your safety, this tool is equipped with a dual switching
system. To turn on the tool, press triggers A and B.
Release either one of the two pressed triggers to turn off.
The sequence of switching is unimportant as the tool only
starts when both switches are activated.
Speed change
Fig.3
The strokes per minute can be adjusted just by turning
the adjusting dial. This can be done even while the tool is
running. The dial is marked 1 (lowest speed) to 6 (full
speed).
Refer to the table below for the relationship between the
number settings on the adjusting dial and the strokes per
minute.
