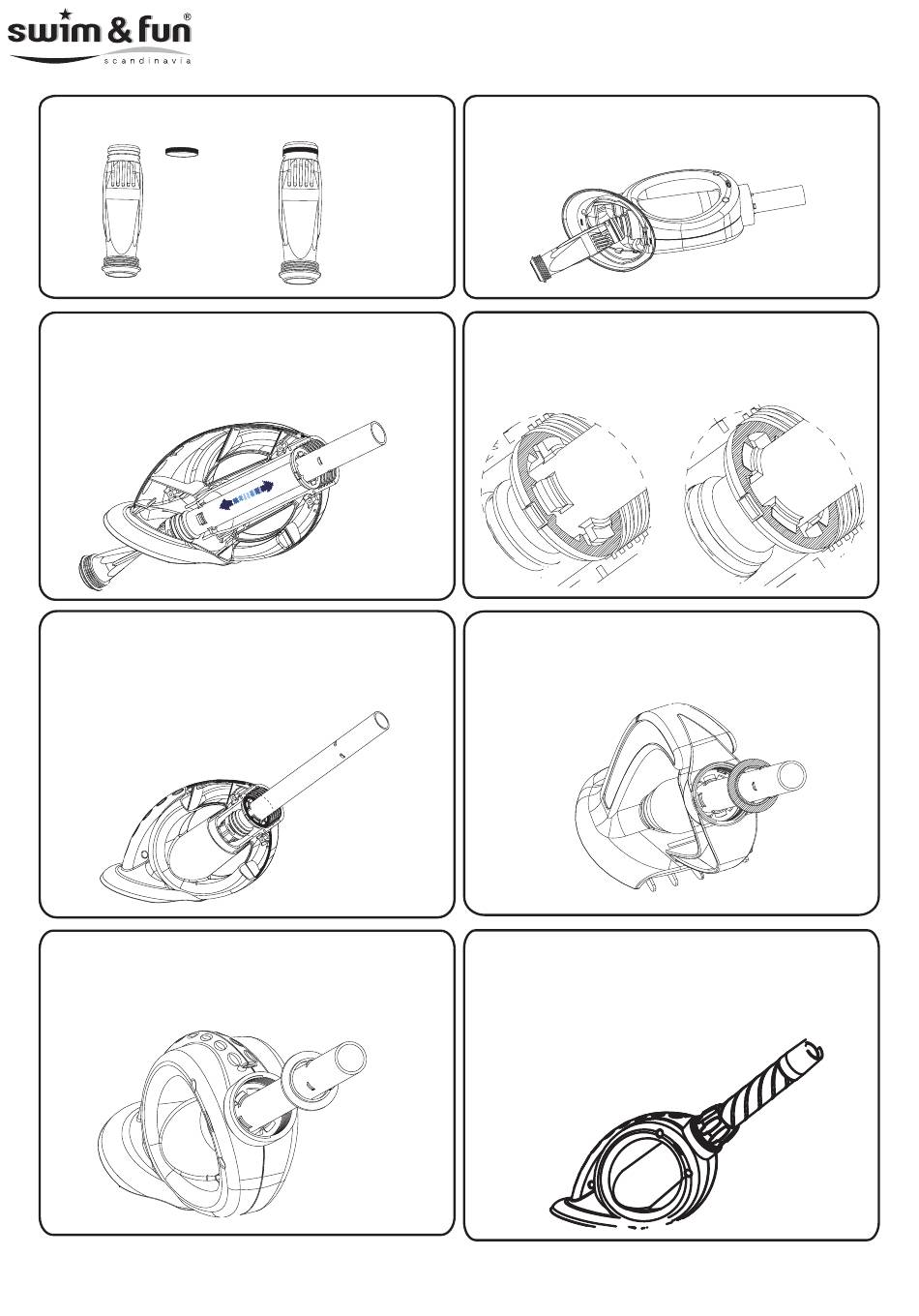

Fit the RETAINING RING ontp the new DIAPHRAGM.
c)
Pull the INNER EXTENSION PIPE up through the BODY,
positioning the tabs so they can be pulled through the
holes in the IEP LOCATOR.
e)
Check that the DIAPHRAGM is correctly located. If it
has become twisted during installation, simply untwist by
slightly turning the open end of the DIAPHRAGM.
g)
Place the OUTER EXTENSION PIPE over the INNER
EXTENSION PIPE.
52
b)
Push the DIAPHRAGM onto the INNER EXTENSION
PIPE. Make sure it is correctly located and fully engaged.
Gentle turn the INNER EXTENSION PIPE so the tabs are
d)
aligned with the recesses in the IEP LOCATOR. Release
the INNER EXTENSION PIPE.
f)
Slide the THRUST WASHER over the INNER EXTENSI-
ON PIPE. The flat side (widest diameter) of the THRUST
WASHER should face down.
h)
Screw the HANDNUT into place, to lock the assembly. Be
careful not to over-tighten the Handnut.
i)
Check that the OUTER EXTENSION PIPE swivels freely.
