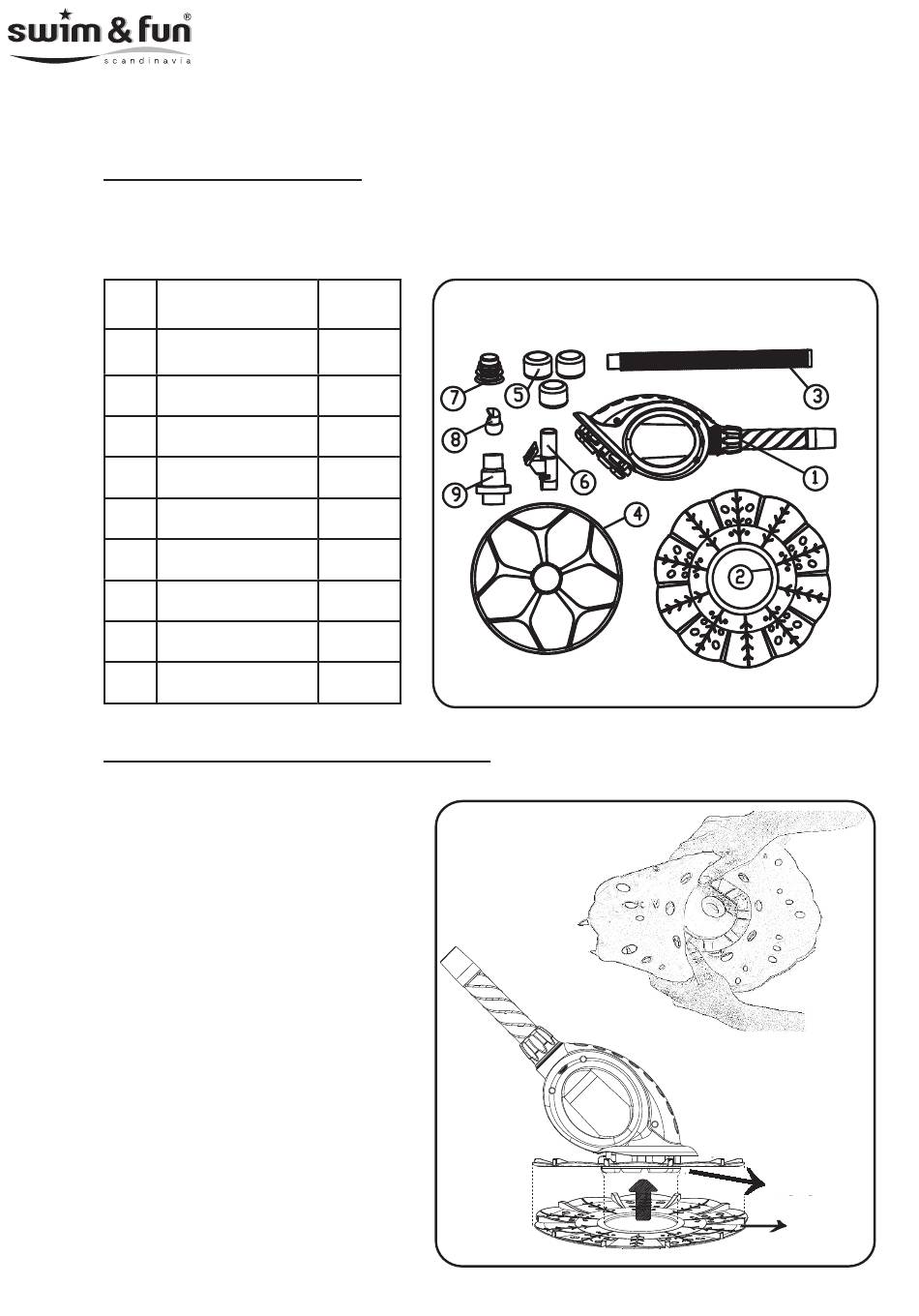

ASSEMBLING & INSTALLING YOUR POOL CLEANER
STEP 1: CHECK CONTENTS
Remove the cleaner body and all parts from the box and check the following components are inclu-
ded. Refer to Figure 1
NO. Description
Cleaner complete
1
with Footpad
2 Disc
3 Hose lengths*
4 Deflector Wheel
5 Hose Weight
6 Flow Control Valve
7 Control Valve Adaptor
8 Return Line Diverter
9 Agile Adaptor
STEP 2: ASSEMBLE THE POOL CLEANER
To assemble simply fit your pool clea-
ner disc to the body.
Simply stretch the disc (with the fins-
pointing up, towards the cleaner) over
the Footpad, as shown in Fig. 2 Make
sure the inside rim of the Disc is loca-
ted in the track that runs around the
Footpad. When the Disc is correctly
positioned, it should easily rotate
around the Footpad.
46
Quantity
Figure 1
1
1
10
1
3
1
1
1
1
Figure 2
MV-1639-11-2017 . © All rights reserved Swim & Fun Scandinavia ApS
UK
Footpad
Disc
