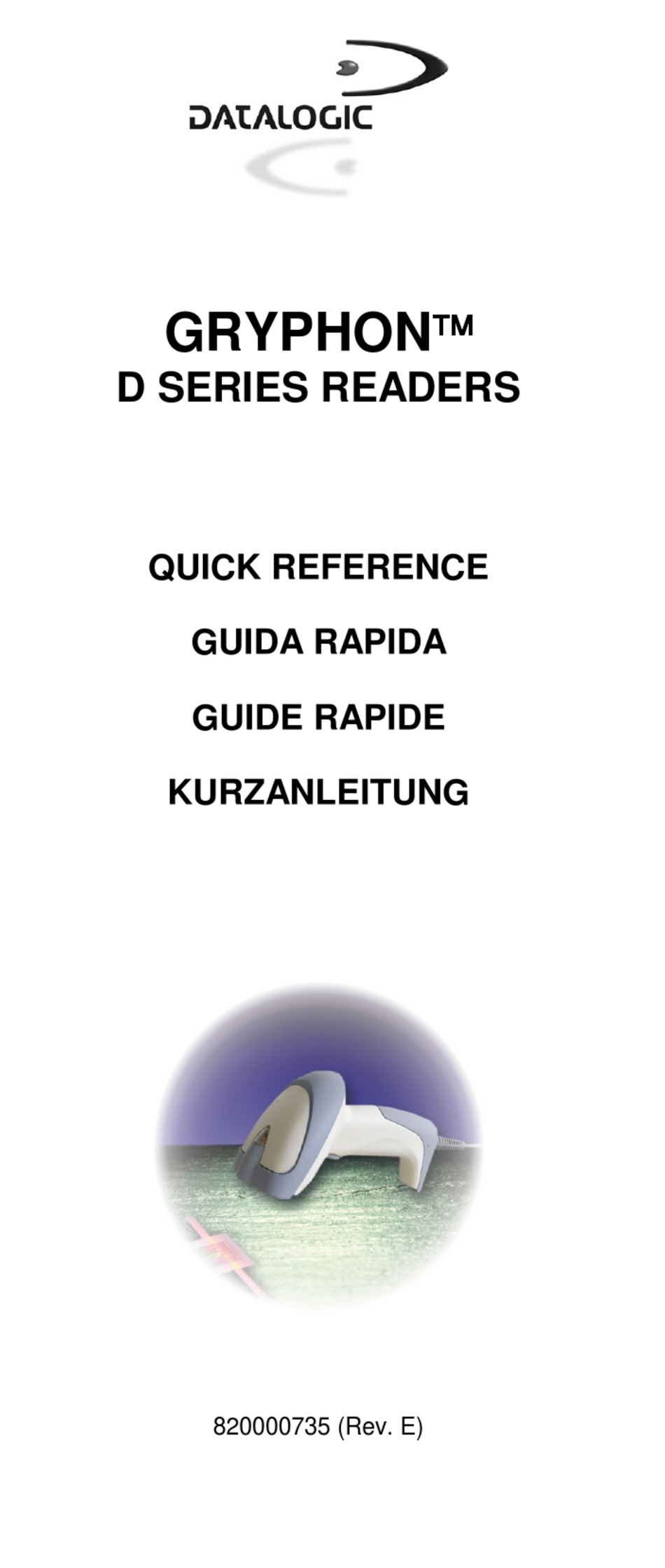

- Seite 1 GRYPHON D SERIES READERS QUICK REFERENCE GUIDA RAPIDA GUIDE RAPIDE KURZANLEITUNG 820000735 (Rev. E)

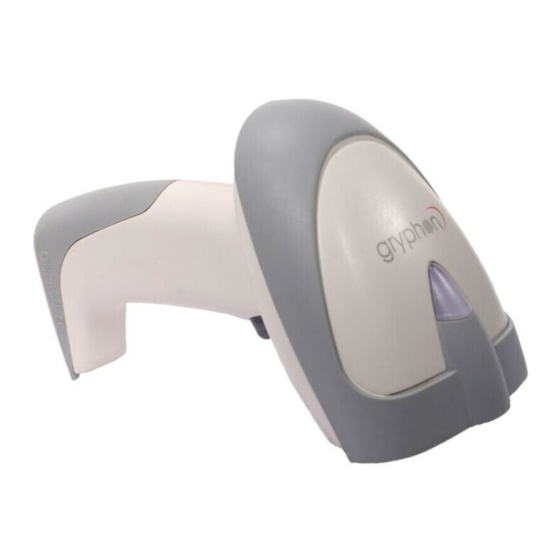

- Seite 2 USING GRYPHON SERIES READERS Gryphon guns automatically scan barcodes at a distance. Simply aim and pull the trigger. Code scanning is performed along the center of the light bar emitted from the reading window. This bar must cover the entire code. Successful scanning is obtained by tilting the scanner with respect to the barcode to avoid direct reflections which impair the reading performance, see the figure above.
-
Seite 3: Reading Diagrams
READING DIAGRAMS GRYPHON D100 (STANDARD) D100 (STD) - Reading Zones (10° skew angle) 0.13 mm (5 mils) CODE 39 CODE 39 EAN13 M=1 CODE 39 0.076 mm 0.13 mm 0.33 mm 0.50 mm (3 mils) (5 mils) (13 mils) (20 mils) (cm) - Seite 4 CONNECTIONS RS232 With the RS232 cable, this accessory device is intended to be supplied by a UL Listed Direct Plug-in Power Unit marked "Class 2", rated 5 V, minimum 330 mA. With the Pen Emulation cable, this accessory device is intended to be supplied by a UL Listed Power Unit marked "Class 2", or an LPS power source which supplies power directly to the reader.
- Seite 5 WEDGE With the Wedge or PC Notebook cables, this accessory device is intended to be connected to either a UL Listed Computer which supplies power directly to the reader or a UL Listed Direct Plug-in Power Unit marked "Class 2", rated 5 V, minimum 330 mA.
-
Seite 6: Technical Features
LED Safety Class Class 1 EN 60825-1 Reading Field see reading diagrams Max. Resolution 0.076 mm (3 mils) min. 15% (Datalogic Test Chart) Environmental Features 0 °C to + 55 °C Working Temperature -20 °C to + 70 °C Storage Temperature... - Seite 7 1 DEFAULT Read the RESTORE DEFAULT. Leggere il codice che ripristina i default. Lecture du code de configuration par défaut. Lesen Sie den Restore Default Code, um die Werkseinstellung wieder herzustellen. RESTORE DEFAULT RS232 Standard DEFAULT SETTINGS 9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking, delay disabled, rx timeout 5 sec., ack/nack disabled, FIFO enabled, serial trigger lock disabled;...
- Seite 8 WEDGE DEFAULT SETTINGS : code identifier disabled, no field adjustment, DATA FORMAT code length not transmitted, no header, terminator = ENTER, character replacement disabled PEN EMULATION DEFAULT SETTINGS interpret mode, conversion to code 39 disabled, output level normal, idle level normal, minimum output pulse 600 µs, overflow medium, inter-block delay disabled POWER SAVE scan rate 270 scans/s, standby disabled, sleep state...
- Seite 9 2 READER CONFIGURATION Read interface selection code your application. Leggere il codice per la selezione dell’interfaccia relativo al modo di comunicazione desiderato. Lecture du code “Interface” correspondant à votre modèle. Lesen Sie denjenigen Schnittstellen-Code, der Ihrem gewünschten Kommunikationsmodus entspricht. RS232 Standard POS Terminals Nixdorf Mode A...
- Seite 10 WEDGE IBM AT or PS/2 PCs IBM XT PC Notebook IBM SURE1 IBM Terminal 3153...
- Seite 11 WEDGE (continued) IBM Terminals 31xx, 32xx, 34xx, 37xx: To select the interface for these IBM Terminals, read the correct KEY TRANSMISSION code. Select the KEYBOARD TYPE if necessary (default = advanced keyboard). Per selezionare l'interfaccia per i terminali IBM, leg- gere il codice Key Transmission appropriato e, se necessario, il codice Keyboard Type (default = advanced keyboard).
- Seite 12 WEDGE (continued) The following interface selection allows barcodes sent to the PC to be interpreted correctly independently from the Keyboard Nationality used. You do not need to make a Keyboard Nationality selection. (default = Num Lock Unchanged) Make sure the Num Lock key on your keyboard is ON.
- Seite 13 Wyse Terminals ANSI Keyboard PC Keyboard ASCII Keyboard VT220 style Keyboard Digital Terminals VT2xx/VT3xx/VT4xx APPLE APPLE ADB Bus...
-
Seite 14: Wedge Keyboard Nationality
WEDGE KEYBOARD NATIONALITY Wedge users should select one of the following WEDGE KEYBOARD NATIONALITY codes. Quando è selezionata l’interfaccia Wedge, leggere uno dei seguenti codici per impostare la nazionalità della tastiera. Pour l’interface Wedge, lire l'un des codes suivants pour sélectionner la nationalité du clavier. Für den Betrieb mit einer Wedge-Schnittstelle lesen Sie einen der folgenden Codes, um die Tastaturnationalität einzustellen. - Seite 15 The following Keyboard Nationality selection is only valid for IBM AT compatible PCs: Japanese YOUR READER IS NOW READY TO READ BARCODES. To change the defaults see the Gryphon Software Configuration Manual, part number 90ACC1780. IL LETTORE È PRONTO A LEGGERE I CODICI. Per cambiare i parametri di default, fare riferimento al manuale "Gryphon...
-
Seite 16: Operating Test
1 2 3 4 5 6 7 0 EAN-13 1 2 3 4 5 6 7 0 0 0 9 9 2 Code 39 (Normal) Code 128 Interleaved 2 of 5 0 1 2 3 4 5 6 7 8 4 PDF417 DATALOGIC PDF417 Test Code... -
Seite 17: Warranty
Datalogic garantit ce produit de tout défaut de fabrication ou des matériels pendant 5 ans de la date de livraison, à condition que le produit soit utlisé correctement. Datalogic a la faculté de réparer ou de remplacer ce produit. mesures prolongeront l’échéance de la garantie. -
Seite 18: Fcc Compliance
PATENTS This product is licensed by one or more of the following U.S. patents: 4,894,523; 5,021,642; and 6,158,661 This product is covered by one or more of the following patents: U.S. patents 5,992,740; 6,305,606 B1; 6,631,846 B2; 6,517,003 B2; and 6,712,271 B2 European patents 851,378 B1;... -
Seite 19: Services And Support
SERVICES AND SUPPORT Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com/services and click on the links indicated for further information including: Datalogic fornisce servizi e supporto tecnico tramite il sito web. Connettersi sito www.datalogic.com/services e cliccare sui link... - Seite 20 Gerät declare que el GRYPHON D100, CCD Hand Held Reader GRYPHON D200, CCD Hand Held Reader e tutti i suoi modelli and all its models et tous ses modèles und seine modelle...
