Inhaltsverzeichnis

Cal.
Item
Specification - 1
Specification - 2
Appearance
Casing
Hand Fitting
Hand Setting Stem
Dial
Assembly Plan - 1
Assembly Plan - 2
Hands
SII Products
VD50C
ψ 29. 50
H
4. 57
Version No.
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Issued on: 15. Jan. 2016
mm
mm

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für TMI VD50C

Inhaltszusammenfassung für TMI VD50C

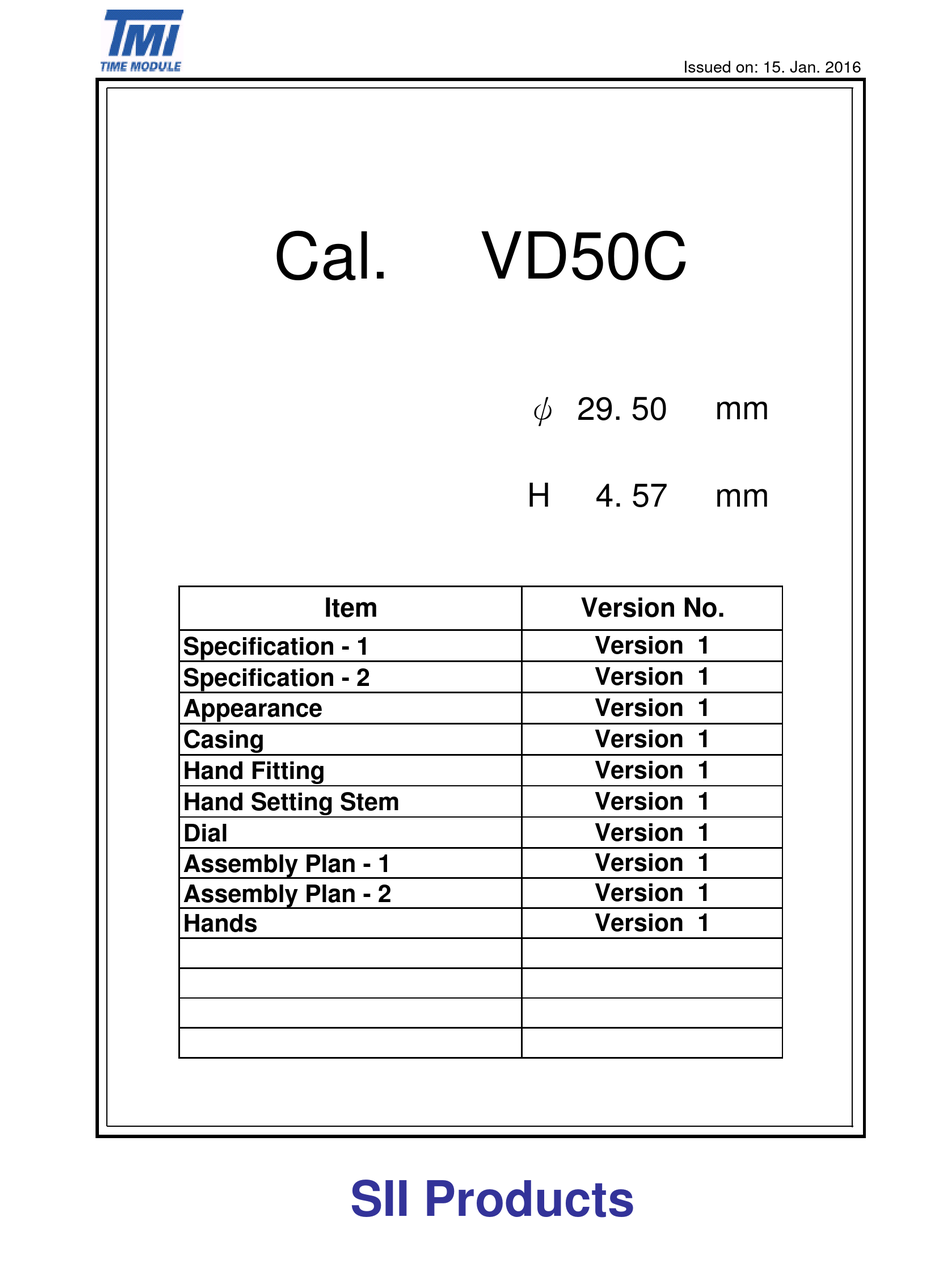

  • Seite 1 Issued on: 15. Jan. 2016 Cal. VD50C ψ 29. 50 4. 57 Item Version No. Version 1 Specification - 1 Version 1 Specification - 2 Version 1 Appearance Version 1 Casing Version 1 Hand Fitting Hand Setting Stem Version 1...
  • Seite 2 MOVEMENT SPECIFICATION - 1 CAL.VD50C 12 3 / 4 Ligne Quartz Movement Three Hands with 3 Eyes / Date (Chrono. 1/10 retro-grade second, Chrono. Second, Chrono. Minute & Calendar ) 1. MOVEMENT DIMENSIONS · Outside diameter ψ29.50mm x 26.00mm (12H~6H) (3H~9H) ·...
  • Seite 3 Movement Specification - 2 CAL. VD50C OPERATION 3 step motors ( 3 hands with calendar, 1 / 10 sec. chrono. maximum to 60 minutes ) Chronograph 1/10 retro-grade second hand (This chronograph hand moves for the first minute which indicates the measurement time...
  • Seite 6 中心柱位 ¦ ¦ " " & 高針 一般針高 £ § ¥ ¦ § ¨ ¥ ¢ ¡ £ § © ¤ £ ¢ ¦ £ ¦ 與機芯平面之最大高度 ¡ ¢ £ ¤ ¥ ¦ § ¨ ¥ ¢ § © ¤ ¡...
  • Seite 8 一般針高 高針 高針 一般針高   ¡ ¢ £ ¤ ¥ ¦ ¦ § 時針輪 ¨ ¦ © ¦ £ ¤ ¥ ¦ ¦ § 分針輪 ¡ ¢ £ ¥ ¤ ¥ ¦ ¦ § 秒針輪 計時分針輪 " & 計時秒針輪 & ¡...
  • Seite 14 ¡ ¡ ¢ £ ¤ ¥ ¦ § ¨ ¨ © ¢ © ¨ 7(&+1,&$/ *8,'( 3$576 &$7$/2*8( &DO9'& $1$/2*8( 48$57= 6,, 3URGXFWV...
  • Seite 15 PARTS CATALOGUE / TECHNICAL GUIDE Cal.VD50C [SPECIFICATION] Version-01 Cal. No. VD50C Item Movement （ Ｄ） （ － ） ( 3H - 9H ) φ Outside diameter φ29.50 mm × 26.00 mm × ― （ Ｄ） （ － ） ( 3H - 9H ) φ...
  • Seite 16 Version-01 PARTS CATALOGUE VD50C → Disassembling procedures Figs. Lubricating : Types of oil Oil quantity Moebius A NORMAL QUANTITY → Reassembling procedures Figs. Moebius F Hour, minute 0012 079 second hands Auxiliary train wheel bridge screw Chronograph minute, second and 1/10 second hands...
  • Seite 17 Version-01 PARTS CATALOGUE VD50C Battery 0351 177 Winding stem 0012 079 Switch spring screw 0012 079 Switch spring screw 4250 104 Switch spring 0012 079 4004 397 Train wheel bridge (B) screw Circuit block 0125 331 Train wheel bridge (B)
  • Seite 18 Version-01 PARTS CATALOGUE VD50C 0125 248 Train wheel bridge (A) 0241 178 Fourth wheel and pinion 0701 904 Fifth wheel and pinion (A) 0231 904 Third wheel and pinion 4146 890 Step rotor (A) 0261 034 0221 157 Minute wheel and pinion...
  • Seite 19 Version-01 PARTS CATALOGUE VD50C Remark : Date dial Position of Position of Color of Color of Part code crown date frame figure background 0878 220 Black white * All parts code are subject to change without notice. SII Products...
  • Seite 20 Version-01 TECHNICAL GUIDE VD50C ・The explanation here is only for the particular point of Cal.VD50C Tweezers 1.REMARKS ON INSTALLING THE BATTERY 1) After the battery is replaced with a new one or after the battery is reinstalled following the repairing procedures,...
  • Seite 21 Version-01 TECHNICAL GUIDE VD50C 1.REMARKS ON INSTALLING THE BATTERY (1) HAND ・How to install the hands Place the movement directly on a flat metal plate or the like and press in the hands. * Install the hour , minute and second hands at the "12"o'clock position.

  • Seite 22: Operation

    Version-01 OPERATION VD50C DISPLAY AND CROWN / BUTTON OPERATION Stopwatch 1/10 second hand Minute hand (Move in 1/10 second increments) Button "A" In stopwatch function Hour hand Start / Stop First click Stopwatch minute hand Date setting (Move in minute increments)

  • Seite 23: Time Setting

    Version-01 OPERATION VD50C TIME SETTING 1.Pull out the crown to 2.Turn the crown clockwise 3.Pull out the crown to the 4.Push the crown back in the first click. until the previous day's second click when the to the normal position in date appears.

  • Seite 24: How To Use The Stopwatch

    Version-01 OPERATION VD50C HOW TO USE THE STOPWATCH ・The measurement time is indicated by the stopwatch hands that move independently of the center hands. ・The stopwatch can measure up to 60 minutes in second. (The watch indicates the measurement time in second increments by ignoring off the 1/10 seconds obtained.)
  • Seite 25 English OPERATION MANUAL OF VD5 CHRONOGRAPHS DISPLAY AND CROWN / BUTTON OPERATION VD50 VD51 VD52 VD53 VD54 VD55 VD56 VD57 VD59 VD50 VD51 VD52 VD53 VD54 VD55 VD56 VD57 VD59 Center Hour Hand Hour Hands Center Minute Hand Minute Center Second Hand Second Window Date...
  • Seite 26 English If either of the stopwatch hands are not in the "0" position , reset them following the procedure below. 1) Pull the crown out to : VD50, VD51, VD52, VD53, VD57 (calibres with date window) : second click Button A VD54, VD55, VD56, VD59 (calibres without date window) : first click 2) Press button A or B to reset all stopwatch hands to "0"...
  • Seite 27 English Accumulated elapsed time measurement (e.g. basketball game) Button A Button A Button A Button A Button B (START) (STOP) (RESTART) (STOP) (RESET) * Restart and stop of the stopwatch can be repeated as many times as necessary by pressing button A.

  • Seite 28: Anzeige Und Krone / Bedientasten Funktionen

    German BEDIENUNGSANLEITUNG FÜ R VD5 CHRONOGRAPH ANZEIGE UND KRONE / BEDIENTASTEN FUNKTIONEN VD50 VD51 VD52 VD53 VD54 VD55 VD56 VD57 VD59 VD50 VD51 VD52 VD53 VD54 VD55 VD56 VD57 VD59 Mitte Stundenzeiger Stunde Zeiger Mitte Minutenzeiger Minute Mitte Sekundenzeiger Sekunde Fenster Datum 1.

  • Seite 29: Einstellung Der Stoppuhr-Zeiger Und Stoppuhrzeiger-Positionen

    German EINSTELLUNG DER STOPPUHR-ZEIGER UND STOPPUHRZEIGER-POSITIONEN * Ü berprüfen Sie vor der Zeiteinstellung, ob sich alle Stoppuhrzeiger in der - 1/10 Sekunden (wo vorhanden), Sekunde, Minute - in der "0"-Stellung(12 Uhr) befinden. * Wenn die Stoppuhr im Einsatz ist, dann betätigen Sie die Tasten wie folgt, um eine Rücksetzung durchzuführen, und prüfen Sie anschließ...

  • Seite 30: Der Einsatz Der Stoppuhr

    German VD54, 55, 56, 59 (Modelle ohne Datum-Fenster) : 1) Ziehen Sie die Krone heraus, sobald sich der Sekundenzeiger in der 12-Uhr Stellung befindet. Stellung befindet. Der Sekundenzeiger hält unverzüglich 2) Bringen Sie die Zeiger in die gewünschte Zeiteinstellung Zeit indem Sie an der Krone drehen.
  • Seite 31 VD50/VD51/VD52/VD54/VD55/VD56/VD59 - Calibre List Date : 20.10.2016 Reference VD50C11 VD50C117 VD50C1B VD51C1 VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph Product Line Series Series Series Series Function Chrono/Date Chrono/Date Chrono/Date Chrono/Date Appearance Size 12 3/4''' 12 3/4''' 12 3/4''' 12 3/4''' *Category...
  • Seite 32 VD50/VD51/VD52/VD54/VD55/VD56/VD59 - Calibre List Date : 20.10.2016 Reference VD51C17 VD51C3 VD51C1B VD51C31B VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph Product Line Series Series Series Series Function Chrono/Date Chrono/Date Chrono/Date Chrono/Date Appearance Size 12 3/4''' 12 3/4''' 12 3/4''' 12 3/4''' *Category...
  • Seite 33 VD50/VD51/VD52/VD54/VD55/VD56/VD59 - Calibre List Date : 20.10.2016 Reference VD51C2 VD51C27 VD51C2B VD51C38 VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph Product Line Series Series Series Series Function Chrono/Date Chrono/Date Chrono/Date Chrono/Date Appearance Size 12 3/4''' 12 3/4''' 12 3/4''' 12 3/4''' *Category...
  • Seite 34 VD50/VD51/VD52/VD54/VD55/VD56/VD59 - Calibre List Date : 20.10.2016 Reference VD51C387 VD51C38B7 VD52C12 VD52C327 VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph Product Line Series Series Series Series Function Chrono/Date Chrono/Date Chrono/Date Chrono/Date Appearance Size 12 3/4''' 12 3/4''' 12 3/4''' 12 3/4''' *Category...
  • Seite 35 VD50/VD51/VD52/VD54/VD55/VD56/VD59 - Calibre List Date : 20.10.2016 Reference VD54C1 VD54C3 VD55C1 VD55C3 VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph Product Line Series Series Series Series Function Chrono/No Date Chrono/No Date Chrono/No Date Chrono/No Date Appearance Size 12 3/4''' 12 3/4'''...
  • Seite 36 VD50/VD51/VD52/VD54/VD55/VD56/VD59 - Calibre List Date : 20.10.2016 Reference VD56C1 VD56C3 VD59C1 VD5 Basic Chronograph VD5 Basic Chronograph VD5 Basic Chronograph Product Line Series Series Series Function Chrono/No Date Chrono/No Date Chrono/No Date Appearance Size 12 3/4''' 12 3/4''' 12 3/4''' *Category Spec Sheet Dial Drawing No.
