7 STOVE DESCRIPTION

Before reading this booklet, check the description
of the stove provided in the "Product Booklet"
enclosed.

7.1 CONTROL PANEL

The control panel consists of:
A) a top part with status LEDs and backlit icons
that identify each function;
B) LED display;
C) ON button ;
D) "Cancel" and display "error" button
E) two arrow buttons to scroll between the various
functions
F) two buttons
parameters and access the submenus;
G) an enter button
the settings.
All the buttons are capacitive, therefore the functions
are activated without needing to press hard on the
buttons, rather by just touching the surface.
7.1.1 Status leds
ICON
Pellets running out
Maintenance
Service
Remote control receiver
Timer active
Status LED (near the
button )
USE AND & MAINTENANCE
;
;
and to set the operating
WARNING
Indicates the need to perform maintenance
(this may also be displayed when repeatedly pressing the ON button)
Indicates an error
It receives the inputs sent by the remote control (optional)
Indicates whether the timer function is active.
LED on steady: stove on and operating
LED off: stove off
A
D
B
E
C
DESCRIPTION
F
G

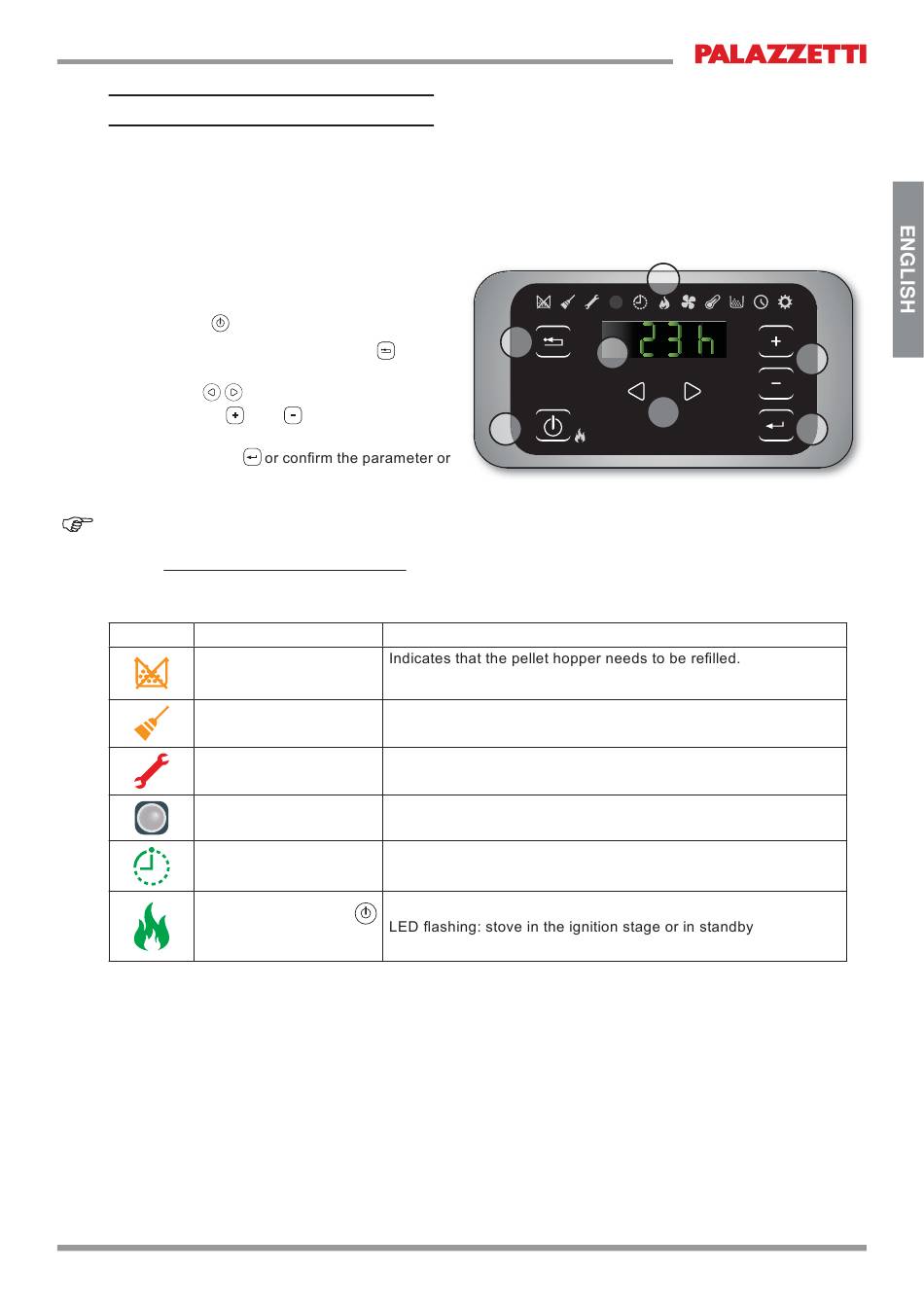

Fig. 7.1
43
