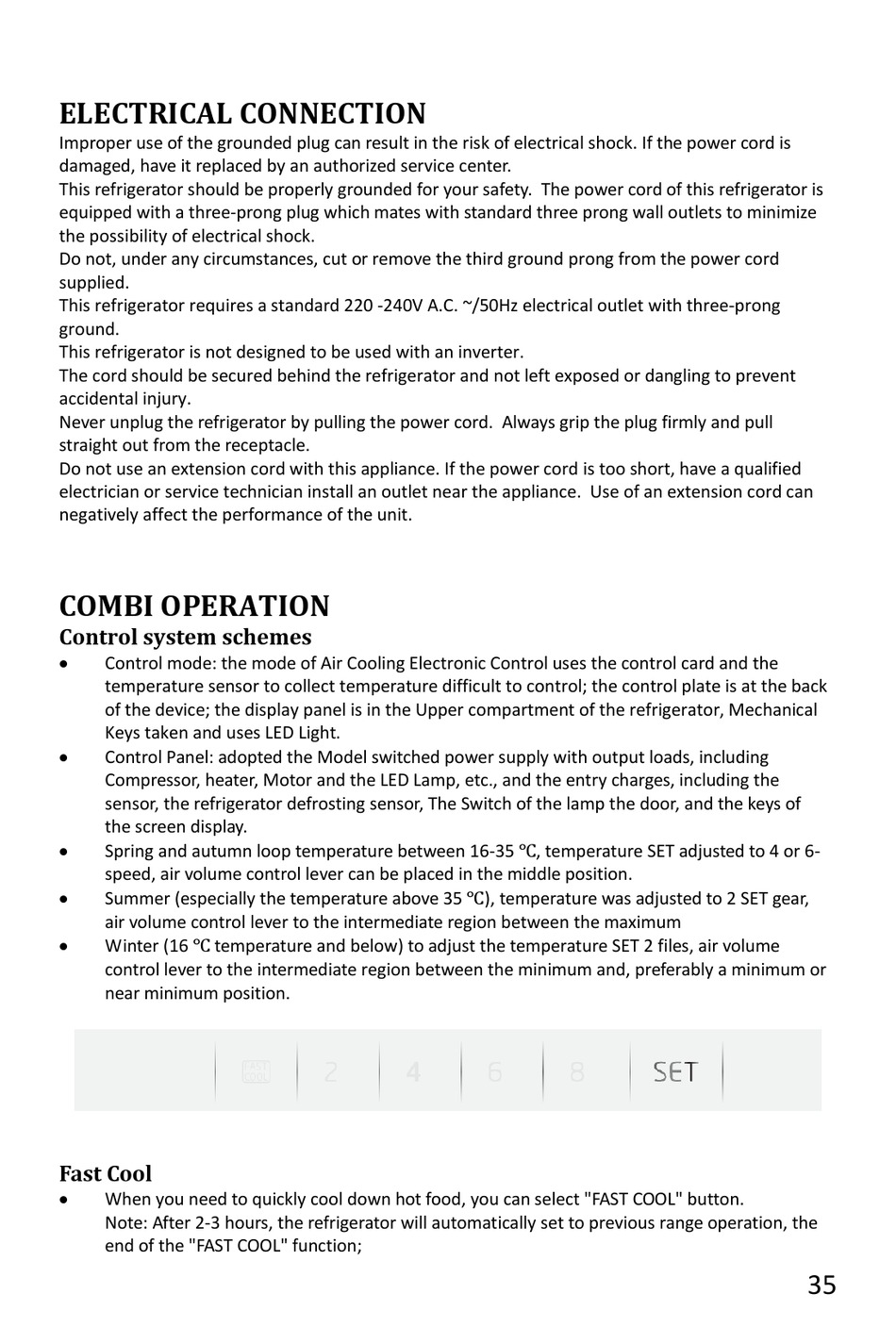

Electrical Connection; Combi Operation; Control System Schemes; Fast Cool - Candy COMBI Anleitung

ELECTRICAL CONNECTION

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize
the possibility of electrical shock.
Do not, under any circumstances, cut or remove the third ground prong from the power cord
supplied.
This refrigerator requires a standard 220 -240V A.C. ~/50Hz electrical outlet with three-prong
ground.
This refrigerator is not designed to be used with an inverter.
The cord should be secured behind the refrigerator and not left exposed or dangling to prevent
accidental injury.
Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull
straight out from the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negatively affect the performance of the unit.

COMBI OPERATION

Control system schemes


Control mode: the mode of Air Cooling Electronic Control uses the control card and the
temperature sensor to collect temperature difficult to control; the control plate is at the back
of the device; the display panel is in the Upper compartment of the refrigerator, Mechanical
Keys taken and uses LED Light.

Control Panel: adopted the Model switched power supply with output loads, including
Compressor, heater, Motor and the LED Lamp, etc., and the entry charges, including the
sensor, the refrigerator defrosting sensor, The Switch of the lamp the door, and the keys of
the screen display.

Spring and autumn loop temperature between 16-35 ℃, temperature SET adjusted to 4 or 6-
speed, air volume control lever can be placed in the middle position.

Summer (especially the temperature above 35 ℃), temperature was adjusted to 2 SET gear,
air volume control lever to the intermediate region between the maximum

Winter (16 ℃ temperature and below) to adjust the temperature SET 2 files, air volume
control lever to the intermediate region between the minimum and, preferably a minimum or
near minimum position.

Fast Cool


When you need to quickly cool down hot food, you can select "FAST COOL" button.
Note: After 2-3 hours, the refrigerator will automatically set to previous range operation, the
end of the "FAST COOL" function;
35
