3. Place Turny Low Vehicle on the bracket
Install Turny Low Vehicle inclined 4 degrees to the rear. Use the lifting eye supplied with
the template tool to make positioning the unit on the bracket easier. Turny Low Vehicle is
delivered positioned such that it will assume the correct angle when lifted with the lifting
eye. If Turny Low Vehicle is disturbed from this position, it will not be at the correct
inclination.

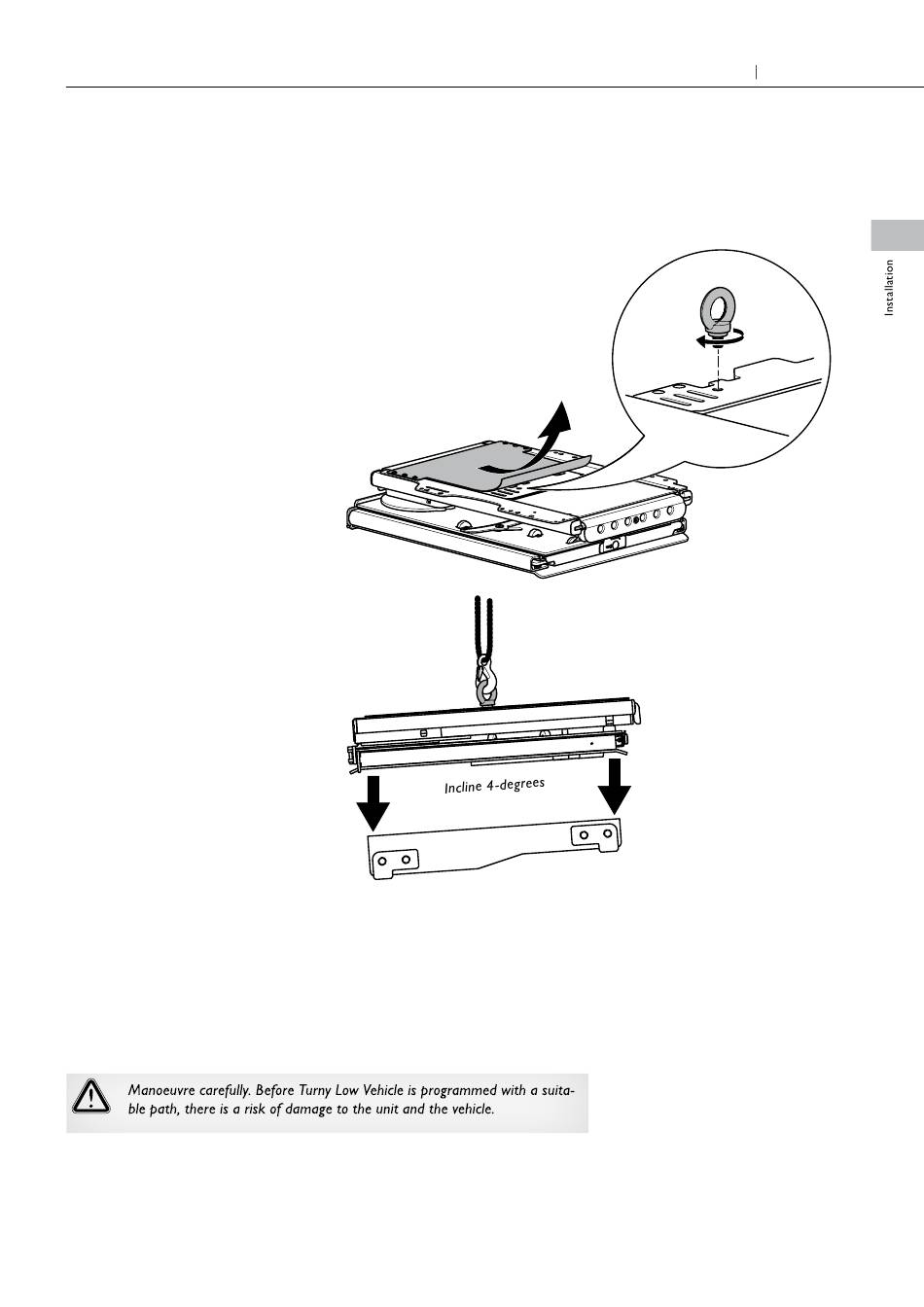

3.1
Screw the lifting eye in place
Lift the plastic cover to access the
lifting eye attachment point. Screw
the eye all the way down.
3.2
Place the unit on the bracket
Turny Low Vehicle is delivered
positioned such that the unit is at
the correct angle when lifted with
the lifting eye. Place the unit on the
bracket and then remove the lifting
eye.
4. Connect Turny Low Vehicle
Connect the hand-held control cabling, door switch and power to the unit. Upon
delivery, Turny Low Vehicle is preprogrammed for operation as soon as the hand-
held control is connected. Make sure voltage is above 10.5V. The equipment requires
a voltage above 10.5V in all modes.
Optional function buttons light up green. Hold the selected button down. When
the seat reaches its preprogrammed end position, it will stop automatically. To stop
movement, release the button.
