• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified
people. Any damage that may occur will most probably be due to unprofessional use of the device.
• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp
explosion, crash, etc. Using the device in an unauthorised way will void the warranty.

4. Installation

a. Mounting the Device
• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
• The carrying construction must be able to support 10 times the weight of the device for 1 hour without deforming.
• The installation must always be secured with a secondary attachment e.g. a safety cable.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician
check the device once a year and once before you bring it into service.
• Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation
material to be used... Have the material and the device itself checked regularly. Do not attempt to install the
device yourself if you lack these qualifications as improper installation may result in injuries.
• Make sure there is no flammable material within a 0.5m radius of the device.
• Have a qualified electrician carry out the electric connection.
• Connect the device to the mains with the power plug. Do not connect it to a dimming pack.
• The installation has to be approved by an expert before the device is taken into service.
b. Replacing the Fuse
• If the lamp burns out, the fuse of the device might fuse, too.
• Only replace the fuse by a fuse of the same type and rating.
• Before replacing the fuse, unplug mains lead.
1) Unscrew the fuse holder on the rear panel of the base with a fitting screwdriver from the housing.
2) Remove the old fuse and install the new fuse in the fuse holder.
3) Replace the fuse holder in the housing and fix it.
5. Use

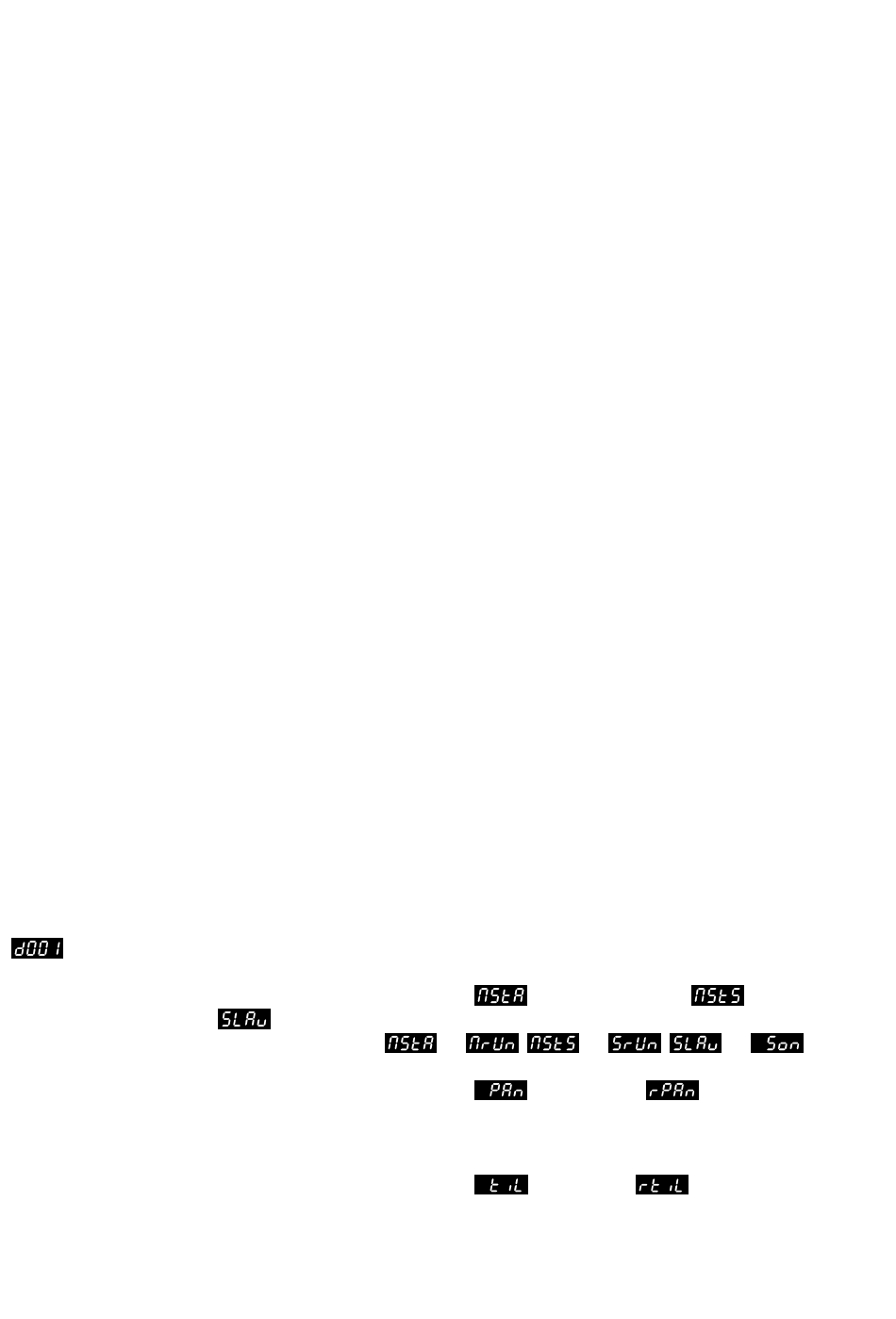

Mode 1: This is the default mode. To receive the DMX512 signal, set the desired address via the UP/DOWN buttons.
DMX mode: Select channel 1 ~ 512.
Mode 2: Press the MODE/ESC button until the display shows
controlled mode) /
ENTER button to confirm your selection (
Mode 3: Press the MODE/ESC button until the display shows
the desired function using the UP/DOWN buttons. Press the ENTER button to confirm your selection. The
display will show the mode selected previously (DMX or master / slave).
Mode 4: Press the MODE/ESC button until the display shows
desired function using the UP/DOWN buttons. Press the ENTER button to confirm your selection. The
display will show the mode selected previously (DMX or master / slave).
VDP250MHS13/2
(slave mode). Select the desired function using the UP/DOWN buttons. Press the
→
4
(master auto mode) /
, ,
→
(positive pan) /
(positive tilt) /
(master sound-
).
→
(negative pan). Select
(negative tilt). Select the
