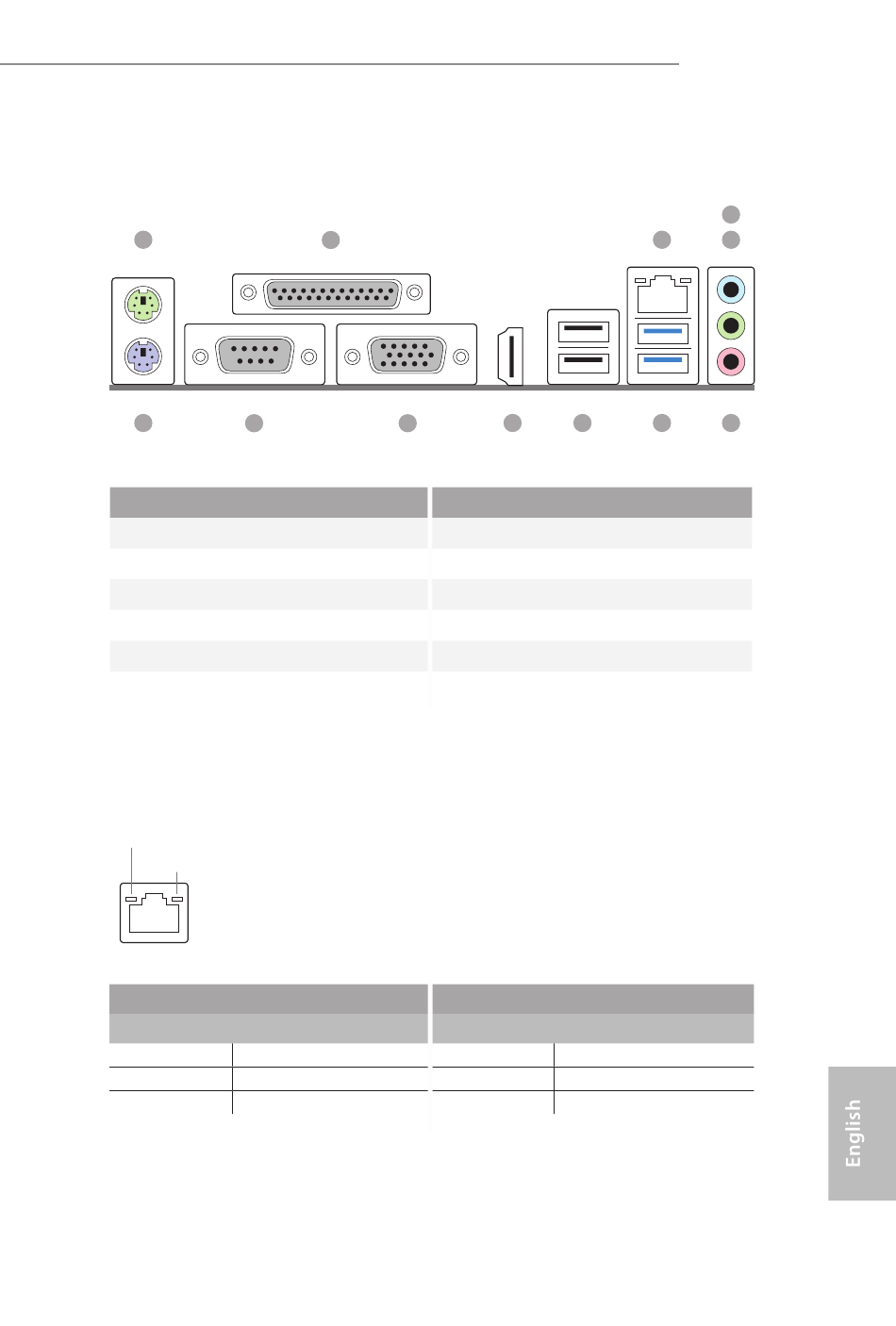

I/O Panel
1
12 11
No. Description
1 PS/2 Mouse Port
2 Parallel Port
3 LAN RJ-45 Port*
4 Line In (Light Blue)**
5 Front Speaker (Lime)**
6 Microphone (Pink)**
* here are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Of No Link
Blinking Data Activity
On Link
2
10
No. Description
7 USB 3.0 Ports (USB3_34)
8 USB 2.0 Ports (USB_01)
9 HDMI Port
10 D-Sub Port
11 COM Port
12 PS/2 Keyboard Port
Speed LED
Status
Of
Orange
Green
3
9 8 7
Description
10Mbps connection
100Mbps connection
1Gbps connection
N3150B-ITX
N3050B-ITX
4
5
6
3
