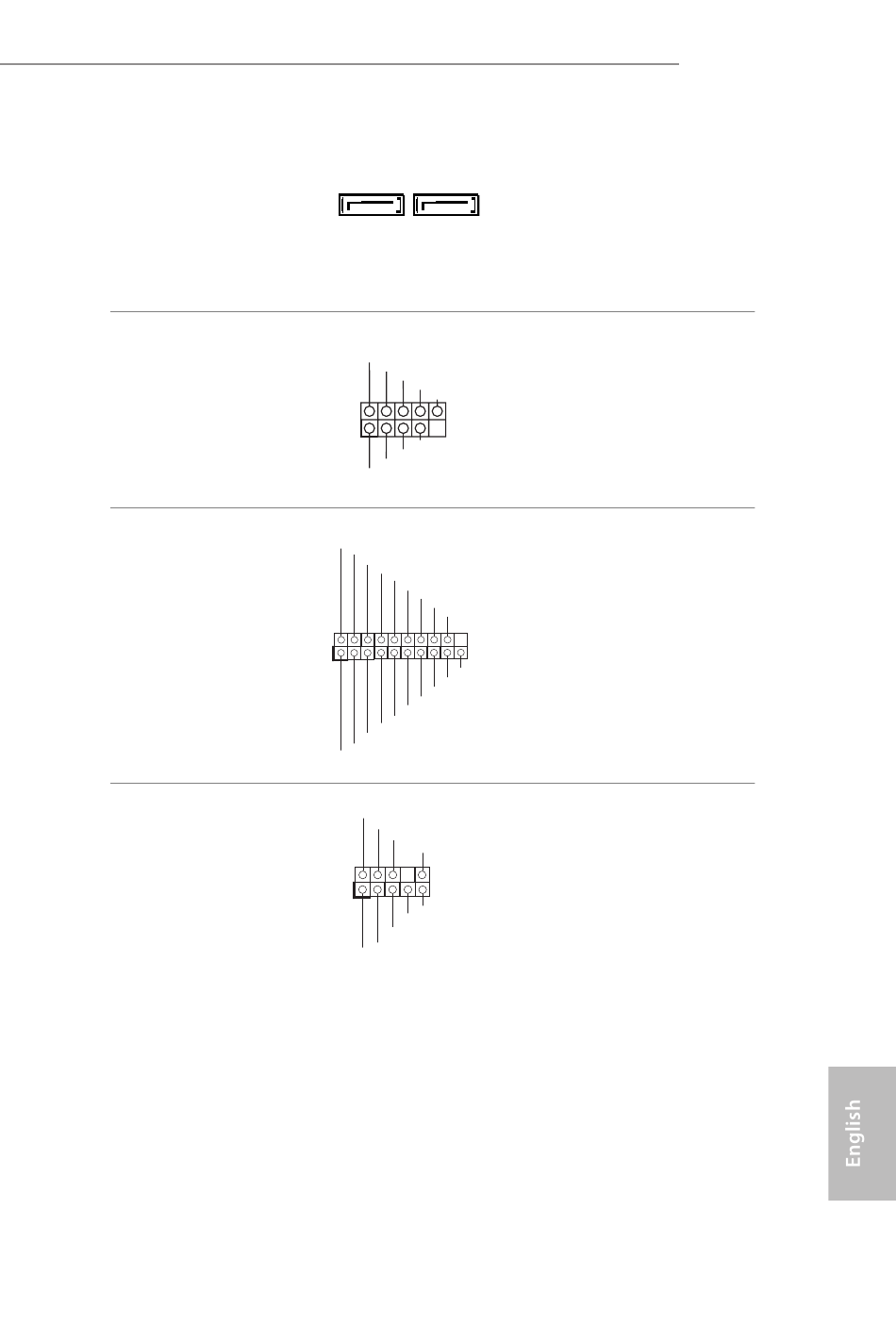

Serial ATA3 Connectors
(SATA3_1:
see p.1, No. 8)
(SATA3_2:
see p.1, No. 10)
USB 2.0 Headers
(9-pin USB2_3)
(see p.1, No. 5)
(9-pin USB4_5)
(see p.1, No. 6)
USB 3.0 Header
(19-pin USB3_1_2)
(see p.1, No. 4)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 16)
SATA3_2 SATA3_1
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
1
Vbus
IntA_P_SSRX-
IntA_P_SSRX+
GND
IntA_P_SSTX-
IntA_P_SSTX+
GND
IntA_P_D-
IntA_P_D+
ID
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
hese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. his USB
3.0 header can support
two ports.
his header is for
connecting audio devices
to the front audio panel.
N3150B-ITX
N3050B-ITX
15
