4. Cylinder Pressure Regulator Removal

Item
1.
2.
3.
Confirm that all items listed above are in the Cylinder Pressure Regulator
Kit.

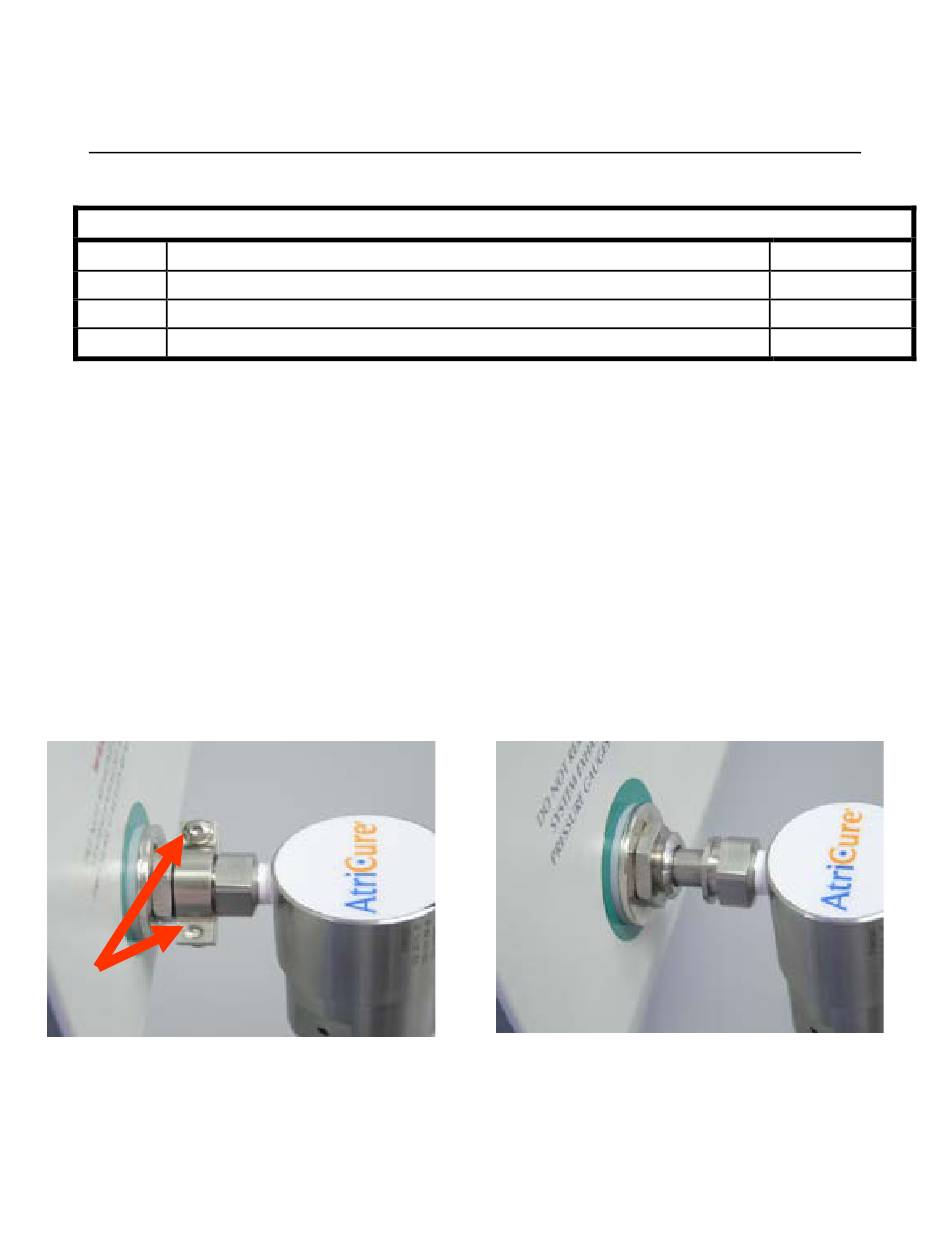

1. Using the 5/64" allen wrench provided with the Cylinder Pressure Regulator Kit,
move the two clamp ring screws holding the Cylinder Pressure Regulator to the
CCS–200 console as shown below.
2. Once the screws and the ring clamps have been removed, the Cylinder Pressure
Regulator will slide out. See below.
3. Package the defective Cylinder Pressure Regulator unit in the box that the
replacement unit was delivered, and return to customer service with an RGA
number for service.
Remove ring
clamp screws
Cylinder Pressure Regulator Kit
Description
Pressure Regulator (with rubber boots)
Band-Clamp (with screws)
5/64" Allen Wrench
5 of 70
