n I
t s
l l a
t a
o i
n
n I
t s
u r
t c
o i
1
4
1
(A)
1
R
S
M
E
n
s
2
3
(A)
2
(bottom view)
i l
e t
S
r e
e i
s
P
o r
e j
t c
r o
M

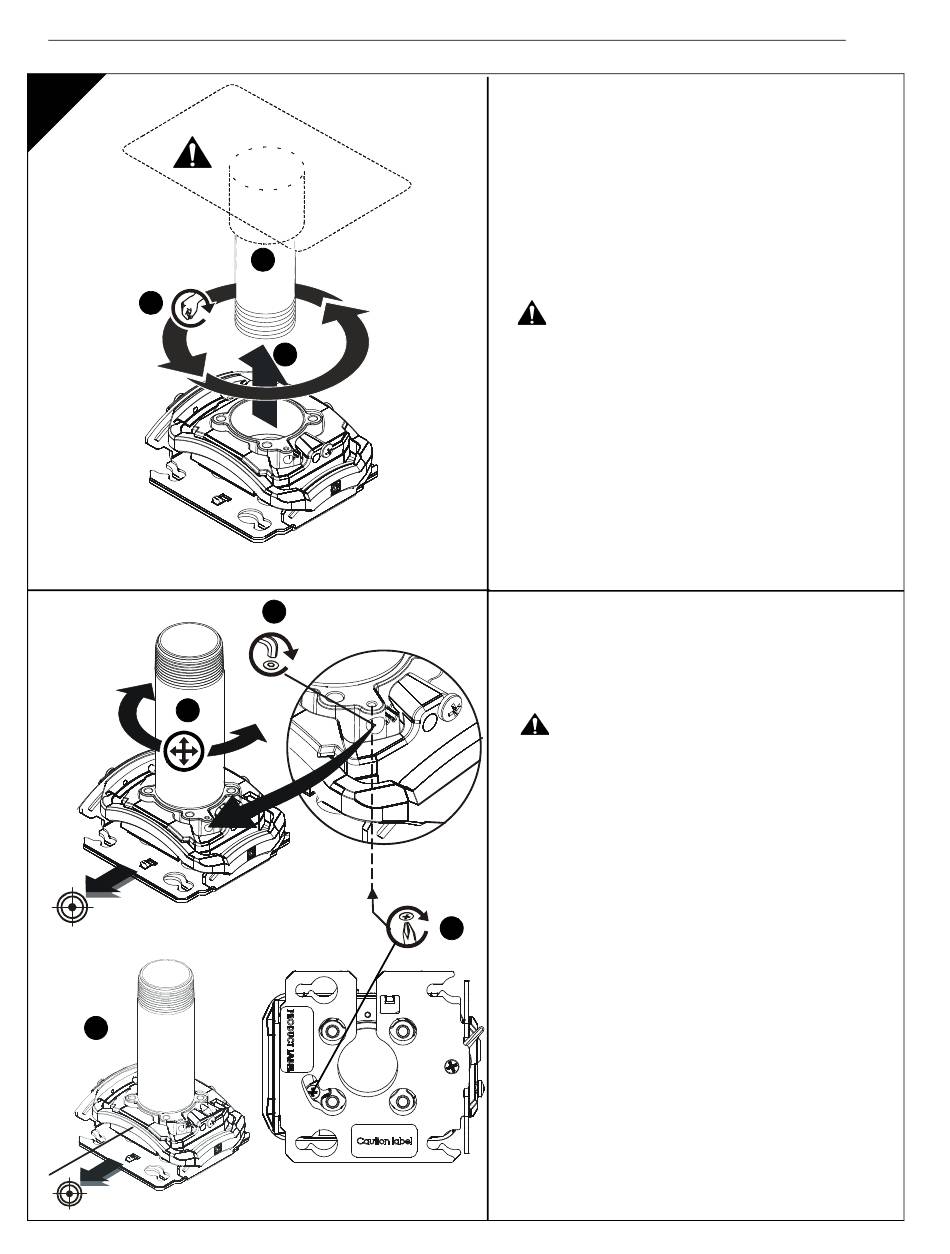

RSM INSTALLATION
Threaded Pipe Installation
1.
Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications
for details on determining this distance.
2.
Install ceiling plate and extension accessories
following installation instruction provided by
manufacturer.
WARNING:
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
3.
Align RSM with end of NTP pipe.
4.
Thread RSM up onto pipe by turning until hand
tight.
Rough Alignment of RSM
1.
Turn RSM clockwise or counter-clockwise until
front of mount is facing target.
2.
Secure RSM to pipe by turning set screw until tight.
CAUTION:
Overtightening of setscrew can damage threads on
pipe.
3.
Turn security screw using a Phillips screwdriver
until set screw cannot be seen through access hole
in RSM.
3
o
u
n
s t
IMPROPER INSTALLATION CAN
DO NOT OVERTIGHTEN!
7
