n I
t s
l l a
t a
o i
n
n I
t s
u r
t c
o i
2a
Example Only
(Interface bracket
varies dependent
on projector model)
2b
2
R
n
s
1
S
M
E
i l
e t
S
r e
e i
s
P
o r
e j
t c

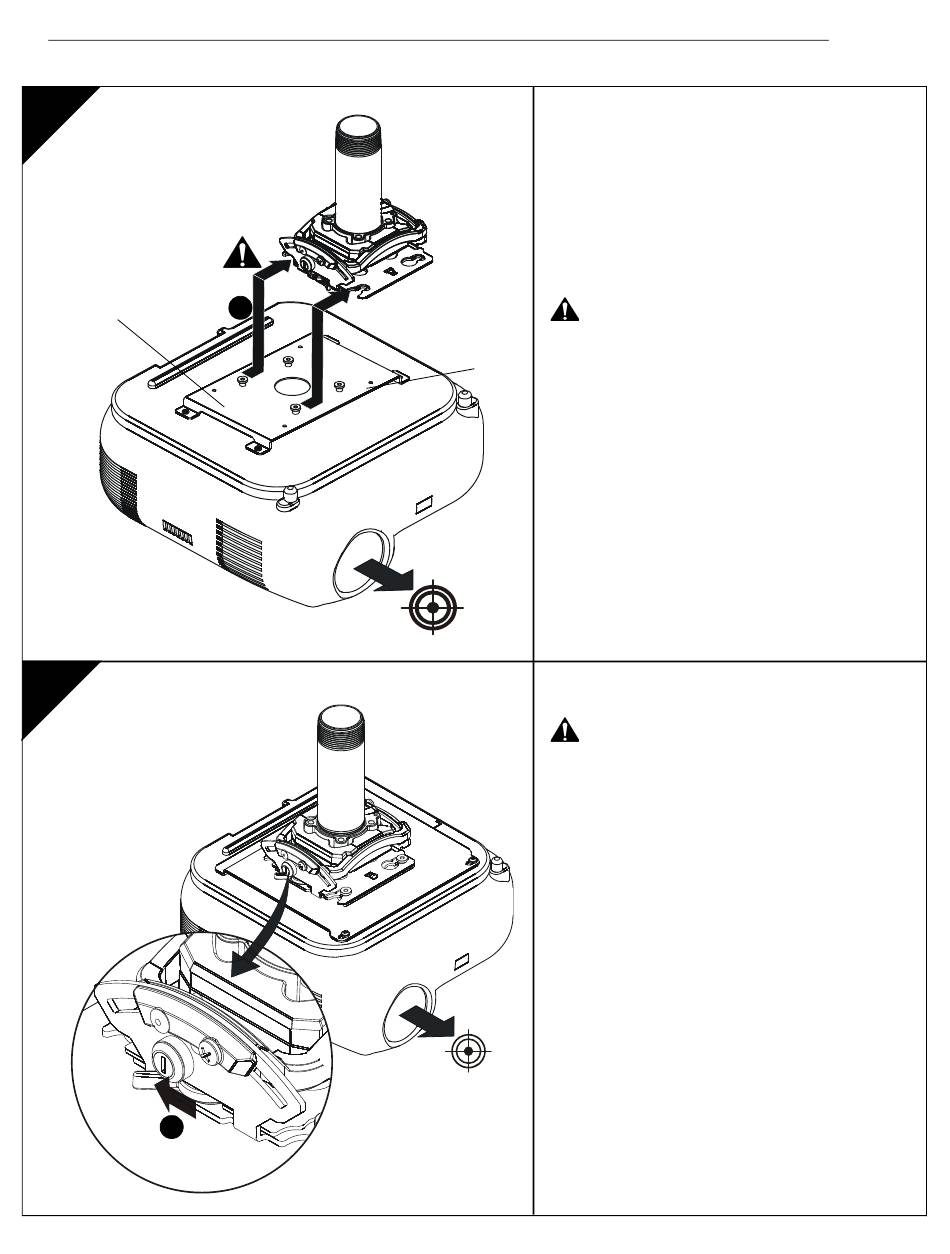

Install Projector With Interface Bracket
1.
Orient projector with interface bracket as shown in
figure 2a at left.
2.
Lift projector so that screws with thumb nuts are
aligned with mounting slots in mount base.
3.
Slide projector with mounting bracket onto mounting
slots in mount base until screws are seated against
the back of mounting slots. See figure 2a and 2b.
(A)
WARNING:
LEAD TO PROJECTOR FALLING RESULTING IN
(B)
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT. Make certain mounting slots in mount
base slide under thumb screws and that screws are
seated in the back of slots.
Securing Projector with Interface Bracket
to RSM.
WARNING:
LEAD TO PROJECTOR FALLING RESULTING IN
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT. Make certain mounting slots in mount
base slide under thumb screws and that screws are
seated in the back of slots.
1.
Verify mounting screws are properly seated in
mounting slots in mount base.
2.
Move locking lever to "Locked" position as shown in
figure 2b at left.
3.
Insert key into lock and turn to secure projector to
mount.
r o
M
o
u
n
s t
IMPROPER INSTALLATION CAN
IMPROPER INSTALLATION CAN
11
