Refer to this Supplement together with the Installation Manual and Instruction Manual.
Diff erences from Installation Manual and Instruction Manual
Slider mounting holes
Accessories
Slider installation procedure

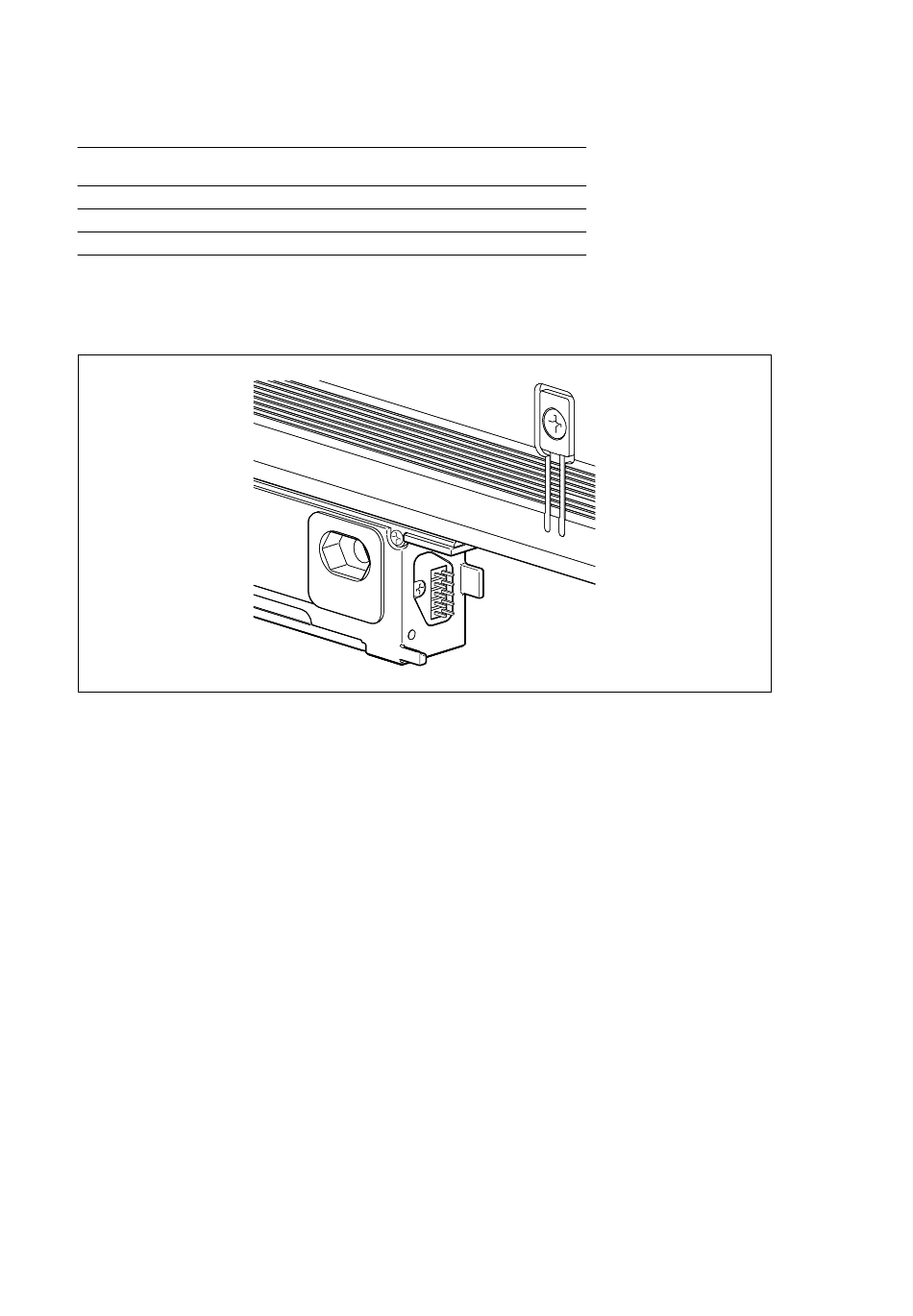

Slider side surface
Slider side surface
Th e shape of the slider side surface was changed to prevent damage to the connector pins.
4.5 × 8.5 long hole → M6
No alumite around the slider mounting holes
(Addition) Rubber bushing: 2, M4 nuts: 2
See the description below.
See the description below.
