Change of hinge side - WFG45

The door can be changed from right-hinged to left-hinged and vice versa as follows:

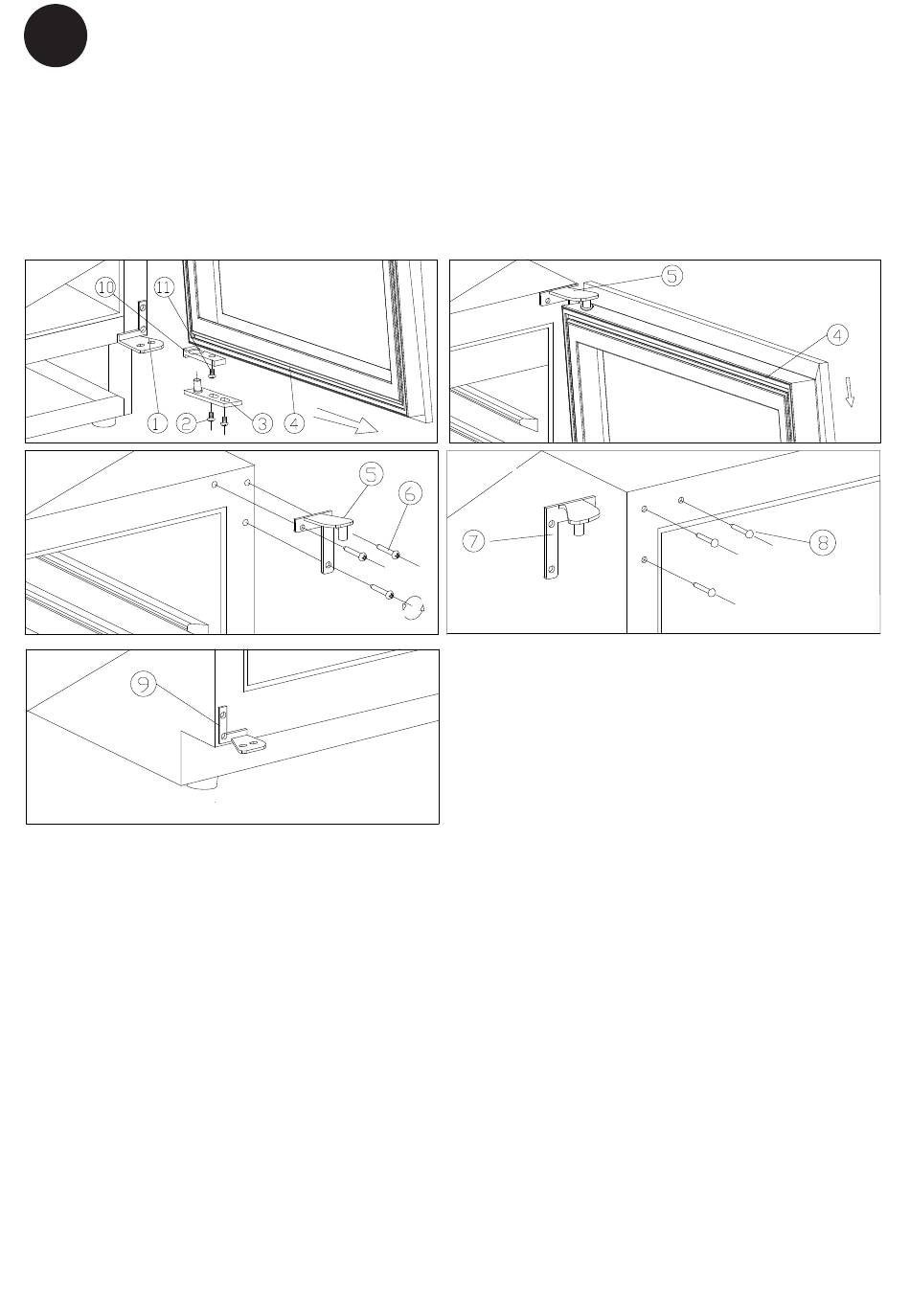

fig. 8.1
fig. 8.3
fig. 8.5
1. Lower hinge (Right)
6. Hinge Screws
10. Door limit device
● 1. Open the door to a 90 degrees angle,
take out the 2 screws (2) from lower door
axis (3), remove the door (4), Remove
the axis plate (3) from the door, (Fig. 8.1).
● 2. Unscrew the screw (11) located under-
neath the doorframe and the limit device
(10), and relocate it at left end side of the
door frame. (Fig. 8.1-2)
● 3. Take out the 3 hinge screws (6) from
the top hinge (right) (5) and remove it.
(Fig. 8.3)
2 . Screws 3 .Door axis
7. Top hinge (Left)
11. Screw
12
fig. 8.2
fig. 8.4
Ensure that the cabinet is not
connected to the mains and
place the cabinet on the back.
SUPPORT THE DOOR !
4. Door
8. Hole cover
● 4. Remove decorative nail (8) from left
top of cabinet and install spare top hinge
(Left) (7) at left top of cabinet with 3
screws. (Fig. 8.4)
● 5. Following the above procedure, install
the spare lower hinge to the left (9). (Fig.
8.5)
● 6. Install and aligned the door.
● 7. Insert the plastic caps to cover the
holes(8).
5. Top hinge (Righ)
9. Lower hinge (Left)
