Superstructure
Boom
11 m – 42 m, five-section, sequence synchronized, full-power boom with A and B
mode. Maximum tip height: 44,6 m.
Boom nose: four nylatron sheaves mounted on heavy-duty tapered roller bearings
with removable pin-type rope guards. Quick-reeve type boom nose.
Fixed swingaway extension
*
10,1 m offsettable lattice swingaway extension. Offsetable 0°, 25° and 45°.
Stows alongside base boom section. Maximum tip height: 54,0 m.
Bifold swingaway extension
*
10,1 m - 17,1 m bifold lattice swingaway extension. Offsetable at 0°, 25° and 45°.
Stows alongside base boom section. Maximum tip height: 61,1 m.
Inserts
*
6,1 m lattice extension inserts. Installs between the boom nose and bifold extension,
non-stowable. Maximum tip height: 73,6 m.
Boom elevation
One double-acting hydraulic cylinder with integral holding valve provides elevation
from -3° to +78°.
Load moment and anti-two block system
Standard "Graphic Display" load moment and anti-two block system with
audio-visual warning and control lever lockout. Tese systems provide electronic
display of boom angle, length, radius, tip height, relative load moment, maximum
permissible load, load indication and warning of impending two-block condition.
Te standard Work Area Definition System allows the operator to pre-select and
define safe working areas. If the crane approaches the pre-set limits, audio-visual
warnings aid the operator in avoiding job-site obstructions.
Cab
Full-vision, all-steel fabricated with acoustical lining and tinted safety glass
throughout. Deluxe seat incorporates armrest-mounted hydraulic single-axis
controllers. Dash panel incorporates gauges for all engine functions. Other standard
features include: hot water heater, cab circulating air fan, sliding side and rear
windows, sliding skylight with electric wiper and sunscreen, electric windshield
wash/wipe, fire extinguisher and seat belt,
Slewing
Planetary swing drive with foot applied multi-disc brake. Spring applied, hydrauli-
cally released swing brake and plunger-type, one position mechanical house lock,
operated from cab. *Optional 360° mechanical swing lock.
Maximum speed: 2,5 RPM.
Counterweight
6 516 kg pinned to structure.
Hydraulic system
Tree main pumps with a combined capacity of 511 LPM.
Maximum operating pressure: 27,6 MPa.
wo individual post pressure compensated valve banks.
Return line type filter with full flow by-pass protection and service indicator.
Replaceable cartridge with micron filtration rating of 5/12/16.
640 L hyd. reservoir. Integral oil cooler. System pressure test ports.
Hoist
Planetary reduction with automatic spring applied multi-disc wet brake.
Grooved drum. Electronic hoist drum rotation indicators, and hoist drum cable
followers.
Maximum Single Line Pull: 8 363 kg.
Maximum Permissible Line Pull:
7 620 kg with standard 6X37 class rope.
7 620 kg. with optional 35X7 class rope.
Maximum Single Line Speed: 153 m/min.
Rope Construction: 6X37 EIPS IWRC,
*35x7 Flex-X, Rotation Resistant
Rope Diameter: 19mm. Rope Length: Main Hoist: 183 m - Optional: 152 m.
Maximum Rope Stowage: 211 m.
CraneSTAR
Crane asset management system.
RT���E
.
air conditioning
Carrier
Carrier frame
Box section frame fabricated from high-strength, low alloy steel.
Integral outrigger housings and front/rear towing, lifting and tie down lugs.
Outriggers
Four hydraulic telescoping single-stage double box beam outriggers with
inverted jacks and integral holding valves. Tree position setting, 0%, 50% and fully
extended. All steel fabricated, quick release type outrigger floats, 610 mm diameter.
Maximum outrigger pad load: 41 731 kg. Controls and crane level indicator located
in cab.
Engine
Cummins QSB 6.7 l diesel, six cylinders, turbocharged, 179 kW
Engine (Tier III):
at 2500 rpm. Maximum torque: 987 Nm at 1500 rpm.
Note: Required for sale outside of North American and European Union countries
Cummins QSB 6.7 l diesel, six cylinders, turbocharged with
Engine (Tier IV):
Cummins Diesel Particulate Exhaust filter/muffler. Meets emissions per U.S.E.P.A.
ier IV and E.U. Stage III B. 179 kW at 2500 rpm. Maximum torque: 990 Nm
at 1500 rpm. Fuel requirement: Maximum of 15 ppm sulphur content (Ultra Low
Diesel Fuel). Note: ier IV engine Required in North American and European
Union countries.
Fuel tank capacity: 280 l.
Transmission
Spicer powershift with 6 forward and 6 reverse speeds.
Front axle disconnect for 4 x 2 travel.
Drive/Steer
4 x 4. Fully independent power steering:
Front: Full hydraulic steering wheel controlled.
Rear: Full hydraulic switch controlled.
Provides infinite variations of 4 main steering modes: front only, rear only, crab and
coordinated. Rear steer centered indicating light. 4 wheel turning radius: 7,1 m.
Axles
Front: Drive/steer with differential and planetary
reduction hubs rigid mounted to frame.
Rear: Drive/steer with differential and planetary
reduction hubs pivot mounted to frame.
Automatic full hydraulic lockouts on rear axle permit 203 mm oscillation only with
boom centered over the front.
Tyres
Std. 29,5 x 25 - 28 bias ply.
Lights
Full lighting including turn indicators, head, tail, brake and hazard warning lights.
Maximum Speed
37 km/h.
Gradeability (theoretical)
75% (Based on 43 830 kg GVW) 29.5 x 25 tires, pumps engaged, 42,0 m boom,
bi-fold extension, aux. hoist and cable, and 59 t hookblock.
Brakes
Full hydraulic split circuit operating on all wheels. Spring-applied, hydraulically
released parking brake.
Electrical system
wo 12 V - maintenance free batteries. 12 V starting and lighting.
Battery disconnect switch.
Optional equipment
*
• Auxiliary Hoist Package (includes model GHP30A auxiliary hoist with electronic
hoist drum rotation indicator, hoist drum cable follower, 152 m of 19 mm 35 x 7
class wire rope, auxiliary single sheave boom nose. • Auxiliary Light and Conve-
nience Package: includes superstructure mounted amber flashing light, in-cab LMI
light bar, and dual base boom mounted floodlights, rubber mat for stowage trough
• CE Mark Conformance • Cross axle differential locks (front and rear)
• Manual pump disconnect • Pintle hook - rear • 360⁰ NYC style positive swinglock
• PA event recorder • Hydraulic removable counterweight
*Further optional equipment upon request.

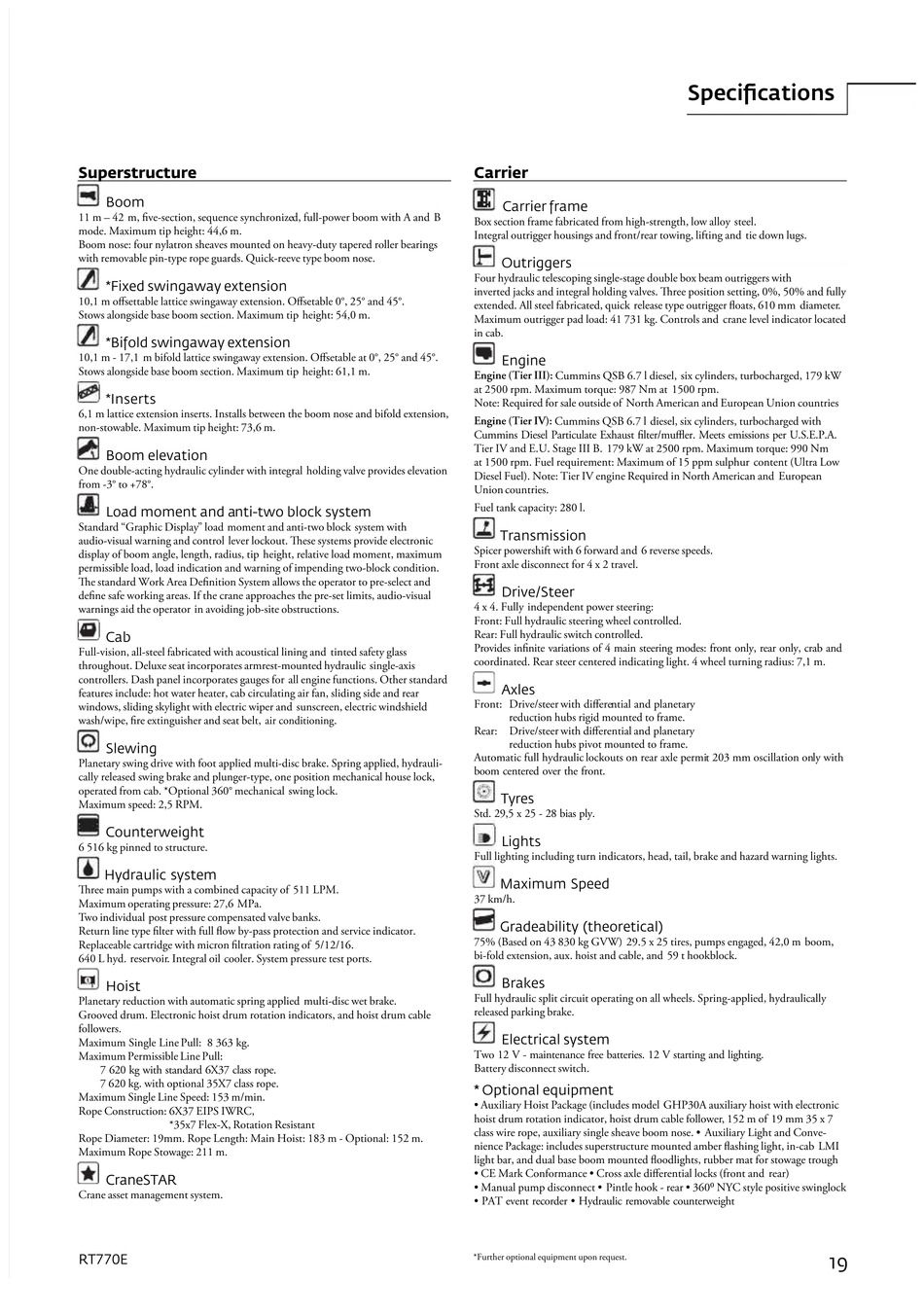

Specifications
19
