1
Motor Housing Assembly . . . . . . . . . AW434–A40
2
Grease Fitting . . . . . . . . . . . . . . . . 130SR–188
3
Nameplate . . . . . . . . . . . . . . . . . . . AW434C–301
3A
Warning Label . . . . . . . . . . . . . . . AW434–99
4
Reverse Valve Bushing . . . . . . . . . 231–A330
♦
5
Reverse Valve Bushing Seal (2)
6
Throttle Valve Assembly . . . . . . . . 404–50–70A
♦
7
Throttle Valve O–ring . . . . . . .
♦
8
Throttle Valve Spring . . . . . . . . . . R1A–51
9
Throttle Valve Stem . . . . . . . . . . . 402–302
10
Air Strainer Assembly . . . . . . . . . . 402–565
11
Trigger . . . . . . . . . . . . . . . . . . . . . 705–93
12
Trigger Pin . . . . . . . . . . . . . . . . . . 533–656
13
Reverse Valve . . . . . . . . . . . . . . . . 231–329A
♦ 14
Reverse Valve Detent Ball . . . . . . . AV1–255
♦ 15
Reverse Valve Detent Spring . . . . . 231–664
16
Reverse Valve Knob . . . . . . . . . . . 231–666
17
Reverse Valve Knob Screw . . . . . . 231–665
18
Oil Chamber Plug . . . . . . . . . . . . . R0H–377
18A
Oiler Felt . . . . . . . . . . . . . . . . . . . . 231–63
18B
Plug . . . . . . . . . . . . . . . . . . . . . . . 502–95
19
Rotor . . . . . . . . . . . . . . . . . . . . . . . . .
♦ 20
Rear Rotor Bearing . . . . . . . . . . . . . .
♦ 21
Front Rotor Bearing . . . . . . . . . . . . . 4U–97
♦ 22
Rear Rotor Bearing Retainer . . . . . . .
23
Cylinder . . . . . . . . . . . . . . . . . . . . . .
24
Cylinder Dowel . . . . . . . . . . . . . . . . . 230–98
♦ 25
Vane Packet (set of 6 Vanes) . . . . . . . 2131–42A–6
26
Front End Plate . . . . . . . . . . . . . . . . . 231–11
27
Rear End Plate . . . . . . . . . . . . . . . . .
♦ 28
End Plate Gasket . . . . . . . . . . . . . . . .
29
Motor Clamp Washer (2) . . . . . . . . . .
* Not illustrated.
♦ Indicates Tune–up Kit part.

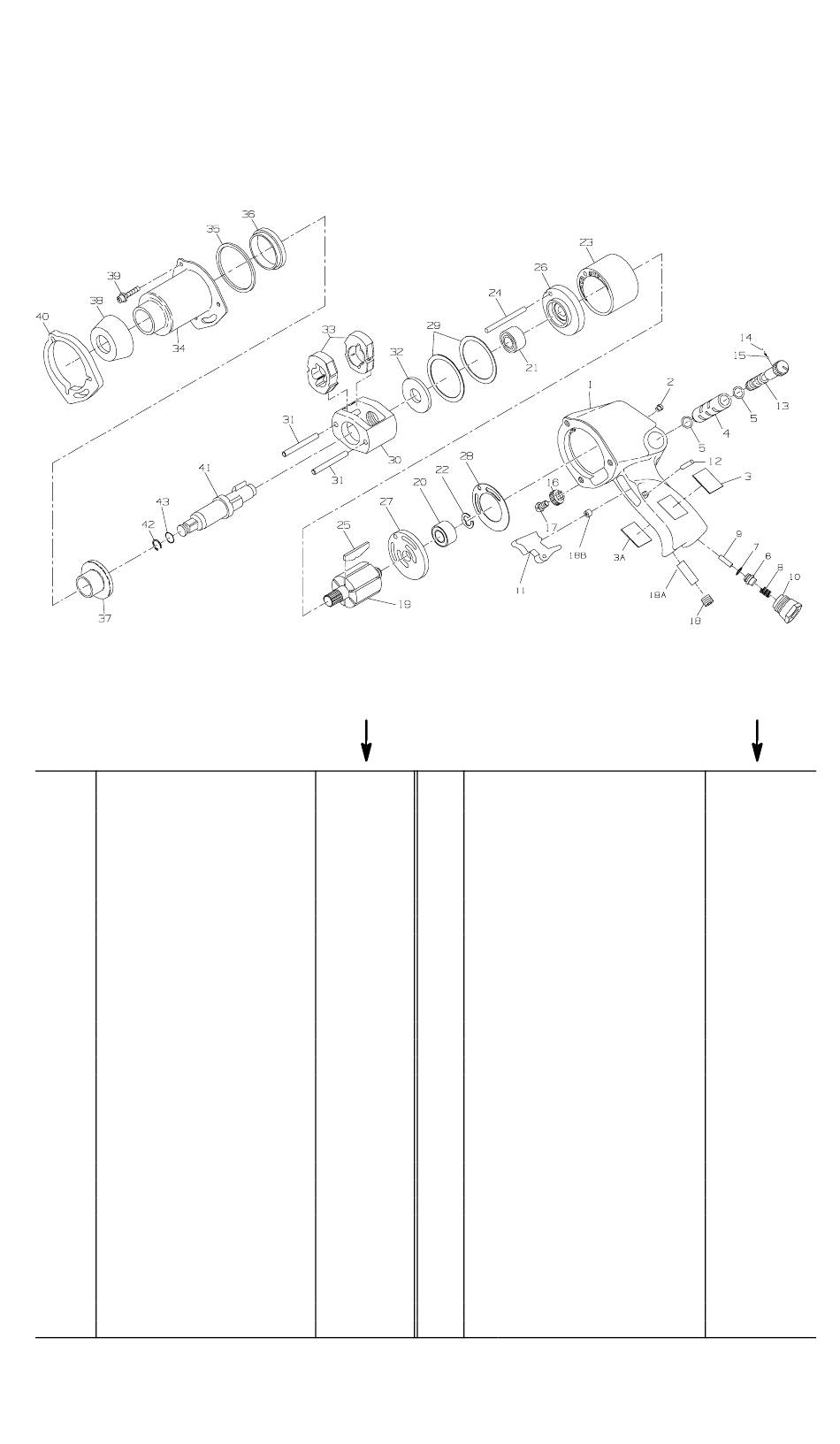

MAINTENANCE INSTRUCTIONS
SECTION D'ENTRETIEN
WARTUNG
SEZIONE DI MANUTENZIONE
INSTRUCCIONES DE MANTENIMIENTO
ONDERHOUD
PS3–67
405–159
231–53
402–22
402–118
231XP–3
231–12
231–283
227–207
PART NUMBER FOR ORDERING
REFERENCE POUR COMMANDE DE LA PIECE
BESTELLNUMMER
NUMERO DEL PEZZO PER L'ORDINAZIONE
SIMBOLO DE LA PIEZA PARA PEDIDOS
BESTELNUMMERS
Hammer Frame Assembly . . . . . . . . . . . .
30
Hammer Frame . . . . . . . . . . . . . . . . . . 2131–703
31
Hammer Pin (2) . . . . . . . . . . . . . . . . . 231–704
32 Hammer Frame Rear Washer . . . . . . . . . .
33 Hammer (2) . . . . . . . . . . . . . . . . . . . . . . .
34 Hammer Case Assembly . . . . . . . . . . . . .
♦ 35
Hammer Case Gasket . . . . . . . . . . . . . 230–36
36
Hammer Case Pilot . . . . . . . . . . . . . . . 405–800
37
Hammer Case Bushing . . . . . . . . . . . . 705–941
38
Hammer Case Shield . . . . . . . . . . . . . . AW234–109
39 Hammer Case Cap Screw (3) . . . . . . . . .
40 Housing Band . . . . . . . . . . . . . . . . . . . . .
41 Anvil Assembly (1/2" Square Drive) . . .
♦ 42
Socket Retainer . . . . . . . . . . . . . . . . . . 231–425A
♦ 43
Retainer O–ring . . . . . . . . . . . . . . . . . R1A–159
*
2" Extended Anvil Assembly (for
AW434C–2) . . . . . . . . . . . . . . . . . . . . . .
*
Socket Retainer . . . . . . . . . . . . . . . . . . 231–425A
*
Retainer O–ring . . . . . . . . . . . . . . . . . R1A–159
*
Tune–up Kit (includes illustrated parts
5 [2], 7, 8, 14, 15, 20, 21, 22, 25, 28, 35,
42, and 43) . . . . . . . . . . . . . . . . . . . . . . .
*
Overhaul Kit (includes illustrated parts
33 [2], 35, 39 [3] and 41) . . . . . . . . . . . .
*
Overhaul Kit (for 2" extended anvil)
(includes illustrated parts 33[2], 35,
39[3], and 2" Extended Anvil Assembly
part number 231B–A414) . . . . . . . . . . . .
*
Tube of Grease . . . . . . . . . . . . . . . . . . . .
*
Lube Injector . . . . . . . . . . . . . . . . . . . . . .
*
Bottle of Oil . . . . . . . . . . . . . . . . . . . . . .
25
(TPA1776)
231XP–A703
231–706
231XP–724
AW434–A727
AW434–638
AW434–110
231B–A626
231B–A414
AW434–TK
AW434C–OHK
AW434C–OHK2
405–MG1
230–228
405–M01
