MAC TOOLS AW434C-Serie Betriebshandbuch Seite 2

FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
WARNING
Always wear eye protection
when operating or perform-
ing maintenance on this tool.
WARNING
Air powered tools can vibrate
in use. Vibration, repetitive
motions or uncomfortable
positions may be harmful to
your hands and arms. Stop
using any tool if discomfort,
tingling feeling or pain occurs.
Seek medical advice before re-
suming use.
WARNING
Keep body stance balanced
and firm. Do not overreach
when operating this tool.
SETTING THE POWER REGULATOR
Impact wrenches are not torque control devices.
Fasteners with specific torque requirements must be
checked with suitable torque measuring devices after
installation with an impact wrench.
Models AW434C and AW434C–2 Impact Wrenches
incorporate a power regulator into the reverse mechanism
that allows the operator to have either full power output in
one direction and reduced power output in the other
direction or full power output in both directions. To adjust
the power, proceed as follows:
For full power in both directions, rotate the reverse
valve until the notch on each end of the reverse valve
aligns with the Letter H on each side of the housing.
The Letters H thru L on the
housing are only for reference
and DO NOT denote a specific
power output. L designates
the lowest power output while
H denotes the highest.

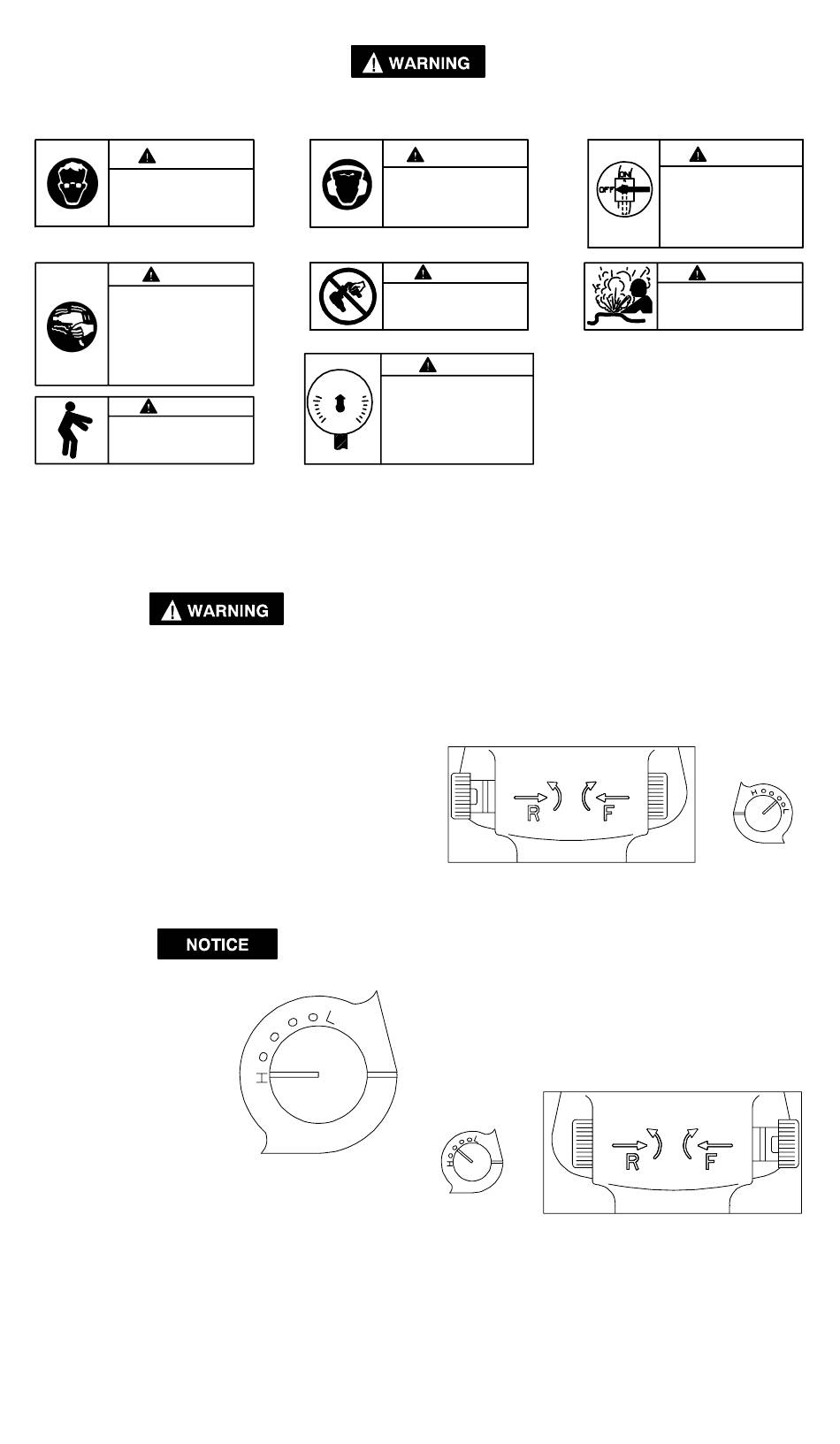

WARNING LABEL IDENTIFICATION
Always wear hearing
protection when operating
this tool.
Do not carry the tool by the
hose.
90 psig
Operate at 90 psig (6.2 bar/
(6.2bar/620 kPa)
620 kPa) Maximum air pres-
sure.
ADJUSTMENTS
(Dwg. TPD1978)
WARNING
WARNING
WARNING
For reduced power in the forward direction and full
power in the reverse direction, push the reverse valve
inward on the right side of the tool and rotate the reverse
valve until the notch on the right side aligns with the
desired letter on the right side. This provides reduced
power in forward but full power in reverse when the
reverse valve is pushed in the opposite direction.
See Dwg. TPD1979.
For reduced power in the reverse direction and full
power in the forward direction, push the reverse valve
inward on the left side of the tool and rotate the reverse
valve until the notch on the left side aligns with the
desired letter on the left side. This provides full power in
forward but reduced power in reverse when the reverse
valve is pushed the opposite direction.
See Dwg. TPD1980.
2
WARNING
Always turn off the air sup-
ply and disconnect the air
supply hose before instal-
ling, removing or adjusting
any accessory on this tool,
or before performing any
maintenance on this tool.
WARNING
Do not use damaged, frayed
or deteriorated air hoses
and fittings.
(Dwg. TPD1979)
(Dwg. TPD1980)
