KOMPAN TRIACTION Montageanleitung Seite 3

5

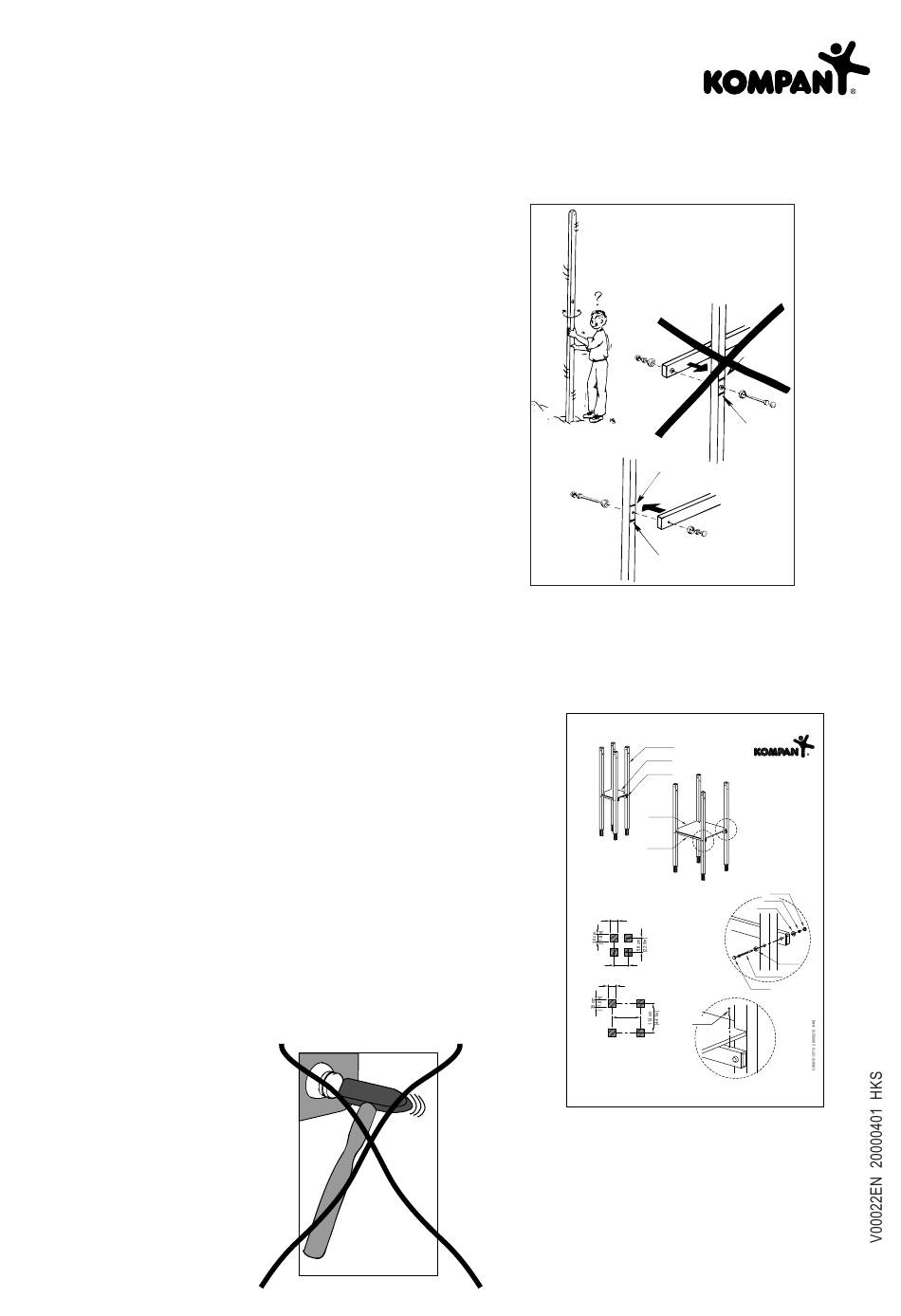

Earthworks
Then dig the holes. (Make them an adequate size).
Find the correct posts, assemble the steel footings
and place them correctly according to the drawings
so that the spot-drilled holes point the right way.
Then the towers must be assembled with the
floor support battens and put into the holes in
the ground.
Floor plates and cross beams are then assembled.
Do not forget to check with the spirit level before
going on.
The M-nos. are to be installed this in the same
order of succession as in folder.
6
Recommended order of assembly
M-numbers are to be assembled now. You will find an
assembly instruction with a list of fittings for each M-number.
Important! Do not put DO-NUT caps on the DO-NUTs
until the TRIACTION combination is completely
assembled and all bolts are tightened.
TRIACTION
T850001-0001
B850200-09
M850101-3713
B850200-09
M850102-3713
M850103-3713
M850201-3713
M850202-3713
B850100-09
B
M850203-3713
B850100-09
A
A100-15
400010
A x 4
A100-37
30 cm
[11.8in]
56 cm
[22.0in]
M10x155 MB
30 cm
A100-15
[11.8in]
B x 4
112 cm
[44.1in] M5,5x50
A100-37
1/1
3/4
