3

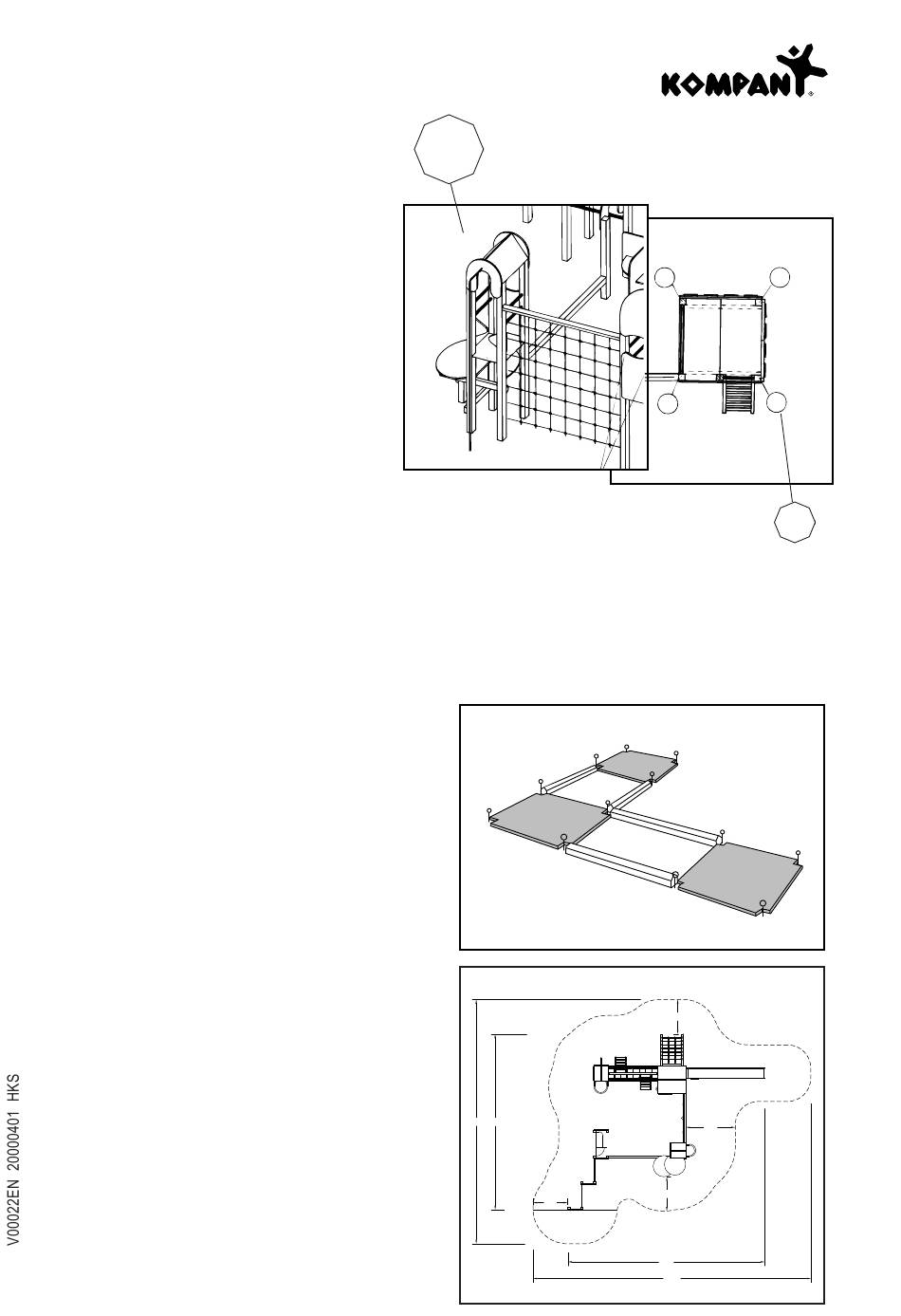

Assembly
On the installation plans you can see how the
combination is built up.
The combination is made up of a number of
part elements, M-numbers. In addition each
tower is marked A, B, etc. On the packing list
you will notice which package must be used
for each tower. All posts are spot-drilled and
marked A1,A2...B1,B2 etc. (see plan).
4

How to start

Place floors and crossbars, if any, on the ground
according to the plan drawing.
Make sure that there is adequate space for staircase,
ladder, slide etc. before you start digging. Also make
sure that all safety zones around the combination are
observed.
The safety zones are based on the EN 1176 standard.
Please note that some countries require conformance
with other standards, which may stipulate larger safety
zones.
Mark the position of the holes for posts at the corner
of floors. You may draw a string before removing the
floors and crossbars again.
2/4
M853-01
E-F
B-D
M864-01
M853-01
D
M861-01
B
M812-01
M818-01
M813
M842-01
A-B
M834-01
1064 766
150
TRIACTION
A1 A2
A4
A3
A4
150
217
150
858
1209
