KOMPAN ROBINIA Montageanleitung

1

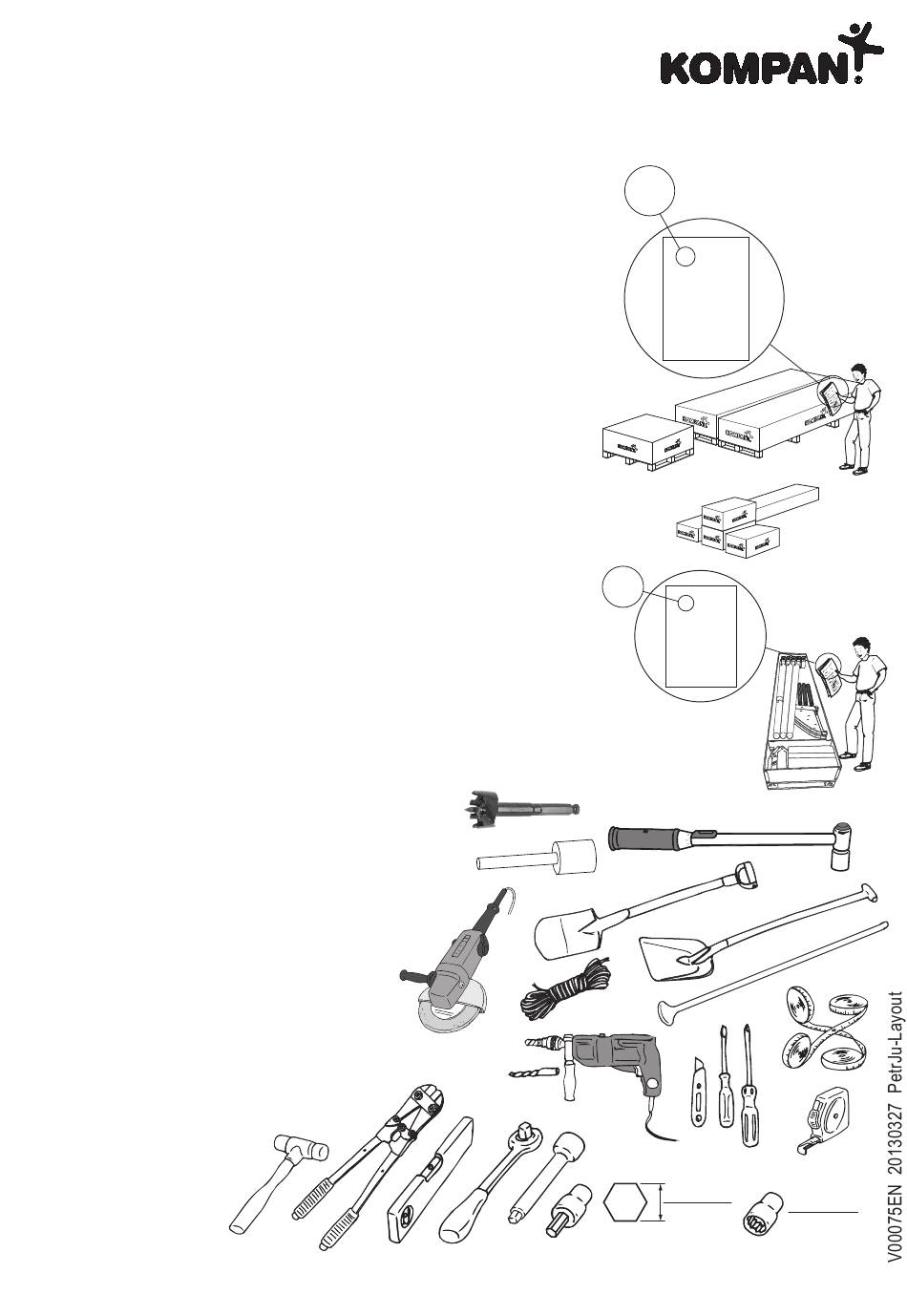

Installation of KOMPAN ROBINIA playground
These instructions describe installation of KOMPAN ROBINIA playground.
NB! Read this instructions before commencing installation and do
not unpack all packages straight away.
In addition to these general instructions you will find following
documentation:
- List of packages, which is a complete list of all the packages to be
- used in the installation.
- Product guide, containing drawings of assembled product.
- Installation instructions.
All the packages are furnished with lables carrying reference
numbers.
Use the list of packages to check that all the packages are present
before starting installation.
Then check the contents of each box using the list of contents, which
you will find inside the top of the box.
2
Tools
The following tools are required for installation:
- Mechanical and/or manual digging tools
- (shovel, spade, post hole digger tamping bar)
- Measuring tape*
- Stepladder
- Spirit levet
- Drill set
- Grinder + Cutting disc + Sanding disc
- Clamp
- Ratchet spanner with extension*
- Rubber mallet
- Hexagon key set*
- Drilling machine
- Direction indicator (A173095)
- Selfeed bit 1-½ʺ (A173094)
- Bits set
- Bit adaptor
- Knife
- Screwdriver
- Torque wrench
*) Metric
Copyright©KOMPAN A/S
A-xxxxx
X-xxxxx
A-xxxxx
AC-xxxx
1/5
GXY908000-3717 MINKAR INGROUND
Quantity Reference Description
-------- ------------------ ----------------------------
1 A801044-27 ROCKING TUPE
1 A801104-51 JACOB´S LADDER
1 A900042-51 PIPE FZV
1 A900043-51 PIPE FZV
1 A900061-51 PIPE FZV
1 A900062-51 PIPE FZV
1 X900200-01 PLAYSHELL 1 WITH CHAINS
1 X900200-02 PLAYSHELL 2 WITH CHAINS
1 X900200-03 PLAYSHELL 3 WITH CHAINS
1 X900600-01 CLIMBING WALL
1 X900600-02 PLAY SHELL WITH ROPES
1 X908000-01 BOX 1 MINKAR (STEP 1+3)
1 X908000-02 BOX 2 MINKAR (STEP 1+3)
1 X908000-03 BOX 3 MINKAR (STEP 2)
X908000-01 BOX 1 FOR MINKAR (STEP 1+3)
Quantity Reference Description
-------- ------------------ ------------------------------
1 A801042-51 METAL SUPPORT ROCKING TUBE
1 A900045-51 PIPE FZV
1 A900048-51 PIPE FZV
2 A801035-51 STEEL ANCHORING
4 A700001-51 EXTENSION POLE
1 AC801005-99 POLE 10 -5
1 AC908001-99 POLE A1 MINKAR
1 AC908002-99 POLE A2 MINKAR
1 AC908003-99 POLE A3 MINKAR
1 A900033-51 METAL L -PROFILE
3 A801009-51 ANCHORING
13 mm
3 mm
17 mm
6 mm
19 mm
24 mm
