RCF S.p.A. would like to thank you for having purchased this product, which
has been designed to guarantee reliability and high performance.
AM 2160 and AM 2320 are mixer-amplifiers with 4 mic-line audio inputs on removable
connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g.
CD players, tuners, etc.).
Both the models have identical features, but the nominal power: AM 2160 is a 160 W
amplifier; AM 2320 is a 320 W amplifier.
The amplifier output is available either for low impedance loudspeakers (min. 4 Ω) or 100
- 70 V constant voltage line (for loudspeakers having 100 - 70 V transformers).
Input 1 has a signal detection circuit ('VOX') providing automatic priority operation.
All inputs 1, 2, 3 and 4 can access the priority through an external command (connected to
the removable connector). Inputs 2 and 3 also have an RJ 45 socket for quick connection
of an RCF BM 3001 paging microphone (through CAT5 cable).
The MUSIC ON HOLD aux output allows to send the music (the output signal of the device
connected to the AUX INPUT A) to additional amplifiers, mixers, phone systems ('music on
hold' function), etc.
The 4 mic.-line inputs have a common 'presence' control and separate high-pass filters that
are useful for improving speech intelligibility.
The 2 aux inputs have independent tone controls (common for both aux inputs).
Front panel LED's indicate the device state (ON, PROT), the priority activation (PRIOR) and
the signal level (SIG/PK).
1
2
1

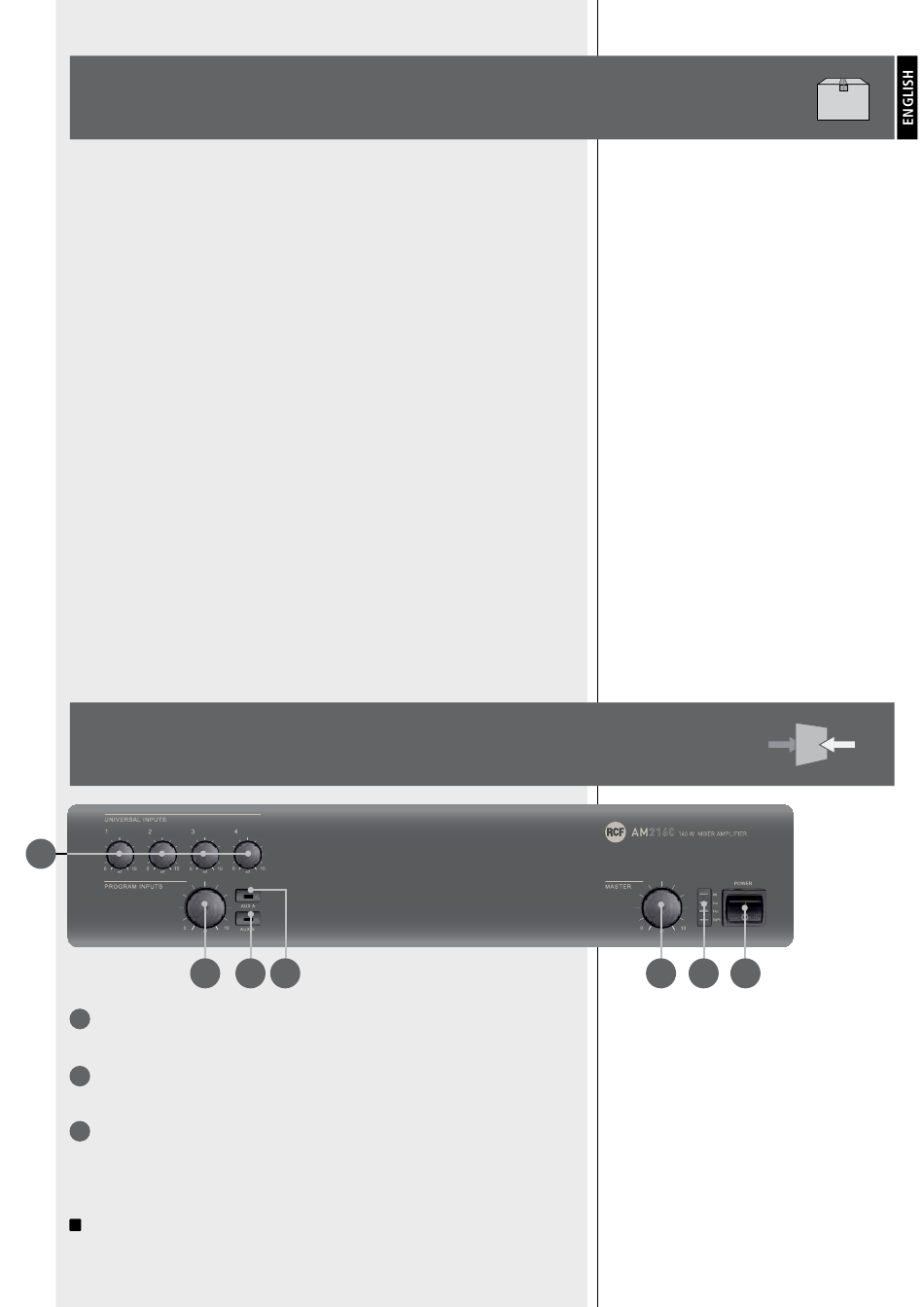

VOLUME CONTROLS FOR EACH UNIVERSAL INPUT (1, 2, 3, 4).
Note: unused channels should always be turned counterclockwise (to 0).
2 AUX INPUT VOLUME CONTROL.
Note: turn counterclockwise (to 0) if aux inputs are not used.
3 AUX A BUTTON (with LED).
It turns on (LED is lit) / off the AUX INPUT A to the internal amplifier (and PRE OUT).
If activated, the AUX INPUT B signal will not be sent to the internal amplifier (the AUX B
button LED will turn off).
i
The AUX INPUT A signal is always sent to the MUSIC ON HOLD output (that is not
affected by the AUX A and AUX B buttons).
4 3
PRODUCT
INFORMATIONS

FRONT PANEL

5 6 7
5
