IMPORTANT: This manual section is for qualified personnel only.
The following instructions are to be ignored by the user.
Make sure the device is not connected to the mains (unplug the power supply cable).
Remove the lid.

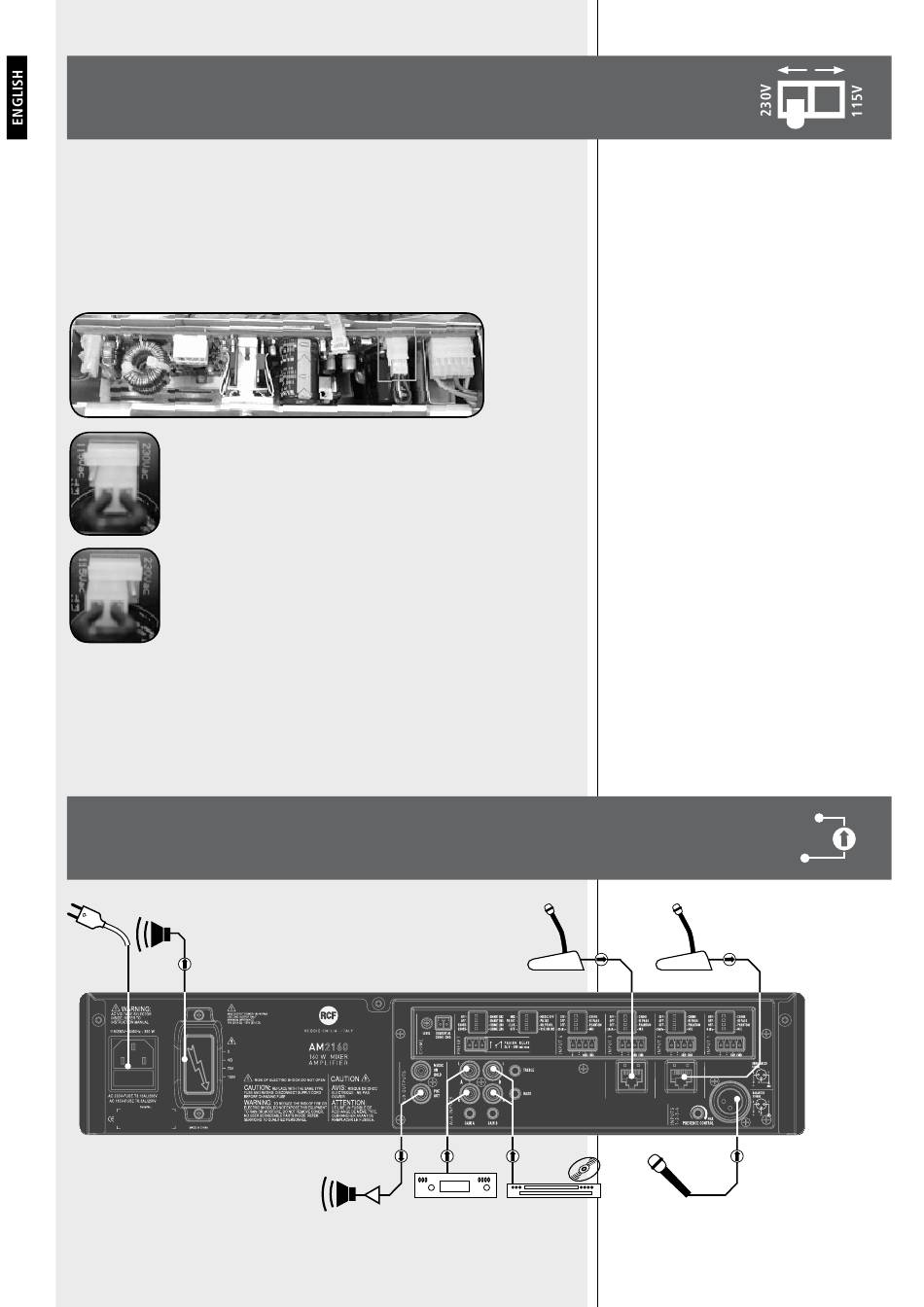

The voltage change connector is highlighted by a square
If the mains voltage is 230 V, set the connector to the 230Vac
position (see the picture 2), according to the PCB indication (looking
at the connector front, the central pin is connected to the right one).
If the mains voltage is 115 V, set the connector to the 115 Vac
position (see the picture 3), according to the PCB indication (looking
at the connector front, the central pin is connected to the left one).
Refit the device lid.
Before connecting the device to the mains, make sure that the fuse (inside the IEC power
supply connector of the rear panel, see 25) is the correct current rating for the mains
voltages (read the fuse indication below the connector).
12
POWER SUPPLY
VOLTAGE CHANGE
.
CD/DVD CD/DVD
EXAMPLE OF
CONNECTION
BM 3001 BM 3001
