2.5 M.2 WiFi/BT Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key
E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).
* The M.2 socket does not support SATA M.2 SSDs.

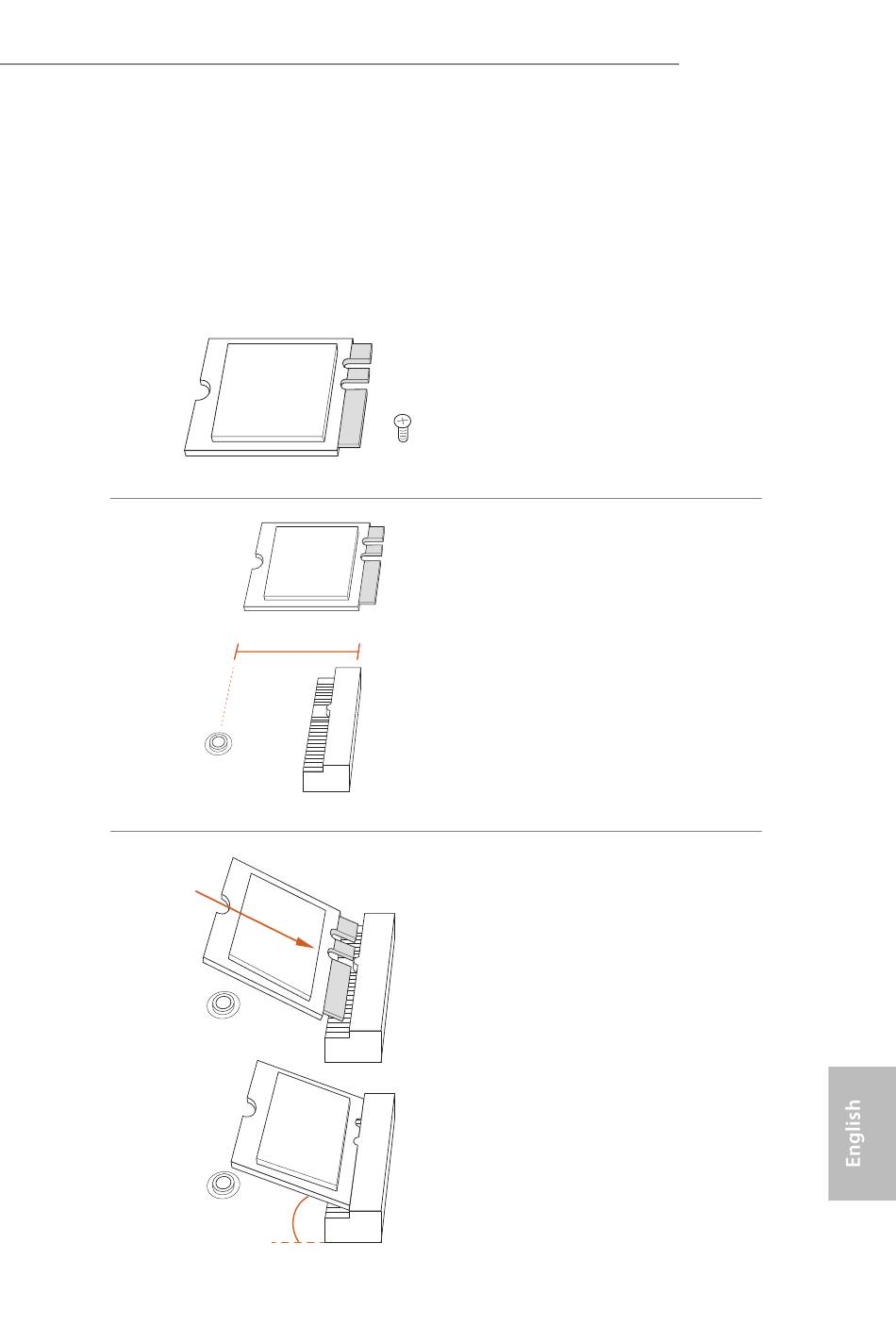

Installing the WiFi/BT module
PCB Length: 3cm
Module Type: Type2230
A
A
A
20
o
Step 1
Prepare a type 2230 WiFi/BT module
and the screw.
Step 2
Find the nut location to be used.
Step 3
Gently insert the WiFi/BT module
into the M.2 slot. Please be aware
that the module only fits in one
orientation.
J5005-ITX
J4105-ITX
