2.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these headers and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

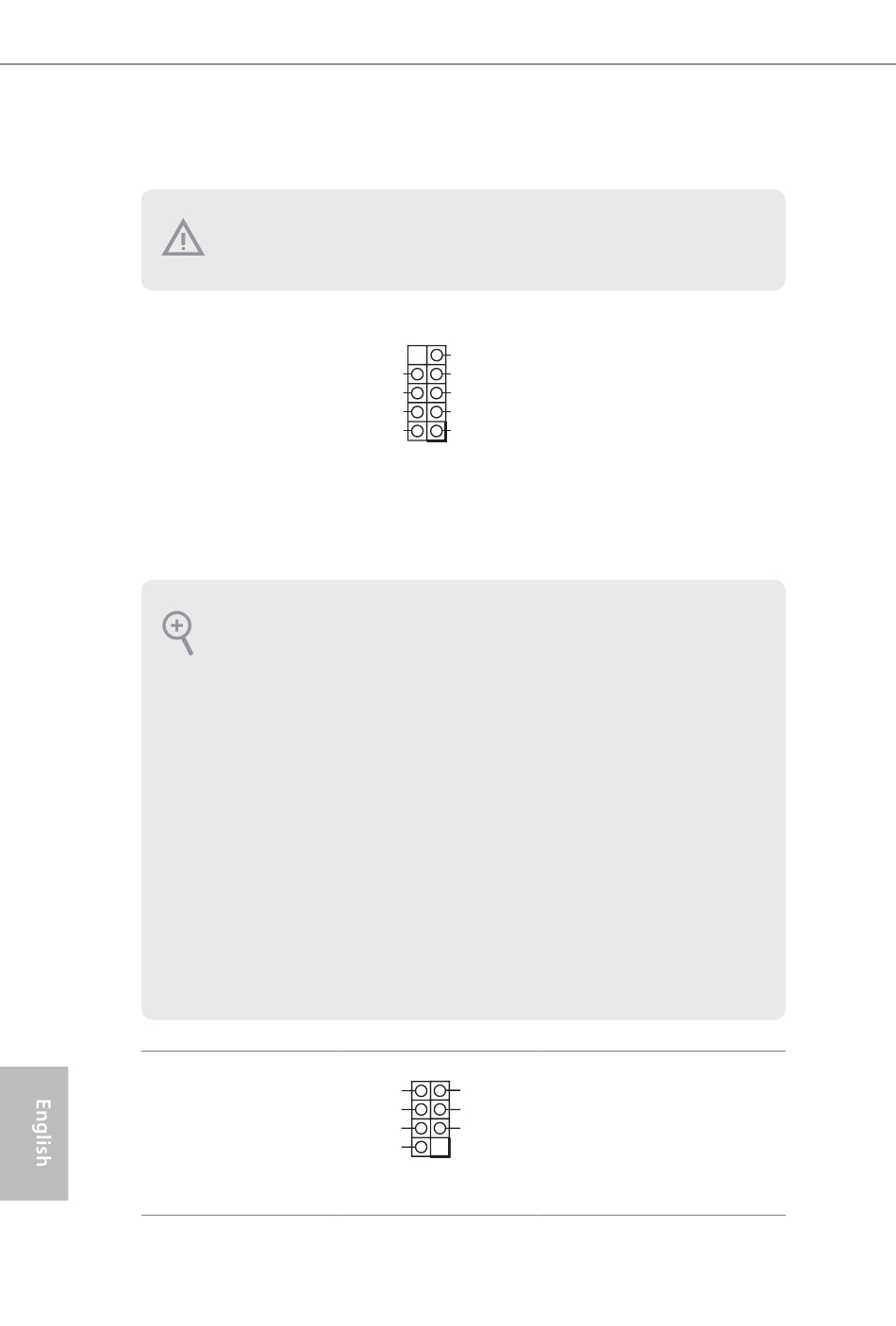

System Panel Header
(9-pin PANEL1)
(see p.1, No. 3)
PWRBTN (Power Button):
Connect to the power button on the chassis front panel. You may configure the way to
turn off your system using the power button.
RESET (Reset Button):
Connect to the reset button on the chassis front panel. Press the reset button to restart
the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED is on when
the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state.
The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED is on when
the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists
of power button, reset button, power LED, hard drive activity LED, speaker and etc.
When connecting your chassis front panel module to this header, make sure the wire
assignments and the pin assignments are matched correctly.
Chassis Intrusion and
Speaker Header
(7-pin SPK_CI1)
(see p.1, No. 5)
14
GND
GND RESET#
PWRBTN# GND
HDLED-
PLED-
PLED+ HDLED+
1
DUMMY
SPEAKER
GND
DUMMY
DUMMY
SIGNAL
+5V
1
Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
Please connect the
chassis intrusion and the
chassis speaker to this
header.
