List Of Parts - STAMOS Operator Bedienungsanleitung

1. Operation mode switch „Grind" („grinding" – protection off) / „4-8" („welding" – protection on –
shading degree adjustable in the range of 4-8) / „9-13" („welding" –protection on – shading degree
adjustable in the range of 9-13)
2. Shading level adjustment knob ("Shade")
3. Photosensitivity adjustment knob („Sensitivity")
4. Delay time switch „Delay": „Short" (short delay time) / „Middle" (medium delay time) /
„Long" (long delay time)
5. TEST – battery test button
6. BATTERY – battery level indicator
7. Battery compartment
8. Auto-darkening filter clips (fixing elements)
IV BlackONE | Metalator | Constructor
1. Operation mode switch „MODE"
(„grinding" – protection off) / „4-8"
(„welding" – protection on – shading degree
adjustable in the range of 4-8) / „9-13"
(„welding" –protection on – shading degree
adjustable in the range of 9-13)
2. Shading level adjustment knob ("Shade")
3. Photosensitivity adjustment knob („Sensitivity")
4. Delay time switch „Delay": "Short" (short delay
time) / „Long" (long delay time)
5. TEST – battery test button
6. BATTERY – battery level indicator
7. Battery compartment
8. Auto-darkening filter clips (fixing elements)
Constructor: The mask is equipped with special handles for mounting on the helmet:
The welding mask can be fitted with an accessory glass magnifying. The glass slides into the appropriate
handles located inside the cassette of a self-dimming filter.
MAINTENANCE
External glass replacement
The external glass must be replaced if it's damaged (cracked, scratched, dirty, punctured, etc.)
In order to replace the glass, remove the entire shield cartridge, releasing it from the latches – doing so, be
careful not to damage the wires connecting the filter pack with the adjustment knobs and buttons on the
20
mask. Next, remove the external glass and replace it with a new one.
Internal glass replacement:
The internal glass must be replaced if it's damaged (cracked, scratched, dirty, punctured, etc.)
In order to replace the internal glass, unlatch it from the clamps located on the sides of the shield cartridge
and insert a new glass.
Battery testing: Applies to models Blaster | Eagle Eye | Firestarter 500 | Legend| Pokerface | Carbonic
| BlackONE | Metalator | Constructor:
after pressing the „TEST" button, the filter should go dark and the battery level indicator should glow
red. If the indicator does not glow, or the light is very weak, it is necessary to replace the filter cartridge
batteries (the battery compartment is specified in this manual). If the indicator glows, but the filter fails to
darken, it means there is a problem with the auto-shading filter, which should no longer be used.

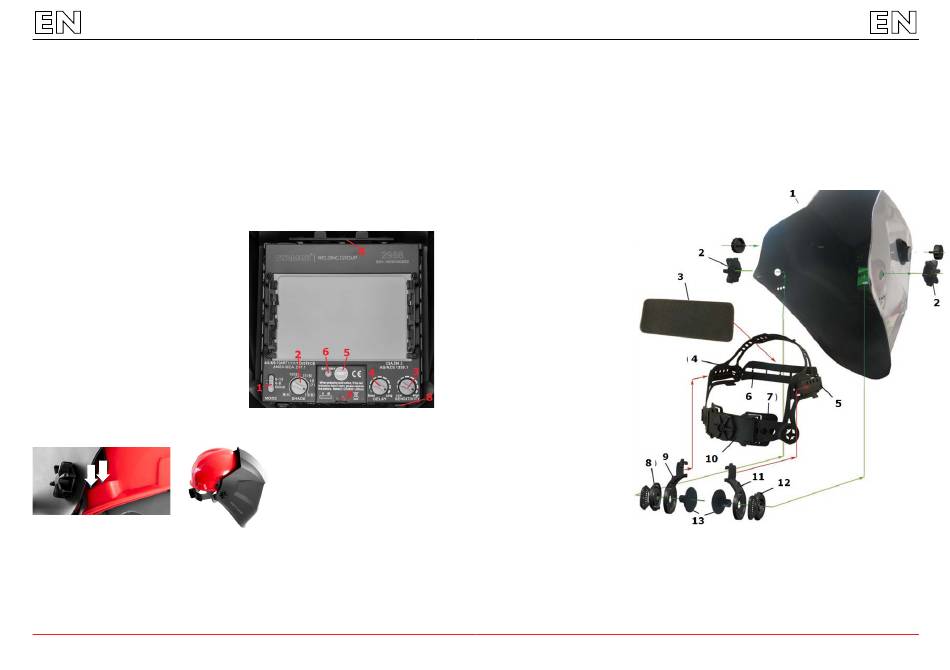

LIST OF PARTS

1. welding mask
2. fixing nuts
3. sweat protector
4. left band
5. right band
6. front band
7. rear flexible band
8. left inclination angle adjustment ring
9. left band fastening
10. band length adjustment
11. right band fastening
12. right inclination angle adjustment ring
13. screws fixing the band to the mask
Rev. 06.09.2017 Rev. 06.09.2017
