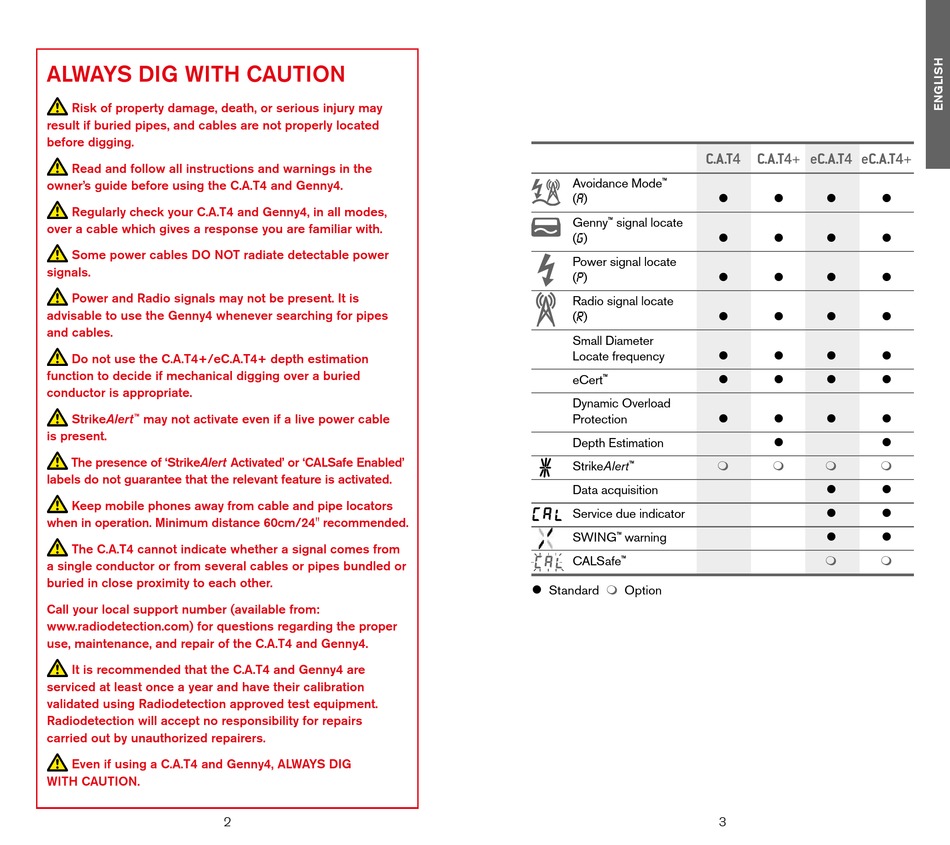

ALWAYS DIG WITH CAUTION
Risk of property damage, death, or serious injury may
result if buried pipes, and cables are not properly located
before digging.
Read and follow all instructions and warnings in the
owner's guide before using the C.A.T4 and Genny4.
Regularly check your C.A.T4 and Genny4, in all modes,
over a cable which gives a response you are familiar with.
Some power cables DO NOT radiate detectable power
signals.
Power and Radio signals may not be present. It is
advisable to use the Genny4 whenever searching for pipes
and cables.
Do not use the C.A.T4+/eC.A.T4+ depth estimation
function to decide if mechanical digging over a buried
conductor is appropriate.
StrikeAlert may not activate even if a live power cable
™
is present.
The presence of 'StrikeAlert Activated' or 'CALSafe Enabled'
labels do not guarantee that the relevant feature is activated.
Keep mobile phones away from cable and pipe locators
when in operation. Minimum distance 60cm/24" recommended.
The C.A.T4 cannot indicate whether a signal comes from
a single conductor or from several cables or pipes bundled or
buried in close proximity to each other.
Call your local support number (available from:
www.radiodetection.com) for questions regarding the proper
use, maintenance, and repair of the C.A.T4 and Genny4.
It is recommended that the C.A.T4 and Genny4 are
serviced at least once a year and have their calibration
validated using Radiodetection approved test equipment.
Radiodetection will accept no responsibility for repairs
carried out by unauthorized repairers.
Even if using a C.A.T4 and Genny4, ALWAYS DIG
WITH CAUTION.
2
C.A.T4 C.A.T4+ eC.A.T4 eC.A.T4+
Avoidance Mode
™
( A )
Genny ™ signal locate
( G )
Power signal locate
P
( )
Radio signal locate
( R )
Small Diameter
Locate frequency
eCert
™
Dynamic Overload
Protection
Depth Estimation
StrikeAlert
™
Data acquisition
Service due indicator
SWING warning
™
CALSafe
™
 Standard  Option
   
   
   
   
   
   
   
 
   
 
 
 
 
