2.2

Connectors and interfaces

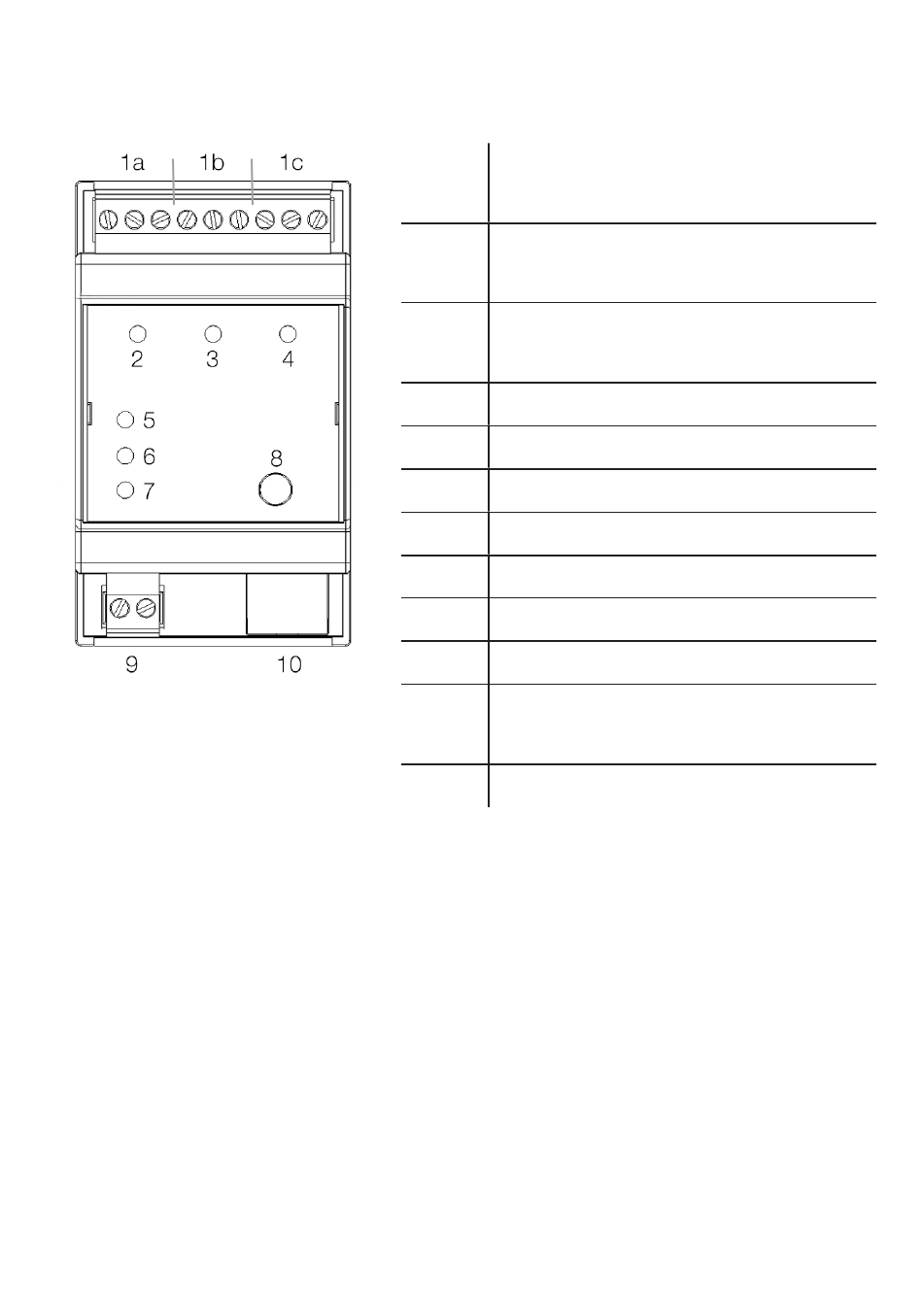

View from top
*) LED is off: relay is inactive
NO (normally open) = not connected to COM
NC (normally closed) =connected to COM
COM = common
LED is on: relay is active
NO (normally open) = connected to COM
NC (normally closed) = not connected to COM
COM = common
1a Relay output 1
(NO/NC/COM left to right *)
1b Relay output 2
(NO/NC/COM left to right *)
1c Relay output 3
(NO/NC/COM left to right *)
2 Relay 1 status LED
3 Relay 2 status LED
4 Relay 3 status LED
5 Test / Error LED
6 e:net LED (Ethernet, LAN activity)
7 Status LED (Device status)
8 Identify button
9 Power supply
(Vcc+, Vcc– left to right)
10 e:net / Ethernet
General device description
