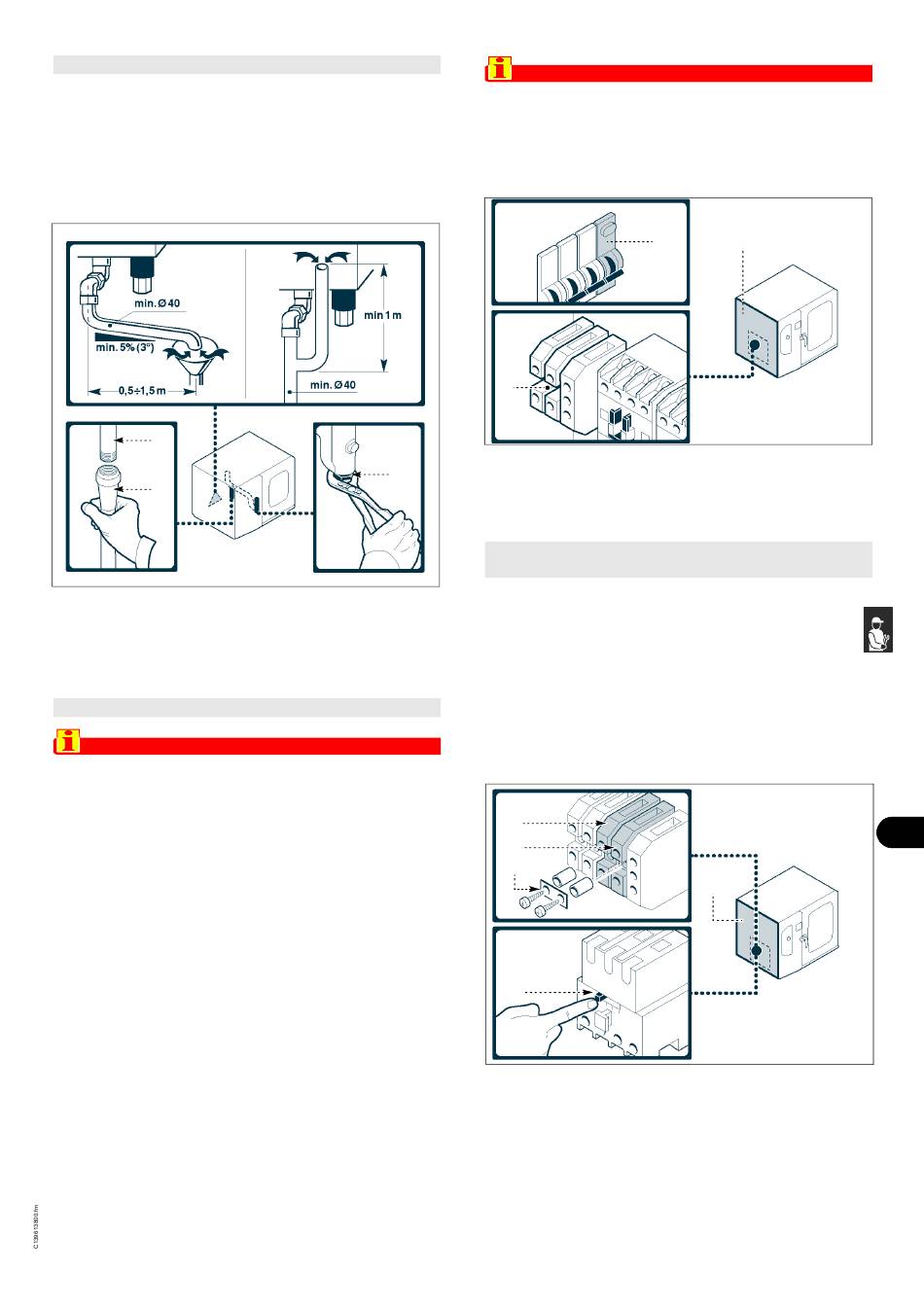

WATER DRAIN CONNECTION

To carry out this operation, proceed as follows.
Connect the mains water pipe (A) to the appliance's connection
pipe (C).
The appliance's drain line is fitted with the plug (B) allowing
discharge of the waste deposited.
C
A

ELECTRICAL CONNECTION

Important
The connection must be made by authorised, skilled
personnel, in accordance with the relevant legal re-
quirements, using appropriate and specified materials.
The appliance is supplied with operating voltage 400V/
3N/PE, which can be switched to 230V/3/PE.
Before doing any work, cut off the mains electricity
supply.
Connect the appliance to the mains electricity supply as follows.
1- If not already present, install an automatic circuit-breaker (M),
close to the appliance, with the following characteristics.
– Thermal breaker device (to adjust see table on page 3)
– Differential breaker set at 30 mA
– Class B or C (IEC 898)
2- Undo the screws and remove the side panel (N).
3- Connect the automatic circuit-breaker (M) to the appliance's
terminal board (P) and to the electrical mains supply, in accord-
ance with the electrical system diagram provided at the back of
the manual and using a cable with the following characteristics.
– Weight: ≥than H05RN-F type (designation 245 IEC 57)
– Temperature of use: ≥70°C.
Important
7/11
When connecting, take care over the connection of
the neutral and earth wires; if they are not connected
correctly, the burner does not light.
4- Replace the panel and retighten the screws when the opera-
tion is complete.
P
B
CONVERSION OF ELECTRICITY
SUPPLY
IDM-39614000500.tif
The appliance is supplied at an operating voltage 400V/3N
(indicated on the sticker applied to the dataplate); conversion
to 230V/3 can be carried out as described below.
To do this proceed as follows.
1- Disconnect the mains electricity supply.
2- Undo the screws to remove the side panel (N).
3- Fit the jumper (Q) to make the electrical connection of the
terminals (R) and (S).
4- Use lever (T) to set the overload cutout to 3A.
R
S
Q
T
