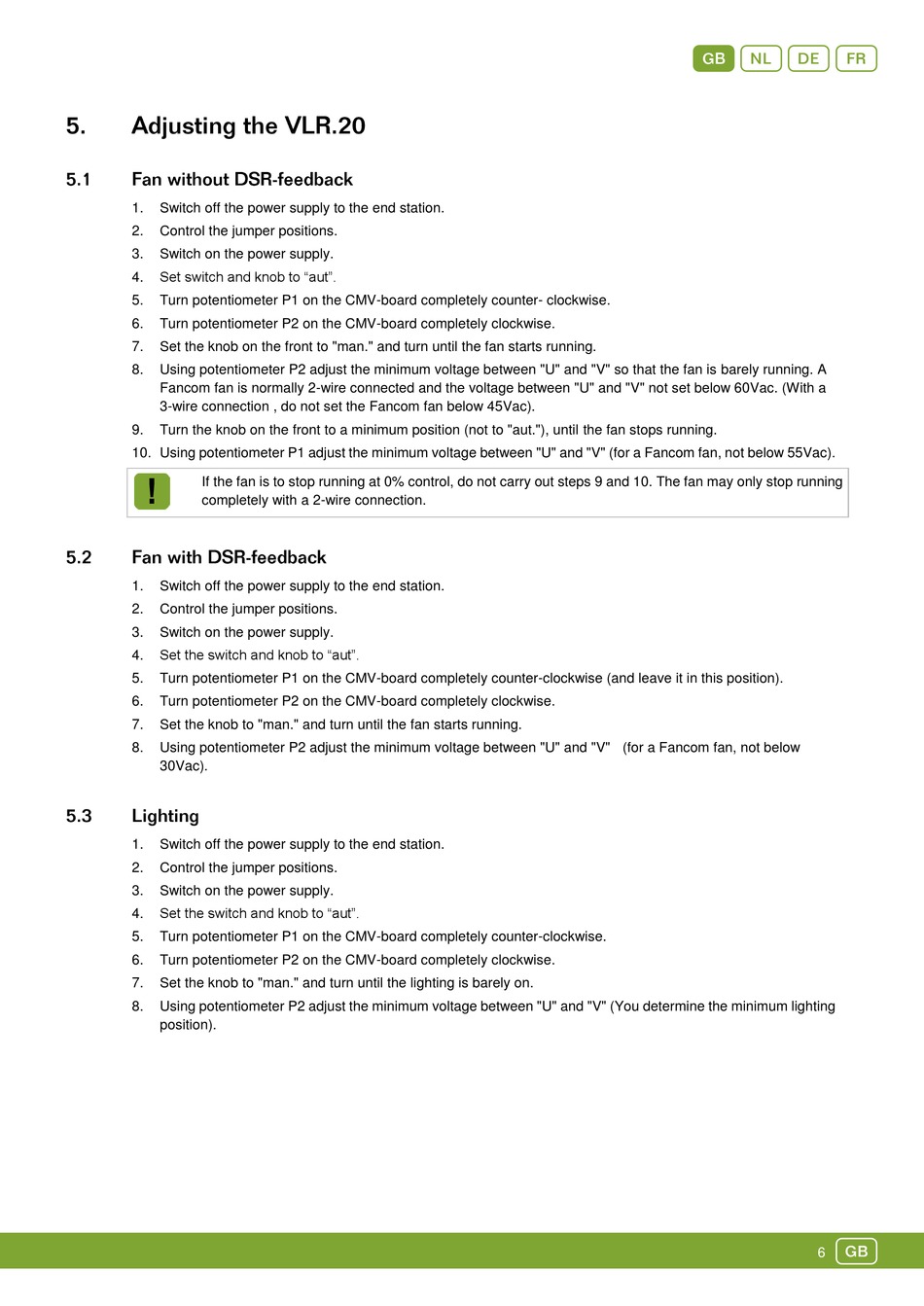

1.
Switch off the power supply to the end station.
2.
Control the jumper positions.
3.
Switch on the power supply.
Set switch and knob to "aut".
4.
5.
Turn potentiometer P1 on the CMV-board completely counter- clockwise.
6.
Turn potentiometer P2 on the CMV-board completely clockwise.
7.
Set the knob on the front to "man." and turn until the fan starts running.
8.
Using potentiometer P2 adjust the minimum voltage between "U" and "V" so that the fan is barely running. A
Fancom fan is normally 2-wire connected and the voltage between "U" and "V" not set below 60Vac. (With a
3-wire connection , do not set the Fancom fan below 45Vac).
9.
Turn the knob on the front to a minimum position (not to "aut."), until the fan stops running.
10. Using potentiometer P1 adjust the minimum voltage between "U" and "V" (for a Fancom fan, not below 55Vac).
If the fan is to stop running at 0% control, do not carry out steps 9 and 10. The fan may only stop running
completely with a 2-wire connection.
1.
Switch off the power supply to the end station.
2.
Control the jumper positions.
3.
Switch on the power supply.
Set the switch and knob to "aut".
4.
5.
Turn potentiometer P1 on the CMV-board completely counter-clockwise (and leave it in this position).
6.
Turn potentiometer P2 on the CMV-board completely clockwise.
7.
Set the knob to "man." and turn until the fan starts running.
8.
Using potentiometer P2 adjust the minimum voltage between "U" and "V" (for a Fancom fan, not below
30Vac).
1.
Switch off the power supply to the end station.
2.
Control the jumper positions.
3.
Switch on the power supply.
Set the switch and knob to "aut".
4.
5.
Turn potentiometer P1 on the CMV-board completely counter-clockwise.
6.
Turn potentiometer P2 on the CMV-board completely clockwise.
7.
Set the knob to "man." and turn until the lighting is barely on.
8.
Using potentiometer P2 adjust the minimum voltage between "U" and "V" (You determine the minimum lighting
position).
