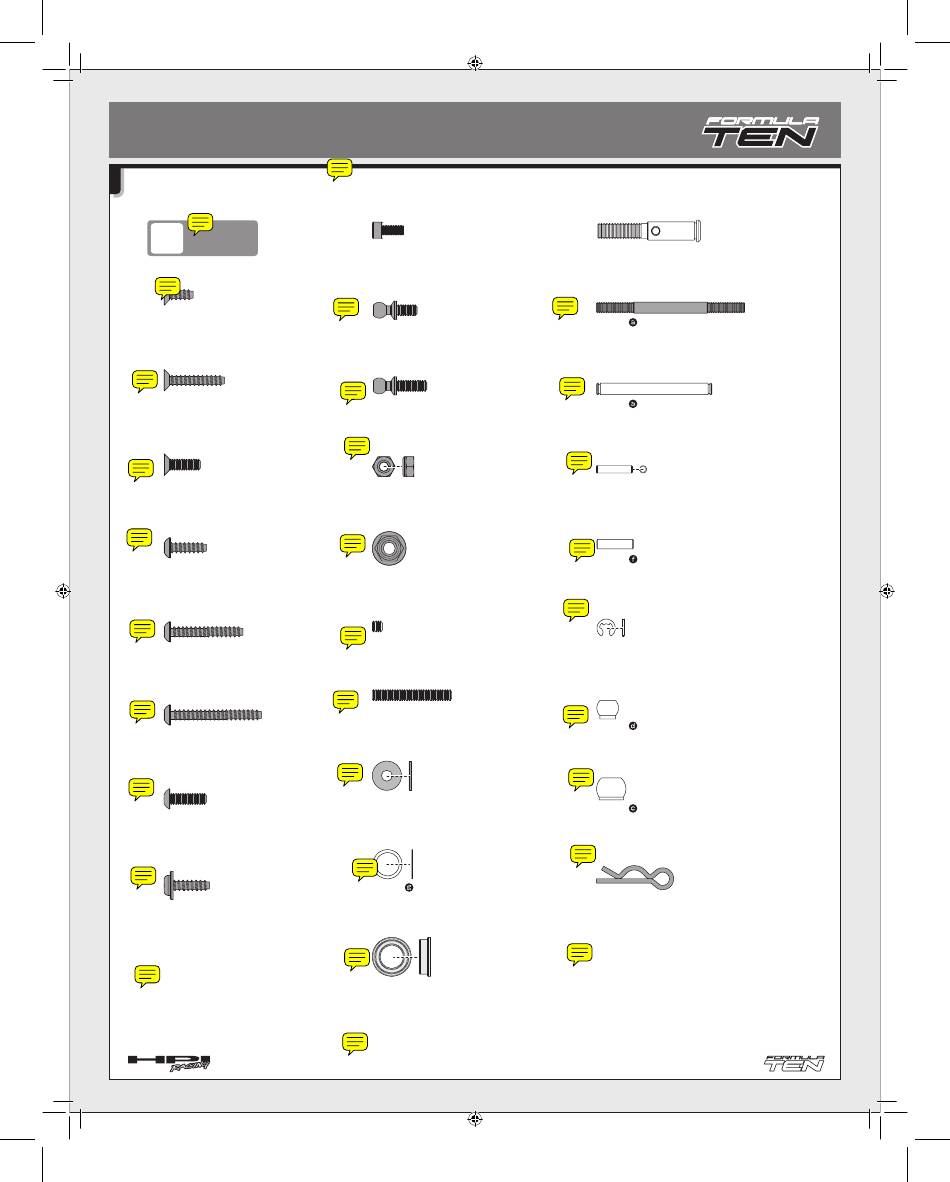

Parts Reference

Übersicht aller Teile
Metal Parts Pièces métalliques
Metall Teile Piezas metálicas
1 1 Shown actual size
:
In Originalgröße abgebildet
Taille réelle
Tamaño real
Z576
TP. Flat Head Screw M3x8mm
Senkkopfschneidschraube M3x8mm
Vis tôle tête fraisée M3x8mm
Tornillo autor. avellanado M3x8mm
Z579
TP. Flat Head Screw M3x15mm
Senkkopfschneidschraube M3x15mm
Vis tôle tête fraisée M3x15mm
Tornillo autor. avellanado M3x15mm
Z527
Flat Head Screw M3x10mm Black
Senkkopfschraube M3x10mm
Vis tête plate M3x10mm Noire
Tornillo avellanado M3x10mm
Z552
TP. Button Head Screw M3x10mm
Flachkopfschneidschraube M3x10mm
Vis TP tête bombée M3x10mm
Tornillo autor. M3x10mm
102847
TP. Button Head Screw M3x20mm
Flachkopfschneidschraube M3x20mm
Vis TP tête ronde M3x20mm
Tornillo autor. M3x20mm
102848
TP. Button Head Screw M3x25mm
Flachkopfschneidschraube M3x25mm
Vis TP tête bombée M3x25mm
Tornillo autor. M3x25mm
102849
Button Head Screw M3x10mm
Inbus-flachkopfschraube M3x10mm
Vis tête bombée M3x10mm
Tornillo cabeza red. M3x10mm
Z561
TP. Flanged Screw M3x10mm
Schneidschraube mit Flansch M3x10mm
Vis TP à collerette M3x10mm
Tornillo autor. M3x10mm
Référence des pièces

Listado de referencias

Z420
Cap Head Screw M2.6x6mm
Inbusschraube M2.6x6 Schwarz
Vis tête cylindrique M2.6x6mm
Tornillo cabeza cilíndrica M2,6x6mm negro
75115
Ball Stud 4.3x10.3mm (2mm Socket)
Kugelkopf 4.3x10.3mm (2mm Inbus)
Rotule sur tige 4.3x10.3mm (douille 2mm)
Rotula con eje 4,3x10,3mm (bola 2mm)
75116
Ball Stud 4.3x13mm (2mm Socket)
Kugelkopf 4.3x13mm (2mm Inbus)
Rotule sur tige 4.3x13mm (douille 2mm)
Rotula con eje 4,3x13mm (bola 2mm)
Z676
Lock Nut M3 Thin Type
Stoppmutter M3 (Flach)
Écrou de blocage M3 (mince)
Tuerca estrecha M4
Z684
Flanged Lock Nut M4
Stoppmutter M4
Écrou de blocage M4
Tuerca autoblocante M4
Z700
Set Screw M3x3mm
Madenschraube M3x3mm
Vis sans tête M3x3mm
Allen M3x22mm
Z710
Set Screw M3x22mm
Madenschraube M3x22mm
Vis sans tête M3x22mm
Vástago M3x22mm
Z224
Washer M3x8mm
Unterlagscheibe M3x8mm
Rondelle M3x8mm noir
Arandela M3x8mm
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
Arandela corona trans.
B010
Ball Bearing 1/4x3/8 In. Flanged
Kugellager Mit Flansch 1/4x3/8 In.
Roulement a bille 1/8 X3/8e de pouce a bride
Rodamiento 1/4x 3/8 inc
7
102833
Front Axle Shaft 5x28mm
Radachse Vorne 5x28mm (formula Ten)
Axe essieu avant 5x28mm
Eje rueda delantera 5x28mm
102820
Shock Parts / Rod End Set
daempferteile/kugelpfannen Set (Formula Ten)
Pièces d'amortisseur/Embout axe
Vástago amortiguador
102834
King Pin 3.1x31.5mm / Suspension Ball Set
King Pin/aufhaengungs-kugel Set (Formula Ten)
Jeu pivot 3.1x31.5mm/ Rotule de suspension
Eje 3,1x31,5mm/Rotula suspensión
Z264
Pin 2x10mm Silver
Stift 2x10mm Silber
Goupille 2x10mm argent
Pasador 2x10mm plata
102822
Spur Gear / Diff Gear Set (75T/87T/48P)
Hauptzahnrad/diff Kegelrad Set (Formula Ten)
Jeu couronne/Pignon diff
Pasador de corona
Z242
E Clip E2mm
E-Clip E2mm Silber
Circlips 2mm
C clip E2
102834
King Pin 3.1x31.5mm / Suspension Ball Set
King Pin/aufhaengungs-kugel Set (Formula Ten)
Jeu pivot 3.1x31.5mm/ Rotule de suspension
Eje3,1x31,5mm/Rotula suspensión
102834
King Pin 3.1x31.5mm / Suspension Ball Set
King Pin/aufhaengungs-kugel Set (Formula Ten)
Jeu pivot 3.1x31.5mm/ Rotule de suspension
Eje3,1x31,5mm/Rotula suspensión
75106
Body Clip (6mm/Black)
Karosserieklammern (6mm/Schwarz)
Clip carr. (6mm/noir)
Clip carrocería (6mm negro)
