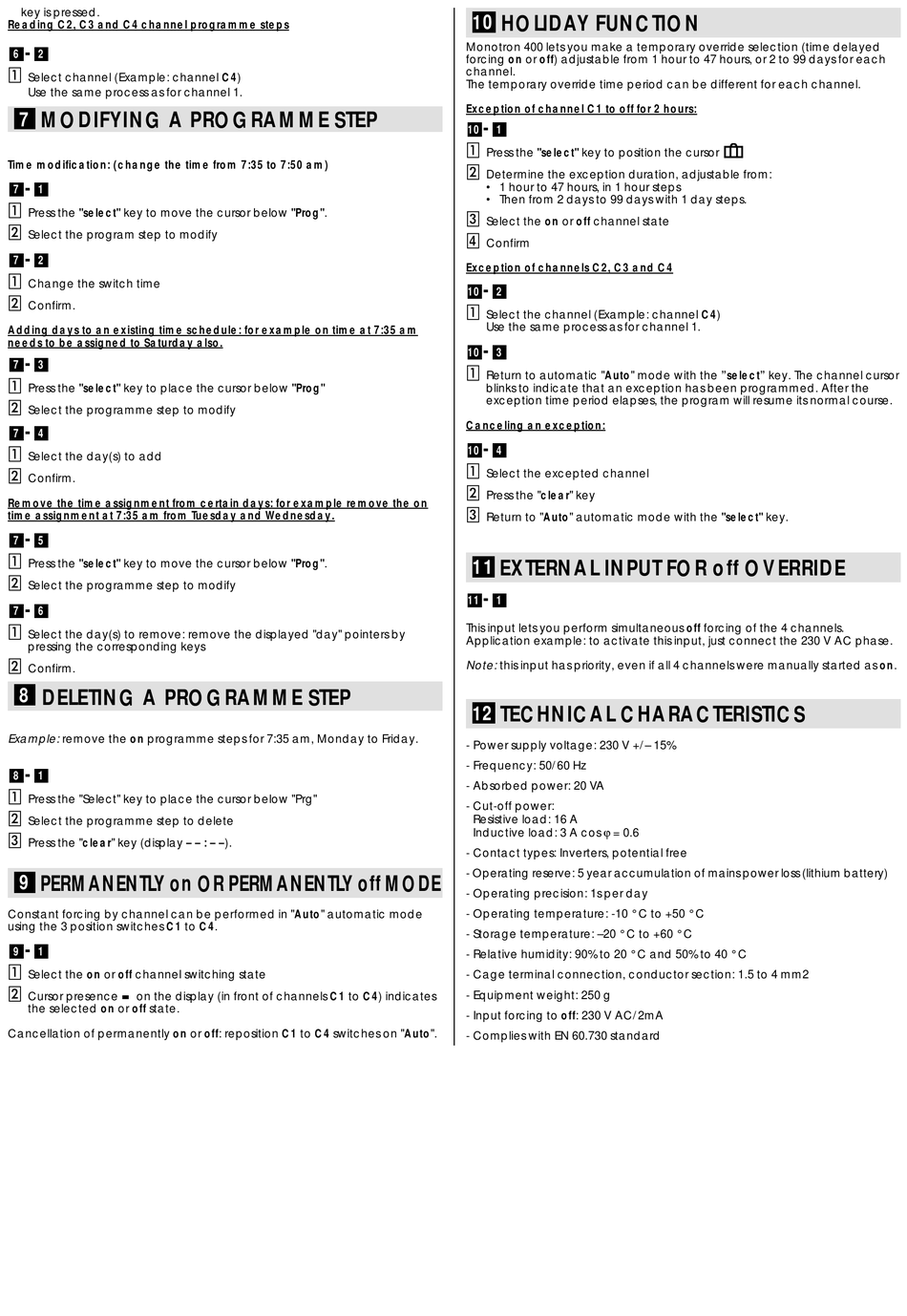

key is pressed.
Reading C2, C3 and C4 channel programme steps
-
6
2
Select channel (Example: channel C4)
Use the same process as for channel 1.
7
MODIFYING A PROGRAMME STEP
Time modification: (change the time from 7:35 to 7:50 am)
-
7
1
Press the "select" key to move the cursor below "Prog".
Select the program step to modify
-
7
2
Change the switch time
Confirm.
Adding days to an existing time schedule: for example on time at 7:35 am
needs to be assigned to Saturday also.
-
7
3
Press the "select" key to place the cursor below "Prog"
Select the programme step to modify
-
7
4
Select the day(s) to add
Confirm.
Remove the time assignment from certain days: for example remove the on
time assignment at 7:35 am from Tuesday and Wednesday.
-
7
5
Press the "select" key to move the cursor below "Prog".
Select the programme step to modify
-
7
6
Select the day(s) to remove: remove the displayed "day" pointers by
pressing the corresponding keys
Confirm.
8
DELETING A PROGRAMME STEP
Example: remove the on programme steps for 7:35 am, Monday to Friday.
-
8
1
Press the "Select" key to place the cursor below "Prg"
Select the programme step to delete
Press the "clear" key (display – – : – –).
9
PERMANENTLY on OR PERMANENTLY off MODE
Constant forcing by channel can be performed in "Auto" automatic mode
using the 3 position switches C1 to C4.
-
9
1
Select the on or off channel switching state
-
Cursor presence
on the display (in front of channels C1 to C4) indicates
the selected on or off state.
Cancellation of permanently on or off: reposition C1 to C4 switches on "Auto".
10
HOLIDAY FUNCTION
Monotron 400 lets you make a temporary override selection (time delayed
forcing on or off) adjustable from 1 hour to 47 hours, or 2 to 99 days for each
channel.
The temporary override time period can be different for each channel.
Exception of channel C1 to off for 2 hours:
-
10
1
Press the "select" key to position the cursor
Determine the exception duration, adjustable from:
• 1 hour to 47 hours, in 1 hour steps
• Then from 2 days to 99 days with 1 day steps.
Select the on or off channel state
Confirm
Exception of channels C2, C3 and C4
-
10
2
Select the channel (Example: channel C4)
Use the same process as for channel 1.
-
10
3
Return to automatic "Auto" mode with the "select" key. The channel cursor
blinks to indicate that an exception has been programmed. After the
exception time period elapses, the program will resume its normal course.
Canceling an exception:
-
10
4
Select the excepted channel
Press the "clear" key
Return to "Auto" automatic mode with the "select" key.
11
EXTERNAL INPUT FOR off OVERRIDE
-
11
1
This input lets you perform simultaneous off forcing of the 4 channels.
Application example: to activate this input, just connect the 230 V AC phase.
Note: this input has priority, even if all 4 channels were manually started as on.
12
TECHNICAL CHARACTERISTICS
- Power supply voltage: 230 V +/– 15%
- Frequency: 50/60 Hz
- Absorbed power: 20 VA
- Cut-off power:
Resistive load: 16 A
Inductive load: 3 A cos ϕ = 0.6
- Contact types: Inverters, potential free
- Operating reserve: 5 year accumulation of mains power loss (lithium battery)
- Operating precision: 1s per day
- Operating temperature: -10 ° C to +50 ° C
- Storage temperature: –20 ° C to +60 ° C
- Relative humidity: 90% to 20 ° C and 50% to 40 ° C
- Cage terminal connection, conductor section: 1.5 to 4 mm2
- Equipment weight: 250 g
- Input forcing to off: 230 V AC/2mA
- Complies with EN 60.730 standard
