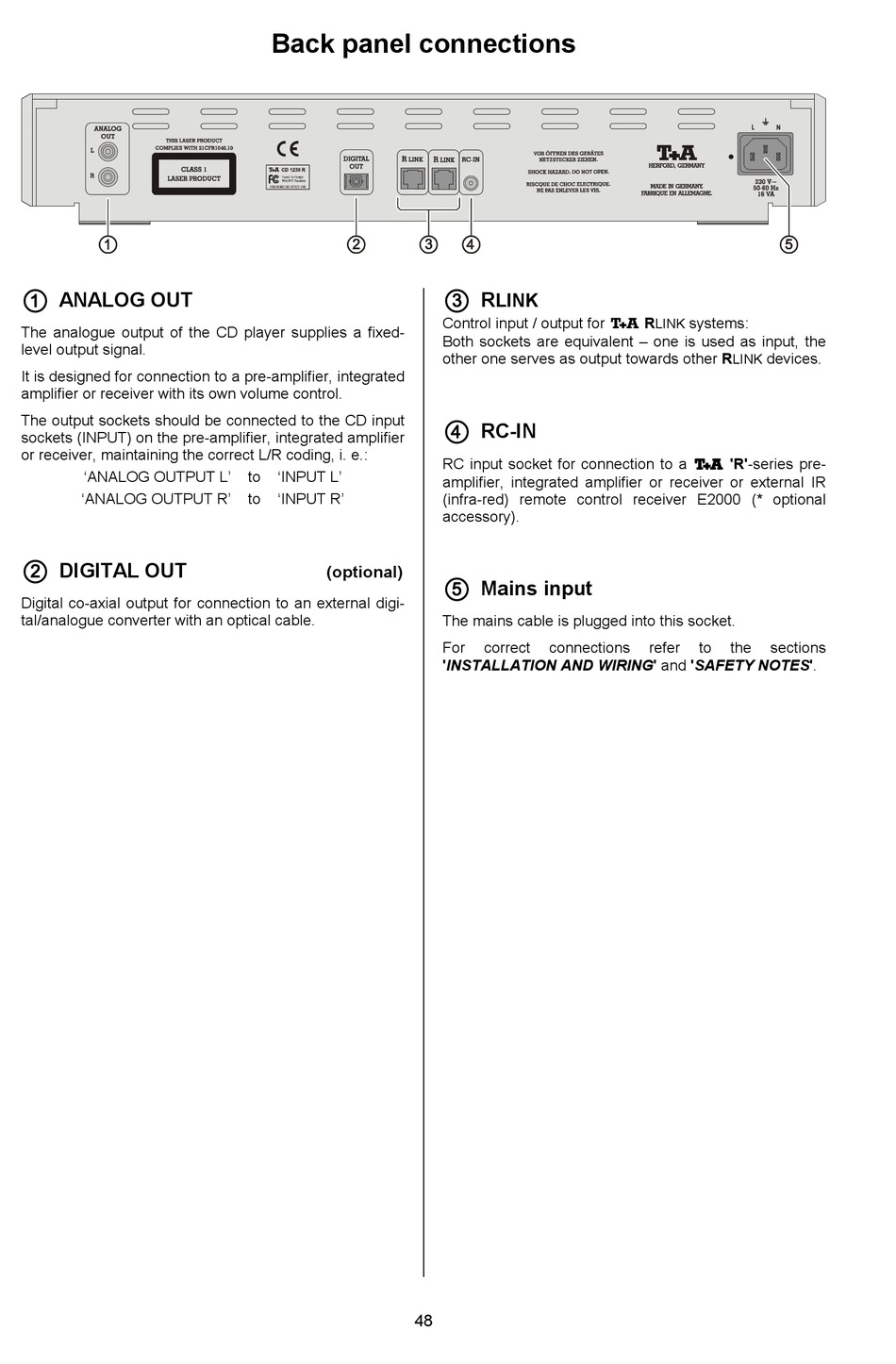

Back Panel Connections; Mains Input - T+A CD 1230 R Betriebsanleitung

   
ANALOG OUT
The analogue output of the CD player supplies a fixed-
level output signal.
It is designed for connection to a pre-amplifier, integrated
amplifier or receiver with its own volume control.
The output sockets should be connected to the CD input
sockets (INPUT) on the pre-amplifier, integrated amplifier
or receiver, maintaining the correct L/R coding, i. e.:
'ANALOG OUTPUT L'
'ANALOG OUTPUT R'
 
 
DIGITAL OUT
Digital co-axial output for connection to an external digi-
tal/analogue converter with an optical cable.

Back panel connections

to 'INPUT L'
to 'INPUT R'
(optional)
48
   
R
LINK
Control input / output for  R
Both sockets are equivalent – one is used as input, the
other one serves as output towards other R
 
 
RC-IN
RC input socket for connection to a 
amplifier, integrated amplifier or receiver or external IR
(infra-red) remote control receiver E2000 (* optional
accessory).
   

Mains input

The mains cable is plugged into this socket.
For correct connections
'INSTALLATION AND WIRING' and 'SAFETY NOTES'.
systems:
LINK
devices.
LINK
 'R'-series pre-
 
refer to the sections
