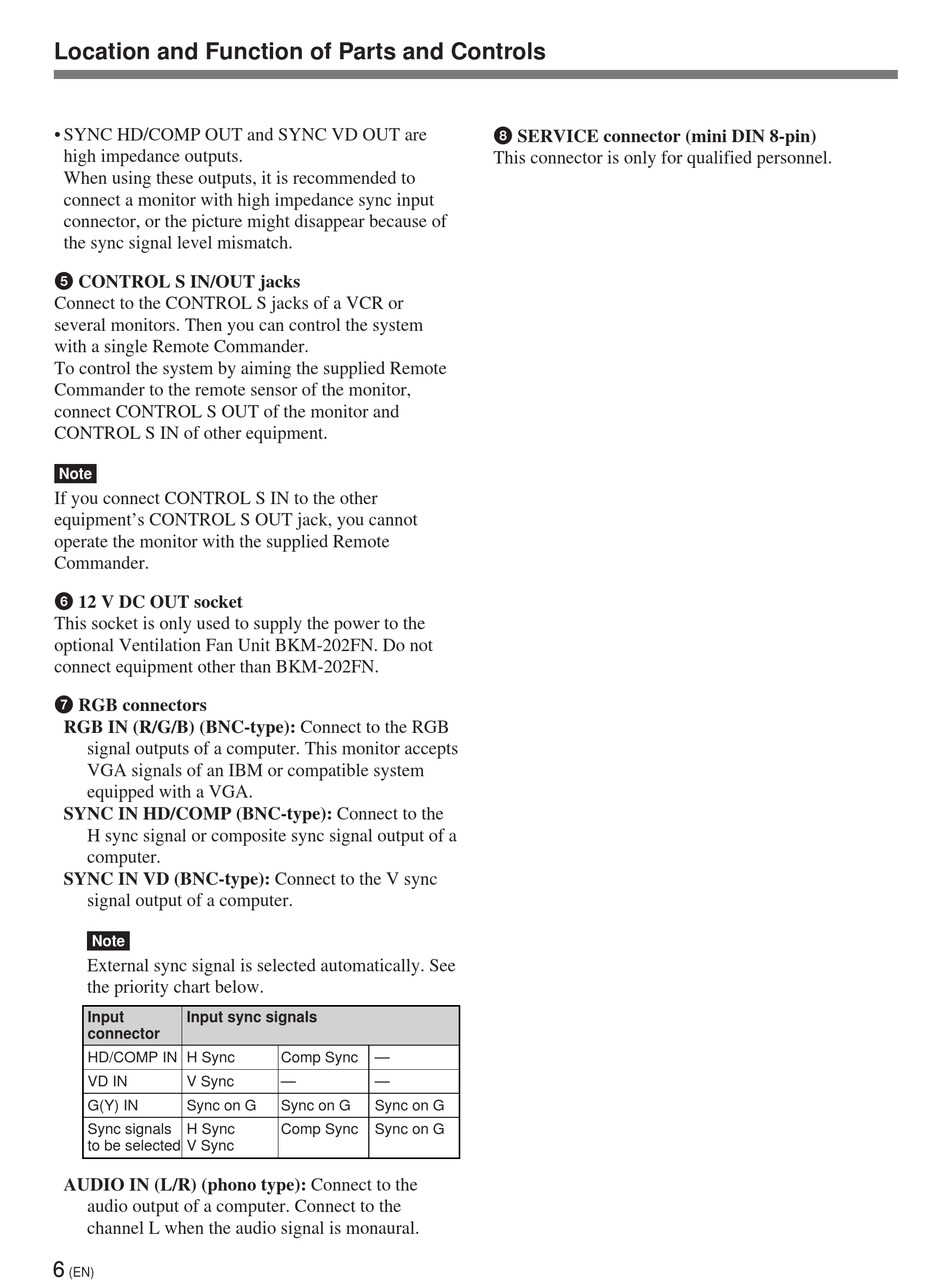

Location and Function of Parts and Controls
• SYNC HD/COMP OUT and SYNC VD OUT are
high impedance outputs.
When using these outputs, it is recommended to
connect a monitor with high impedance sync input
connector, or the picture might disappear because of
the sync signal level mismatch.
5 CONTROL S IN/OUT jacks
Connect to the CONTROL S jacks of a VCR or
several monitors. Then you can control the system
with a single Remote Commander.
To control the system by aiming the supplied Remote
Commander to the remote sensor of the monitor,
connect CONTROL S OUT of the monitor and
CONTROL S IN of other equipment.
Note
If you connect CONTROL S IN to the other
equipment's CONTROL S OUT jack, you cannot
operate the monitor with the supplied Remote
Commander.
6 12 V DC OUT socket
This socket is only used to supply the power to the
optional Ventilation Fan Unit BKM-202FN. Do not
connect equipment other than BKM-202FN.
7 RGB connectors
RGB IN (R/G/B) (BNC-type): Connect to the RGB
signal outputs of a computer. This monitor accepts
VGA signals of an IBM or compatible system
equipped with a VGA.
SYNC IN HD/COMP (BNC-type): Connect to the
H sync signal or composite sync signal output of a
computer.
SYNC IN VD (BNC-type): Connect to the V sync
signal output of a computer.
Note
External sync signal is selected automatically. See
the priority chart below.
Input Input sync signals
connector
HD/COMP IN H Sync
VD IN V Sync
G(Y) IN Sync on G
Sync signals H Sync
to be selected V Sync
AUDIO IN (L/R) (phono type): Connect to the
audio output of a computer. Connect to the
channel L when the audio signal is monaural.
6 6
(EN)
Comp Sync —
— —
Sync on G Sync on G
Comp Sync Sync on G
8 SERVICE connector (mini DIN 8-pin)
This connector is only for qualified personnel.
