The Ultimaker S5 and Air Manager must be positioned out of direct sunlight when
in use. Ensure there is at least 10 cm of free space at the back of the Air Manager for
unrestricted airflow.

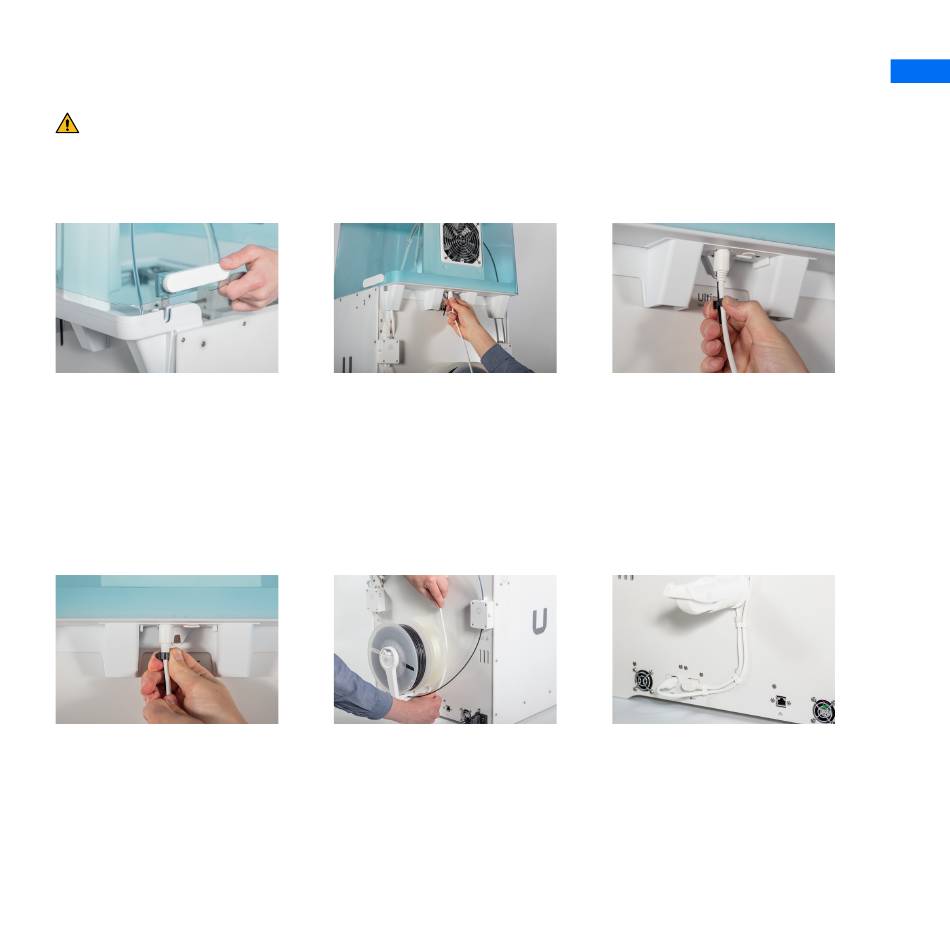

7. Align the hinges with
the mounting bracket
and drop the cover
into place
10. Slide the stress relief
clip upwards until it
cannot go further to
secure the cable in place
8. Connect the Air
Manager cable to the
port at the back of the
Air Manager
11. Guide the Air Manager
cable on the right side
around the spool holder
and plug it into the
UMB OUT port at the
back of the Ultimaker S5
9. Place the stress relief
clip attached to the
mounting bracket
around the Air Manager
cable and close it
12. Use the cable clips
to connect the Air
Manager cable to
the NFC cable of the
Ultimaker S5
EN
