GB
Remote control FB02
Type:
Power supply:
Additional remote controls (FB02) are obtainable.

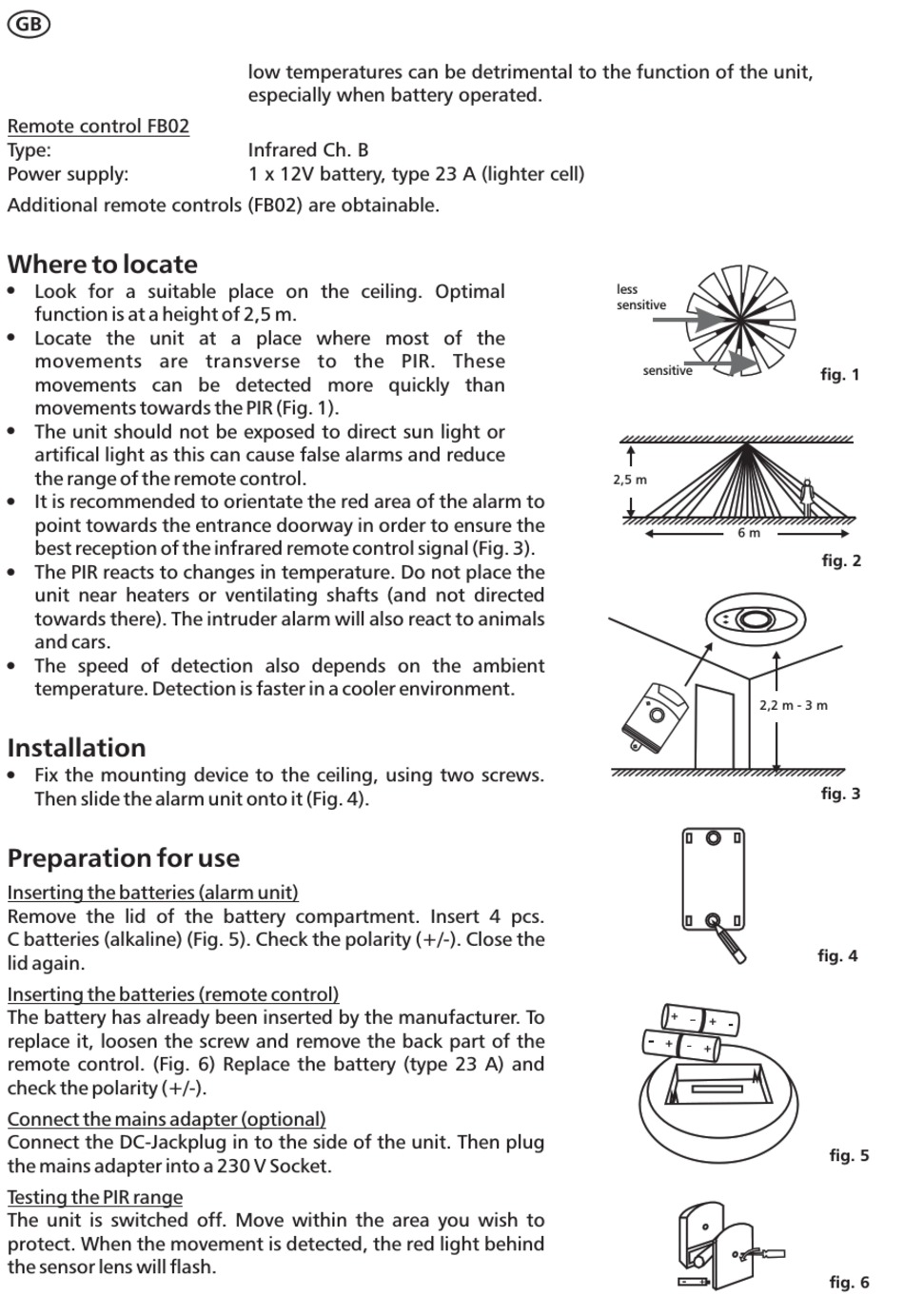

Where to locate

!
Look for a suitable place on the ceiling. Optimal
function is at a height of 2,5 m.
!
Locate the unit at a place where most of the
movements are transverse to the PIR. These
movements can be detected more quickly than
movements towards the PIR (Fig. 1).
!
The unit should not be exposed to direct sun light or
artifical light as this can cause false alarms and reduce
the range of the remote control.
!
It is recommended to orientate the red area of the alarm to
point towards the entrance doorway in order to ensure the
best reception of the infrared remote control signal (Fig. 3).
!
The PIR reacts to changes in temperature. Do not place the
unit near heaters or ventilating shafts (and not directed
towards there). The intruder alarm will also react to animals
and cars.
!
The speed of detection also depends on the ambient
temperature. Detection is faster in a cooler environment.
Installation
!
Fix the mounting device to the ceiling, using two screws.
Then slide the alarm unit onto it (Fig. 4).

Preparation for use

Inserting the batteries (alarm unit)
Remove the lid of the battery compartment. Insert 4 pcs.
C batteries (alkaline) (Fig. 5). Check the polarity (+/-). Close the
lid again.
Inserting the batteries (remote control)
The battery has already been inserted by the manufacturer. To
replace it, loosen the screw and remove the back part of the
remote control. (Fig. 6) Replace the battery (type 23 A) and
check the polarity (+/-).
Connect the mains adapter (optional)
Connect the DC-Jackplug in to the side of the unit. Then plug
the mains adapter into a 230 V Socket.
Testing the PIR range
The unit is switched off. Move within the area you wish to
protect. When the movement is detected, the red light behind
the sensor lens will flash.
low temperatures can be detrimental to the function of the unit,
especially when battery operated.
Infrared Ch. B
1 x 12V battery, type 23 A (lighter cell)
less
sensitive
sensitive
2,5 m
6 m
2,2 m - 3 m
+
+
fig. 1
fig. 2
fig. 3
fig. 4
fig. 5
fig. 6
